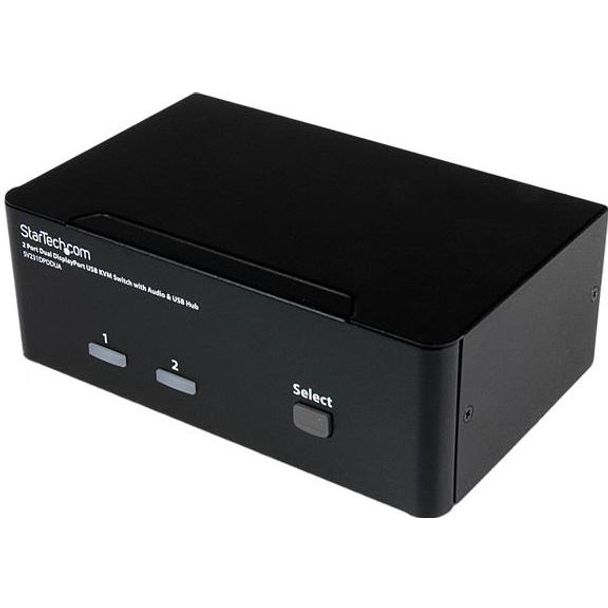

StarTech SV231DPDDUA 2 Port Dual DisplayPort USB KVM Switch

Model
SV231DPDDUA
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$569.00
StarTech SV231DPDDUA 2 Port Dual DisplayPort USB KVM Switch

The SV231DPDDUA 2-Port USB Dual DisplayPort KVM Switch with Audio and USB 2.0 Hub combines next generation digital display standards with seamless KVM control, allowing you to switch between 2 dual head or twin DisplayPort systems. Also ideal for systems with a single DisplayPort output, and a second video source such as DVI or HDMI, using a low cost accessory adapter.

Delivering multi-computer control for high-res multimedia applications, the dual view KVM supports resolutions of 2560x1600 (@60 Hz) with DisplayPort HD audio, as well as 2-channel analog stereo audio and microphone input.

Suitable for high quality static imaging, such as medical applications (MRI, X-ray, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

SV231DPDDUA Application Diagram

DisplayPort HDMI Comparison

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Applications

  • Multimedia design, multimedia post-production and video editing using Mac or PC computers
  • High resolution medical imaging and Health care display, such as MRI and Xray display
  • Stock trading stations with dual displays


Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio Yes
  Cables Included No
  Daisy-Chain No
  KVM Ports 2
  Number of Monitors Supported 2
  PC Interface USB
  PC Video Type DisplayPort
  Rack-Mountable No
PERFORMANCE
  DVI Support Yes - Dual Link
  Hot-Key Selection Yes
  IP Control No
  Maximum Digital Resolutions WQXGA - 2560 x 1600
  Maximum Number of Users 1
  MTBF 138000 hours
  On-Screen Display No
  Port Selection Support Push Button and Hotkeys
  Wide Screen Supported Yes
CONNECTOR(S)
  Console Interface(s) 2 - 3.5 mm Mini-Jack (3 Position) Female
    2 - DisplayPort (20 pin) Female
    4 - USB Type-A (4 pin) USB 2.0 Female
  Host Connectors 2 - USB B (4 pin) Female
    4 - 3.5 mm Mini-Jack (3 Position) Female
    4 - DisplayPort (20 pin) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 2 - Green - On-Line
    2 - Red - Selected PC
POWER
  Center Tip Polarity Positive
  Input Current 0.8A
  Input Voltage 110V-240V AC
  Output Current 1.5A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 18
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0~80% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature 20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Depth 3.9 in [100 mm]
  Product Height 2.3 in [57.5 mm]
  Product Weight 25.9 oz [734 g]
  Product Width 6.3 in [161 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 2.6 lb [1.2 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 2-port dual display DisplayPort KVM
    1 - universal power adapter (NA/EU/UK/AU)
    1 - instruction manual
