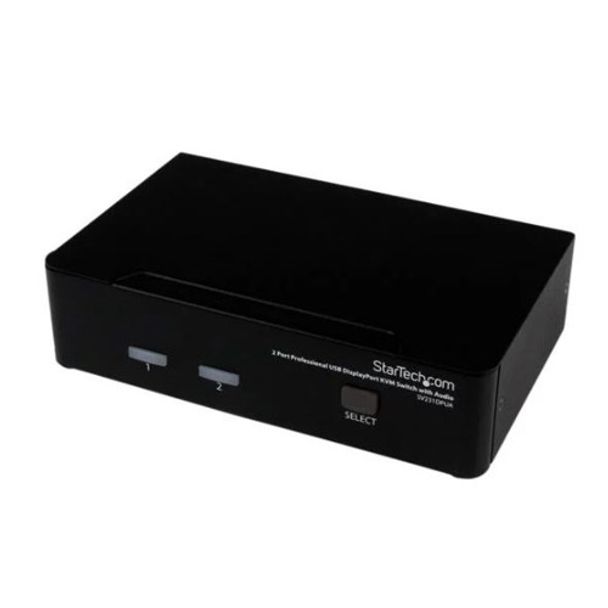

StarTech SV231DPUA 2 Port USB DisplayPort KVM Switch

Model
SV231DPUA
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$469.00
2 Port Professional USB DisplayPort KVM Switch with Audio

The SV231DPUA 2-Port USB DisplayPort KVM Switch delivers dual computer KVM control, for demanding high definition multimedia applications. Supporting DisplayPort connections with a native resolution of 2560 x 1600, and support for both 7.1 HD digital audio (when connected to supporting displays and sources) and 3.5mm stereo analog audio/mic.

A simple, yet comprehensive KVM solution, the 2-port switch features both front-panel push-buttons and hotkey switching, and offers a small form factor design with connection ports situated on the rear panel. A Plug-and-Play USB 2.0 hub port allows you to share an additional USB peripheral between the 2 connected computers, avoiding the expense of purchasing duplicate peripheral devices.

A suitable solution for medical applications (MRI, X-ray diagnostics etc.), the KVM switch supports a maximum resolution of 3840 x 2400 at a reduced refresh rate.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Applications

  • Multimedia design, multimedia post-production and video editing using Mac or PC computers
  • High resolution medical imaging and Health care display, such as MRI and Xray display
  • Manufacturing line computer control
  • PC test/burn-in computer control
  • High-res Digital Signage server control
  • Satellite Topography
  • Dual system control for a single work terminal



Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio Yes
  Cables Included No
  Daisy-Chain No
  KVM Ports 2
  Number of Monitors Supported 1
  PC Interface USB
  PC Video Type DisplayPort
  Rack-Mountable No
PERFORMANCE
  DVI Support No
  Hot-Key Selection Yes
  IP Control No
  Maximum Digital Resolutions 2560 x 1600 @ 60Hz
  Maximum Number of Users 1
  MTBF 127000 hours
  On-Screen Display No
  Port Selection Support Push Button and Hotkeys
  Wide Screen Supported Yes
CONNECTOR(S)
  Console Interface(s) 1 - DisplayPort (20 pin) Female
    2 - 3.5 mm Mini-Jack (3 Position) Female
    4 - USB Type-A (4 pin) USB 2.0 Female
  Host Connectors 2 - DisplayPort (20 pin) Female
    2 - USB B (4 pin) Female
    4 - 3.5 mm Mini-Jack (3 Position) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 2 - Green - Online indicator (One LED per port)
    2 - Red - Select indicator (One LED per port)
POWER
  Center Tip Polarity Positive
  Input Current 0.8A
  Input Voltage 110V-240V AC
  Output Current 2A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 24
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0~80% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Depth 5.1 in [130 mm]
  Product Height 1.7 in [44 mm]
  Product Weight 38.8 oz [1100 g]
  Product Width 8.7 in [220 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 2.9 lb [1.3 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 2-port DisplayPort KVM switch
    4 - foot pads
    1 - universal power adapter (NA/UK/EU/AU)
    1 - instruction manual
More Information
GTIN065030839952
