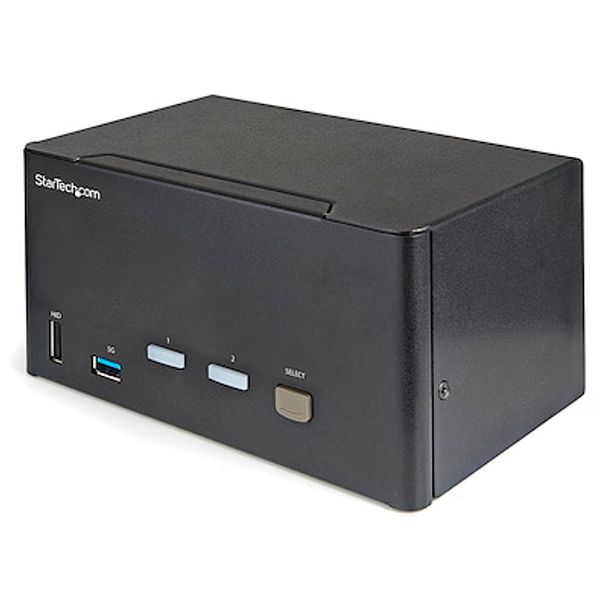

StarTech SV231TDPU34K 2-Port Triple Monitor DisplayPort KVM Switch

This 2-port KVM switch combines 4K (60Hz) digital display capabilities with control of two connected computers.

4K 60Hz Picture and Full Audio Support

The DisplayPort KVM switch supports resolutions up to 4K at 60Hz. It drives three large monitors at the full 4K resolution. Includes USB emulation for faster switching times to avoid disrupting your workflow. With support for digital audio (with supporting displays and sources) and separate 3.5 mm stereo audio, the DisplayPort 1.2 KVM switch delivers full audio compatibility.

Integrated USB Hub

The integrated USB 3.0 hub shares two peripherals (in addition to keyboard and mouse) among attached computers as if they were directly connected to your host computer, eliminating the cost of duplicate devices such as printers and scanners.

Windows, Mac & Linux Compatible

While supporting Windows, this DP KVM switch is also compatible with Mac and Linux operating systems.

Easy to Operate

The front-panel pushbuttons make it easy to switch between systems and activate the auto-scan feature. The hotkey functionality makes accessing each system quickly, while a buzzer sound confirms the switch.



Specifications

Warranty Information
Warranty
2 Years

Connector(s)
Console Interface(s)
3 - 20 pin DisplayPort Female

2 - 9 pin USB 3.0 A Female

4 - USB Type-A (4 pin; HID Port) USB 1.1

1 - 3.5 mm Audio Female
Host Connectors
6 - 20 pin DisplayPort Female

2 - 9 pin USB 3.0 B Female

2 - 3.5mm Audio (4-Position, Speakers + Mic, CTIA)

Environmental
Operating Temperature
0?~40?
Storage Temperature
-10?~60?
Humidity
0%~80%

Hardware
Audio
Yes
Cables Included
No
Daisy-Chain
No
Number of Monitors Supported
3
KVM Ports
2
PC Interface
USB 3.2 Gen 1 (5Gbps)
PC Video Type
DisplayPort
Chipset ID
Genesys Logic - GL3523

Indicators
LED Indicators
2 - Green (Power/Sync)

2 - Red (Selected Host)

Packaging Information
Package Height
3.6 in [9.1 cm]
Package Length
7.4 in [18.9 cm]
Shipping (Package) Weight
3.2 lb [1.4 kg]
Package Width
9.4 in [23.8 cm]
Package Quantity
1

Performance
Auto Scan
3, 8, 15 & 30 seconds
MTBF
156 000 hrs
Port Selection Support
Push Button and Hotkeys
On-Screen Display
No
Video Revision
DisplayPort 1.2
IP Control
No
Hot-Key Selection
Yes
Wide Screen Supported
Yes
Audio Specifications
DisplayPort - 5.1 Channel Audio

DisplayPort - 2 Channel Audio

Analog Stereo - 2 Channel Audio

Physical Characteristics
Color
Black
Product Height
2.9 in [7.5 cm]
Product Length
6.3 in [16.0 cm]
Weight of Product
1.9 lb [0.9 kg]
Product Width
4.7 in [12.0 cm]
Material
Steel

Power
Power Source
AC Adapter Included
Input Voltage
100 - 240 AC
Input Current
1.0A
Output Voltage
12V DC
Output Current
3A
Center Tip Polarity
Positive
Plug Type
M
Power Consumption (In Watts)
36W

What's in the Box
Included in Package
1 - KVM Switch

1 - Universal Power Adapter (NA/JP, EU, UK, NZ)

4 - Rubber Feet

1 - Quick-Start Guide
More Information
GTIN065030881784
