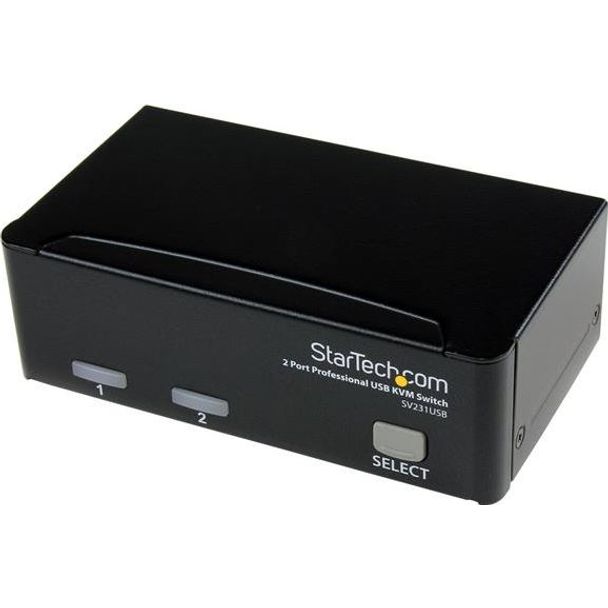

StarTech SV231USB 2 PORT USB KVM SWITCH KIT WITH CableS

Model
SV231USB
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$146.90
2 PORT PROFESSIONAL USB KVM SWITCH KIT WITH CABLES

The SV231SUB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).

The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.

A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Applications

  • Dual system control for a single workstations increasing user productivity in the office
  • Provide centralized control for multiple high-res Digital Signage server control
  • Great for manufacturing line computer control, simplifying access to multiple systems
  • Perfect for PC test/burn-in computer control saving the desk space required for two monitors, keyboards and mice


Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio No
  Cables Included Yes
  Daisy-Chain No
  KVM Ports 2
  Number of Monitors Supported 1
  PC Interface USB
  PC Video Type VGA
  Rack-Mountable No
  U Height 1U
PERFORMANCE
  Auto Scan 3, 8, 15 & 30 seconds
  DVI Support No
  Hot-Key Selection No
  IP Control No
  Maximum Analog Resolutions 1920 x 1440
  Maximum Cable Length 15 ft [4.6 m]
  Maximum Number of Users 1
  MTBF 111,000 Hours
  On-Screen Display No
  Port Selection Support Push Button
CONNECTOR(S)
  Console Interface(s) 1 - VGA (15 pin, High Density D-Sub) Female
    3 - USB Type-A (4 pin) USB 2.0 Female
  Host Connectors 2 - USB B (4 pin) Female
    2 - VGA (15 pin, High Density D-Sub) Male
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
  Note This KVM supports the use of VGA cables up to 100ft in length - active extension required for USB to achieve that distance
POWER
  Center Tip Polarity Positive
  Input Current 0.4A
  Input Voltage 110V-240V AC
  Output Current 2A
  Output Voltage 5 DC
  Plug Type N
  Power Consumption (In Watts) 10
  Power Source AC Adapter Included
PHYSICAL CHARACTERISTICS
  Cable Length 6 ft [1.8 m]
  Color Black
  Enclosure Type Steel
  Product Height 1.6 in [40 mm]
  Product Length 4.9 in [124 mm]
  Product Weight 14.9 oz [421 g]
  Product Width 2.8 in [70 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 2.5 lb [1.1 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 2 Port USB KVM Switch
    2 - 2 IN 1 USB/VGA Cables
    1 - Power Adapter
    1 - Manual
