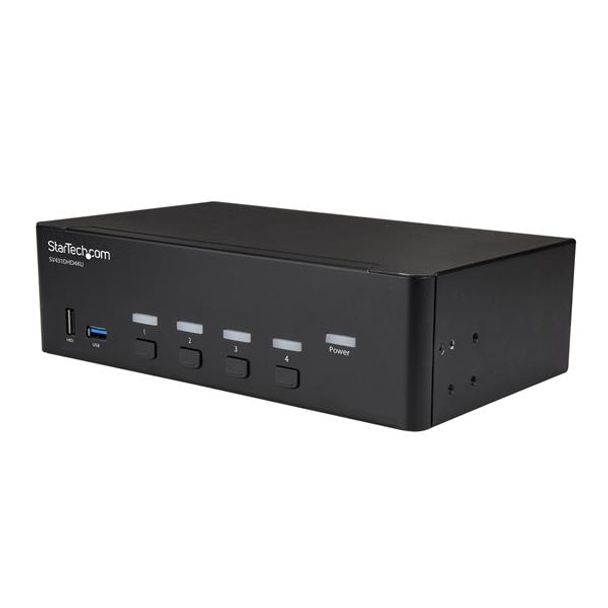

StarTech SV431DHD4KU KVM Switch - Dual Display 4K 30Hz

Model
SV431DHD4KU
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$1,174.90
StarTech SV431DHD4KU KVM Switch - Dual Display 4K 30Hz

This 4-port HDMI KVM switch lets you control four HDMI computers with a single mouse, keyboard and monitor up to 4K 30Hz. The KVM also features 3.5 mm audio and a built-in 2-port USB 3.0 hub.

4K at 30Hz UHD dual display

With support for ultra-high-definition 4K 30Hz resolutions, this 4-port KVM switch can drive dual HDMI displays with crystal clarity, making it ideal for graphical applications that require UHD capability.

Convenient and cost-effective USB 3.0 peripheral sharing

This 4-port KVM switch offers two USB 3.0 ports, as well as four HID keyboard and mouse ports, so you can share peripheral devices between each computer and avoid the cost of separate equipment. The USB 3.0 hub automatically switches your connected devices to the selected computer, saving you the hassle of disconnecting and reconnecting peripherals.

Complete multimedia capability

Along with dual UHD video capability, this KVM switch features auxiliary 3.5 mm dual-channel bi-directional audio ports. This independent analog audio lets you share your analog audio devices such as speakers or a microphone between each of your connected computers, giving you complete multimedia control of your systems.

The SV431DHD4KU is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.



Applications

  • Ideal for applications that require two displays at high resolutions such as graphic design, medical imaging, digital signage, multimedia design across four computers
  • Great for those who need to share high-speed storage between up to four systems
  • Perfect for creative professional applications such as video and sound design or editing



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio Yes
  KVM Ports 4
  Number of Monitors Supported 2
  PC Interface USB
  PC Video Type HDMI
  Rack-Mountable Yes
PERFORMANCE
  Auto Scan 3, 8, 15 & 30 seconds
  Hot-Key Selection Yes
  IP Control No
  Maximum Data Transfer Rate 5Gbps
  Maximum Digital Resolutions 3840 x2160 @ 30Hz
  MTBF 168000 hours
  Port Selection Support Push Button and Hotkeys
  Wide Screen Supported Yes
CONNECTOR(S)
  Console Interface(s) 2 - HDMI
    4 - USB Type-A (4 pin; HID Port) USB 1.1
    2 - USB 3.1 USB Type-A (9 pin, Gen 1, 5 Gbps)
    1 - 3.5mm Stereo Female 3 pos
  Host Connectors 8 - HDMI
    4 - USB 3.1 USB Type-B (9 pin, Gen 1, 5 Gbps)
    4 - 3.5mm Stereo Female 3 pos
INDICATORS
  LED Indicators 4 - LED for Source Status and Selected PC
    1 - power LED
POWER
  Center Tip Polarity Positive
  Input Current 0.6 A
  Input Voltage 100 ~ 240 AC
  Output Current 1.5 A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 18W
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0%~80%
  Operating Temperature 0°C~40°C
  Storage Temperature -10°C~60°C
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Height 2.5 in [63 mm]
  Product Length 8.7 in [220 mm]
  Product Weight 2.7 lb [1.2 kg]
  Product Width 5.1 in [130 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 4 lb [1.8 kg]
WHAT'S IN THE BOX
  Included in Package 1 - KVM Switch
    1 - quick-start guide
    4 - rubber feet
    1 - universal power adapter (NA/JP, UK, EU, ANZ)
More Information
GTIN065030840095
