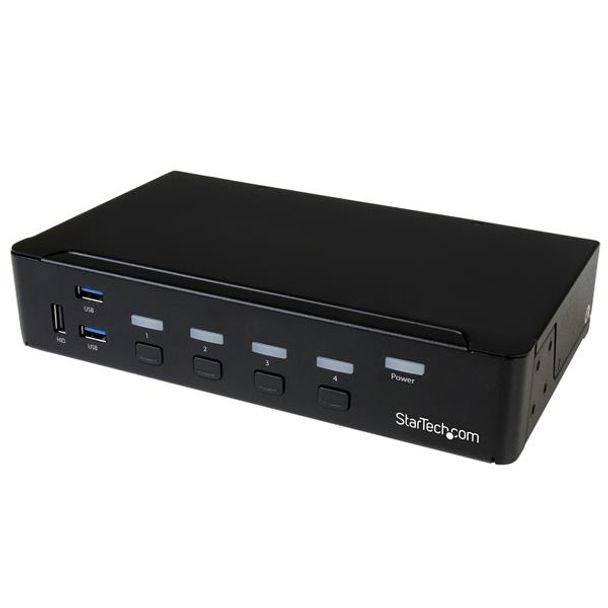

StarTech SV431DPU3A2 4-Port DisplayPort KVM - USB 3.0 - 4K

Model
SV431DPU3A2
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$889.30
4-Port DisplayPort KVM Switch - Built-in USB 3.0 Hub for Peripheral Devices - 4K - Control four DP computers using a single console with aUSB hub for sharing peripherals

This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of  disconnecting and reconnecting your peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431DPU3A2 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Applications

  • Control four DisplayPort USB computers with a single set of console peripherals (keyboard, mouse and monitor)
  • Perform Ultra HD multimedia applications such as graphic design or CAD and CAM creations
  • Share USB 3.0 peripherals between four computers



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio Yes
  Cables Included No
  Daisy-Chain No
  Industry Standards HDCP 2.2
  KVM Ports 4
  Number of Monitors Supported 1
  PC Interface USB 3.0
  PC Video Type DisplayPort
  Rack-Mountable Optional
PERFORMANCE
  Audio Specifications 2-Channel Stereo supported
  Hot-Key Selection Yes
  IP Control No
  Maximum Cable Length 32.8 ft [10 m]
  Maximum Digital Resolutions 3840x2160 @ 30 Hz
  MTBF 143000 hours
  On-Screen Display No
  Port Selection Support Push Button and Hotkeys
  Supported Resolutions 1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
1920x1200
2560x1440
2560x1600
3840x2160 (Ultra HD 4K)
  Wide Screen Supported Yes
CONNECTOR(S)
  Console Interface(s) 1 - DisplayPort (20 pin) Female Output
    1 - 3.5 mm Mini-Jack (3 Position) Female Output
    4 - USB Type-A (9 pin) USB 3.0 Female
  Host Connectors 4 - DisplayPort (20 pin) Female Input
    4 - USB Type-B (9 pin) USB 3.0 Female
    4 - 3.5 mm Mini-Jack (3 Position) Female Input
  Other Interface(s) 3 - USB Type-A (9 pin) USB 3.0 Female
SPECIAL NOTES / REQUIREMENTS
  Note About video adapters
If you use a video adapter with this KVM switch, you must use an active video adapter. If you use a passive video adapter, you might encounter performance issues.
Check with the manufacturer to determine if the video adapter that you want to use is an active adapter.
INDICATORS
  LED Indicators 4 - port selection/link LEDs
    1 - power LED
POWER
  Input Voltage 100 ~ 240 AC
  Output Current 1.5 A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 18
ENVIRONMENTAL
  Humidity 0~80% RH Non-Condensing
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS
  Product Height 1.7 in [43 mm]
  Product Length 8.7 in [220 mm]
  Product Weight 37.5 oz [1062 g]
  Product Width 5.1 in [130 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 3.6 lb [1.6 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 4-port DisplayPort KVM switch
    4 - rubber feet
    1 - universal power adapter (NA, EU, UK, ANZ)
    1 - quick start guide
More Information
GTIN065030863728
