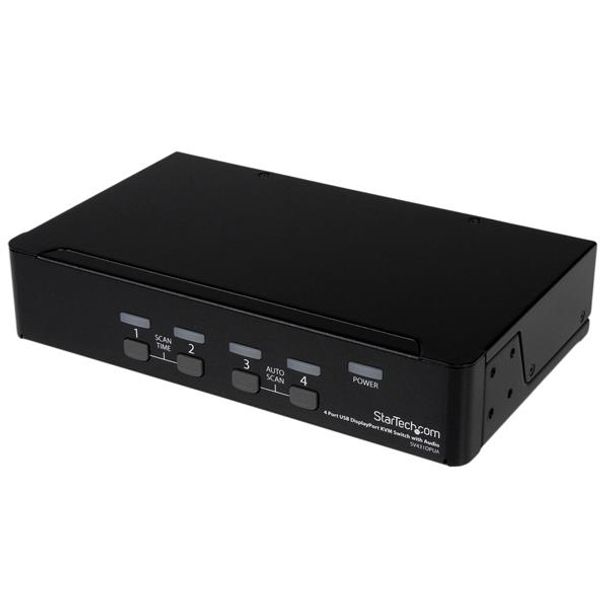

StarTech SV431DPUA 4 Port USB DisplayPort KVM Switch

Model
SV431DPUA
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$589.00
4 Port USB DisplayPort KVM Switch with Audio

The SV431DPUA 4 Port USB DisplayPort KVM Switch with Audio combines next generation display standards with seamless KVM control of up to 4 connected PC or Mac computers.

Featuring DisplayPort resolutions of 2560x1600 @60Hz, as well as offering both 7.1 HD digital audio (with supporting displays and sources) and separate 3.5mm stereo audio support. An integrated USB 2.0 hub allows you to share 2 additional peripherals among attached computers as if they were directly connected.

Suitable for high quality static imaging applications such as health care (MRI, X-ray diagnostics, etc.), a maximum resolution of 3840x2400 is supported at reduced refresh rates.

A simple yet comprehensive solution, the 4-port KVM features both front-panel push-button and hotkey switching, and offers a small form factor with rear connection ports, to minimize workspace disruptions.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Applications

  • Dual system control for a single workstation increasing productivity in the office
  • High resolution medical imaging and Health care display, such as MRI and X-Ray display
  • Perfect for high-res Digital Signage server control, simplifying access to multiple systems
  • Multimedia design, multimedia post-production and video editing
  • Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
  • Leverage DisplayPort’s high resolution capabilities for Satellite Topography equipment


Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio Yes
  Cables Included No
  Daisy-Chain No
  KVM Ports 4
  Number of Monitors Supported 1
  PC Interface USB
  PC Video Type DisplayPort
  Rack-Mountable Optional
PERFORMANCE
  DVI Support Yes - Dual Link
  Hot-Key Selection Yes
  IP Control No
  Maximum Digital Resolutions 2560 x 1600 @ 60Hz
  Maximum Number of Users 1
  MTBF 136000 hours
  On-Screen Display No
  Port Selection Support Push Button and Hotkeys
  Wide Screen Supported Yes
CONNECTOR(S)
  Console Interface(s) 1 - DisplayPort (20 pin) Female
    2 - 3.5 mm Mini-Jack (3 Position) Female
    4 - USB Type-A (4 pin) USB 2.0 Female
  Host Connectors 4 - DisplayPort (20 pin) Female
    4 - USB B (4 pin) Female
    8 - 3.5 mm Mini-Jack (3 Position) Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
INDICATORS
  LED Indicators 1 - Power
    4 - Green - Online indicator (One LED per port)
    4 - Red - Select indicator (One LED per port)
POWER
  Center Tip Polarity Positive
  Input Current 0.8A
  Input Voltage 110V-240V AC
  Output Current 1.5A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 18
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0~80% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Depth 5.1 in [130.6 mm]
  Product Height 1.7 in [44 mm]
  Product Weight 2.3 lb [1 kg]
  Product Width 8.7 in [220.7 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 3.6 lb [1.6 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 4-port DisplayPort KVM switch
    4 - foot pads
    1 - universal power adapter (NA/UK/EU/AU)
    1 - instruction manual
