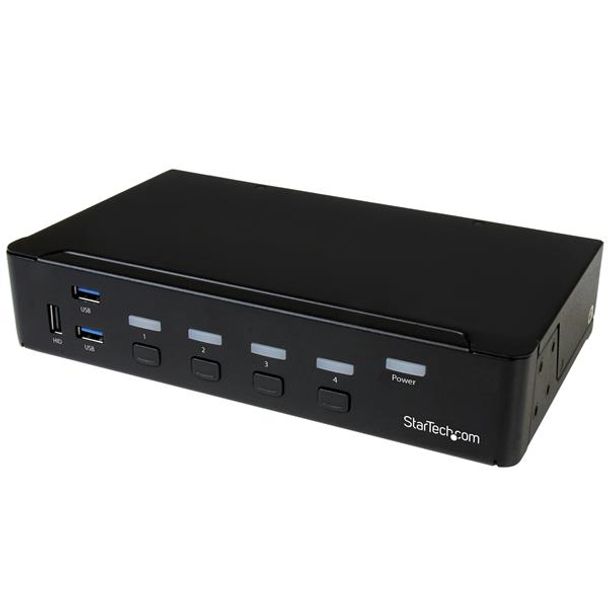

StarTech SV431HDU3A2 4-Port HDMI KVM Switch - USB 3.0 - 1080p

SKU
KVM-STA-1HDU3A2
Model
SV431HDU3A2
Add to Compare
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$696.00
4-Port HDMI KVM Switch - Built-in USB 3.0 Hub for Peripheral Devices - 1080p - Control four HDMI computers using a single console witha built-in USB hub for sharing peripherals
StarTech
065030863735
Add to Wish List

This 4-Port USB 3.0 HDMI® KVM switch lets you control four HDMI computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.

Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of  disconnecting and reconnecting peripherals.

With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.

HD picture quality

Offering support for high-definition 1080p resolutions, this 4-port HDMI KVM switch has the ability to drive HDMI displays with crystal clarity, making it ideal for graphical applications that require 1920 x 1080 video resolutions.

Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 1080p HDMI video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.

The SV431HDU3A2 is TAA compliant and backed by a StarTech.com 2-year warranty with free lifetime technical support.

Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.

Applications

  • Control four HDMI USB computers with a single set of console peripherals (keyboard, mouse and monitor)
  • Perform HD 1080p multimedia applications such as graphic design or CAD and CAM creations
  • Share USB 3.0 peripherals between four computers



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio Yes
  Cables Included No
  Daisy-Chain No
  KVM Ports 4
  Number of Monitors Supported 1
  PC Interface USB 3.0
  PC Video Type HDMI
  Rack-Mountable Optional
PERFORMANCE
  Audio Specifications 2-Channel Stereo supported
  Hot-Key Selection Yes
  IP Control No
  Maximum Cable Length 50 ft. (15.24 m)
  Maximum Digital Resolutions 1920 x 1080 @ 60 Hz
  MTBF 142000 hours
  On-Screen Display No
  Port Selection Support Push Button and Hotkeys
  Supported Resolutions 1024x768
1280x720 (High-definition 720p)
1920x1080 (High-definition 1080p)
CONNECTOR(S)
  Console Interface(s) 1 - HDMI (19 pin) Female Output
    4 - USB Type-A (4 pin) USB 2.0 Female
    1 - 3.5 mm Mini-Jack (3 Position) Female Output
  Host Connectors 4 - HDMI (19 pin) Female Input
    1 - USB Type-B (9 pin) USB 3.0 Female
    4 - 3.5 mm Mini-Jack (3 Position) Female Input
  Other Interface(s) 3 - USB Type-A (9 pin) USB 3.0 Female
INDICATORS
  LED Indicators 4 - port selection/link LEDs
    1 - power LED
POWER
  Input Current 0.6 A
  Input Voltage 100 ~ 240 AC
  Output Current 1.5 A
  Output Voltage 12 DC
  Plug Type M
  Power Consumption (In Watts) 18
ENVIRONMENTAL
  Humidity 0~80% RH Non-Condensing
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS
  Product Height 1.7 in [43 mm]
  Product Length 8.7 in [220 mm]
  Product Weight 2.4 lb [1.1 kg]
  Product Width 5.1 in [130 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 3.6 lb [1.6 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 4-port HDMI KVM switch
    4 - rubber feet
    1 - universal power adapter (NA/EU/UK/AU)
    1 - quick start guide
