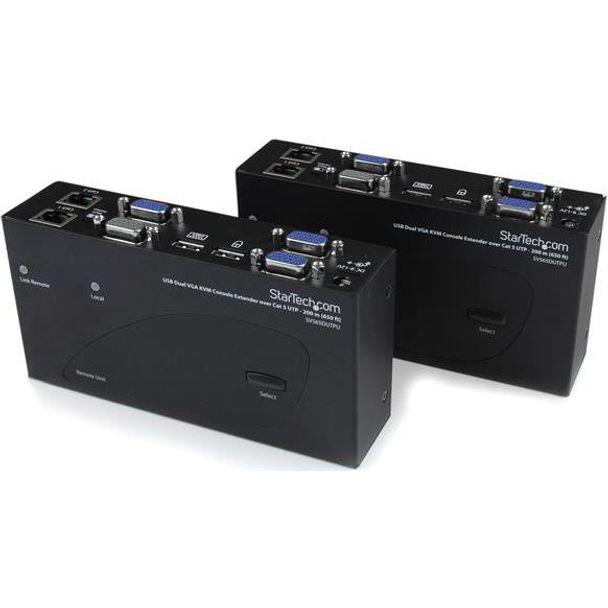

StarTech SV565DUTPU USB Dual VGA over Cat5 KVM Extender

Model
SV565DUTPU
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$844.10
USB Dual VGA over Cat5 KVM Console Extender - 650 ft / 200m - VGA KVM Extender with Resolutions up to 1920x1200

The SV565DUTPU USB Dual VGA KVM Console Extender over CAT5 UTP lets you Operate a Dual VGA PC or KVM switch up to 650ft (200 m) away, as if it was installed locally, at high-definition 1920x1200 resolution. PC connection cables are included with this product for a ready to use solution.

The dual VGA cat5 KVM extender supports easy to use hot-key and push button commands which allow you to switch between local and remote connected systems, while console connections at both ends of your setup provide easy access to all connected systems from either location. The hot-key commands also provide video adjustment controls for optimizing picture quality over varying distances. Extending over two standard Cat 5 (or better) cables gives you the ability to use existing infrastructure wiring to achieve remote access to your server or KVM switch.

This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.

Applications

  • Ideal for controlling a PC in an area where fan or hard drive noise is unacceptable such as a television broadcast studio
  • Control/Monitor a remote server from a harsh environment where the PC would not function properly due to heat/dust/etc. (factory, warehouse, mining, etc.)
  • Can act as a thin client for power users controlling powerful rack mounted servers as their desktop machines
  • Use one or more servers in a server room from a remote location within the same building or campus



Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio No
  Cables Included Yes
  KVM Ports 2
  Number of Monitors Supported 2
  PC Interface USB
  PC Video Type VGA
  Rack-Mountable No
PERFORMANCE
  IP Control No
  Max Transfer Distance 200 m (656 ft)
  Maximum Analog Resolutions 1920x1200
  MTBF 65000 hours
  Supported Resolutions 1920x1200 @ 650 ft (200m)
CONNECTOR(S)
  Console Interface(s) 2 - USB Type-A (4 pin) USB 2.0 Female
    2 - VGA (15 pin, High Density D-Sub) Female
  Host Connectors 2 - VGA (15 pin, High Density D-Sub) Female
  Other Interface(s) 2 - RJ-45 Female
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
SPECIAL NOTES / REQUIREMENTS
  Note Product weights/measurements and connector types indicate a single unit only (either Host or Remote)
POWER
  Center Tip Polarity Positive
  Input Current 0.2A
  Input Voltage 110V-240V AC
  Output Current 0.6A
  Output Voltage 9 DC
  Plug Type M
  Power Consumption (In Watts) 5.4
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0~80% RH
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -10°C to 60°C (14°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Height 1.6 in [40 mm]
  Product Length 6.1 in [155 mm]
  Product Weight 18.9 oz [535 g]
  Product Width 3.1 in [80 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 5 lb [2.3 kg]
WHAT'S IN THE BOX
  Included in Package 1 - local unit
    1 - remote unit
    2 - 6 ft 2-in-1 USB VGA KVM cables
    1 - universal power adapter (NA/EU/UK/AU)
    8 - rubber feet
    1 - instruction manual
More Information
GTIN065030848237
