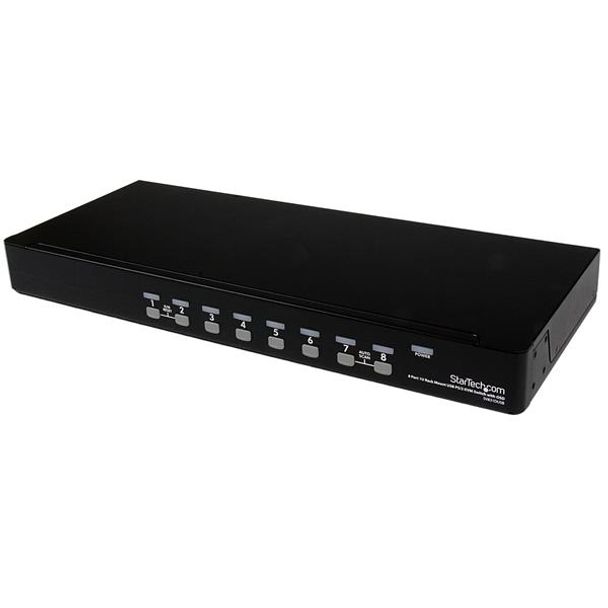

StarTech SV831DUSB 8 PORT 1U Rackmount USB PS/2 KVM SWITCH

Model
SV831DUSB
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$673.00
8 PORT 1U RACKMOUNT USB PS/2 KVM SWITCH WITH OSD

The SV831DUSB 8 Port 1U Rack Mount USB PS/2 KVM Switch with OSD offers a dependable computer management tool that allows you to control up to 8 USB or PS/2 connected computers from a single keyboard, mouse and monitor.

The KVM switch offers maximum control, allowing you to switch computers using hotkey commands or front panel push-buttons, and offers the added convenience of an On Screen Display to quickly access configuration options.

A suitable addition to server room operations, the 8 port switch can be rack-mounted into 1U of cabinet space, and can be cascaded with multiple KVM switches to deliver control of up to 56 computers from this single switch.

This high quality USB PS/2 KVM Switch is TAA compliant and backed by a StarTech.com 3-year warranty with free lifetime technical support.

The SV831DUSB only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:

6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

Applications

  • Add single console administration to your Co-location/ISP facility saving you time and money
  • Create a scalable, streamlined access solution in your Datacenter or Server Farm
  • Great for PC test/burn-in computer control saving the desk space required for multiple monitors, keyboards and mice
  • Perfect for manufacturing line computer control, simplifying access to multiple systems


Technical Specifications

WARRANTY INFORMATION
  Warranty 3 Years
HARDWARE
  Audio No
  Cables Included No
  Daisy-Chain Yes
  KVM Ports 8
  Number of Monitors Supported 1
  PC Interface USB and PS/2
  PC Video Type VGA
  Rack-Mountable Yes
PERFORMANCE
  DVI Support No
  Hot-Key Selection Yes
  IP Control No
  Maximum Analog Resolutions 1920 x 1440 @60hz
  Maximum Cascaded Computers 64
  Maximum Number of Users 1
  MTBF 150000 hours
  On-Screen Display Yes
  Port Selection Support Push Button and Hotkeys
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
POWER
  Center Tip Polarity Positive
  Input Current 0.2A
  Input Voltage 110V-240V AC
  Output Current 0.6A
  Output Voltage 9 DC
  Plug Type M
  Power Consumption (In Watts) 5.4
  Power Source AC Adapter Included
ENVIRONMENTAL
  Operating Temperature 5°C to 40°C (41°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Steel
  Product Height 1.8 in [45 mm]
  Product Length 17.2 in [438 mm]
  Product Weight 102.4 oz [2900 g]
  Product Width 7.1 in [180 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 7.6 lb [3.5 kg]
WHAT'S IN THE BOX
  Included in Package 1 - 8-port KVM switch
    2 - mounting brackets
    1 - PS/2 keyboard and mouse Y cable
    1 - universal power adapter (NA/EU/UK)
    4 - foot pads
    1 - instruction manual
