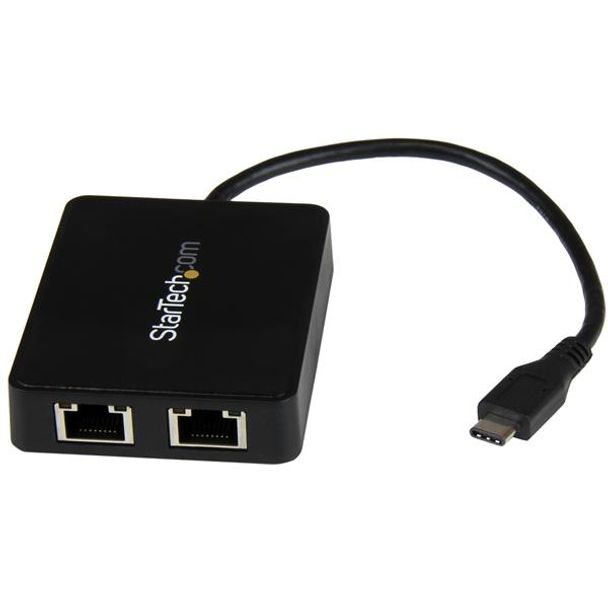

StarTech US1GC301AU2R Dual USB-C To GBE Adapter W/ USB PORT

Model
US1GC301AU2R
LocationAvailability
Online (Delivery)
End of Life
Notting Hill (Pickup)
End of Life
Preston (Pickup)
End of Life
West Melbourne (Pickup)
End of Life
$128.00
USB-C TO DUAL GIGABIT ETHERNET ADAPTER WITH USB (TYPE-A) PORT

Now, you can add wired network access through the USB-C™ or Thunderbolt™ 3 port on your laptop or desktop computer, and connect to your USB 3.0 (Type A) devices with ease. This Gigabit Ethernet network adapter gives you access to two reliable GbE ports, and without having to install drivers. It's a great companion for your MacBook, Chromebook Pixel™, Dell™ XPS™  12, Dell Latitude™  12 7000 Series 2-in-1 or another device that has a USB Type-C™  port.

Powerful Gigabit network connections

The network adapter leverages the 5Gbps speed of USB 3.0 (also known as USB 3.1 Gen 1) to deliver the full bandwidth of your Gigabit network connection, without bottlenecks. This saves you time by making it easier to access very large files over your network at Gigabit speed.

For added versatility, the network adapter supports a range of convenient features, such as Wake-On-LAN, VLAN Tagging, Crossover Detection and Auto-Correction (Auto MDIX), Checksum Offload (IPv4, IPv6, TCP, UDP), and Large Send Offload.

Add connectivity to your USB devices

Some computers with USB Type-C only offer one USB-C port for external connectivity, which will not connect with your existing USB Type-A devices. This Gigabit adapter features an integrated USB 3.0 Type-A port, so while the adapter is connected to your computer to provide network access, you can also connect to USB peripherals that need a USB Type-A connector. The network adapter is also backward compatible with USB 2.0 systems.

Native driver support makes installation easy

Get up and running quickly. The network adapter provides native driver support to ensure a quick setup. Simply plug the adapter into the USB Type-C port on your laptop and connect to your network. The network adapter chipset offers native driver support in Chrome OS™ and Windows® 8.1, and supports Mac OSX (10.10) with driver installation.

Trouble-free connections through USB-Type-C

The USB Type-C connector is smaller and easier to use than previous USB connectors. It’s a reversible plug, so you can connect to your devices with either side facing up. You can insert the cable the right way every time, without frustration or the risk of port damage.

The US1GC301AU2R is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Add Gigabit Ethernet capabilities to your MacBook, Chromebook Pixel, Dell XPS 12 or Dell Latitude 12 7000 Series 2-in-1
  • Add an extra USB peripheral along with your network adapter
  • Enhance your laptop or desktop computer with Gigabit network capabilities without opening the computer or taking up an available expansion slot
  • Connect your laptop PC to a Gigabit network - ideal for small businesses, home offices, departmental network applications, and network gaming


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.0
  Chipset ID VIA/VLI - VL812
ASIX - AX88179
  Industry Standards IEEE 802.3, 802.3u and 802.3ab
  Interface RJ45 (Gigabit Ethernet)
  Ports 2
  USB Pass-Through Yes
PERFORMANCE
  Auto MDIX Yes
  Bandwidth 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  Jumbo Frame Support 4K max.
  Maximum Cable Length 0.3 ft [0.1 m]
  Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
  Type and Rate USB 3.0 - 5 Gbit/s
CONNECTOR(S)
  Connector Type(s) 1 - USB 3.0 A (Fast-Charge, 9 pin, SuperSpeed)
    1 - USB Type-C (24 pin) USB 3.0 (5Gbps)
  External Ports 2 - RJ-45 Female
SOFTWARE
  OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2016
Mac OS® 10.6 to 10.14 VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements Available USB Type-C port
INDICATORS
  LED Indicators 4 - 2x Gigabit Link/Activity



2x 10/100 Link/Activity
POWER
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity 20%~80%
  Operating Temperature 5°C to 50°C (41°F to 122°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Plastic
  Form Factor Attached Cable
  Product Height 0.6 in [16 mm]
  Product Length 3 in [75 mm]
  Product Weight 1.9 oz [54 g]
  Product Width 2.4 in [60 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 4 oz [112 g]
WHAT'S IN THE BOX
  Included in Package 1 - USB-C to dual Gigabit Ethernet adapter

More Information
GTIN065030862813
