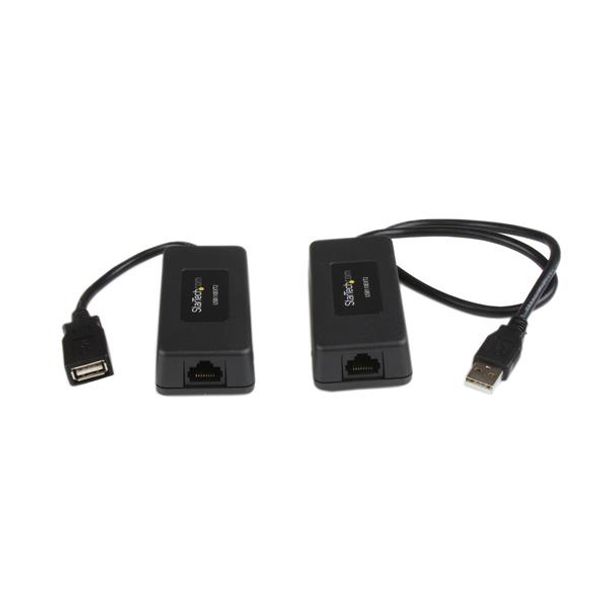

StarTech USB110EXT2 USB Ethernet Extender - USB over Cat5 or Cat6 - 131ft (40m)
Model
USB110EXT2
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$248.80
Extend a USB 1.1 device up to 40m (131ft) away from a computer, over a Cat5/Cat6 cable - 1 Port USB Extender over Cat5/6 - 40m
The USB110EXT2 USB 1.1 Extender enables you to extend a USB 1.1 connection over distances of up to 40-meters (131-feet) using standard Cat5 or Cat6 UTP cabling, bypassing the normal limitation of 5m (15ft) for USB 1.1 devices and allows for the host computer system to be safely stored in a remote location.The USB Extender features a compact design with no external power requirements, making it the ideal solution for remote USB cameras, keyboards, mice or other input devices for environments where install space or access to electrical outlets is limited.Able to deliver up to 300mA of power (when supplied with 500mA from the host computer), the extender is fully compliant with the USB 1.1 specification, with support for up to 12Mbps of data bandwidth.Backed by a StarTech.com 3-year warranty and free lifetime technical support.
Specification
| Connector(s) | |
| Local Unit Connectors | RJ-45 Female |
| USB Type-A (4 pin) USB 2.0 Male | |
| Remote Unit Connectors | RJ-45 Female |
| USB Type-A (4 pin) USB 2.0 Female | |
| Environmental | |
| Humidity | 20% ~ 80% RH |
| Operating Temperature | 0 C to 50 C (32 F to 122 F) |
| Storage Temperature | -20 C to 70 C (-4 F to 158 F) |
| Hardware | |
| Cabling | Cat 5e UTP or better |
| Ports | 1 |
| Packaging Information | |
| Package Height | 60 mm [2.4 in] |
| Package Length | 12.8 cm [5 in] |
| Package Quantity | 1 |
| Package Width | 12.8 cm [5 in] |
| Shipping (Package) Weight | 170 g [6 oz] |
| Performance | |
| Max Distance | 40 m / 131 ft |
| Maximum Data Transfer Rate | 12 Mbps |
| Physical Characteristics | |
| Color | Black |
| Enclosure Type | Plastic |
| Product Height | 2.5 cm [1 in] |
| Product Length | 85 mm [3.3 in] |
| Product Width | 40 mm [1.6 in] |
| Weight of Product | 110 g [3.9 oz] |
| Power | |
| Power Source | USB-Powered |
| Software | |
| OS Compatibility | OS Independent; No additional drivers or software required |
| Special Notes / Requirements | |
| System and Cable Requirements | Available USB port |
| What's in the Box | |
| Included in Package | Instruction Manual |
| USB 1.1 Extender Local Unit | |
| USB 1.1 Extender Remote Unit | |
| GTIN | 065030847896 |
|---|
