StarTech USB31000SPTW Gigabit USB 3.0 NIC w/ USB Port

Model
USB31000SPTW
LocationAvailability
Online (Delivery)
Preorder
Notting Hill (Pickup)
Preorder
Preston (Pickup)
Preorder
West Melbourne (Pickup)
Preorder
$67.00

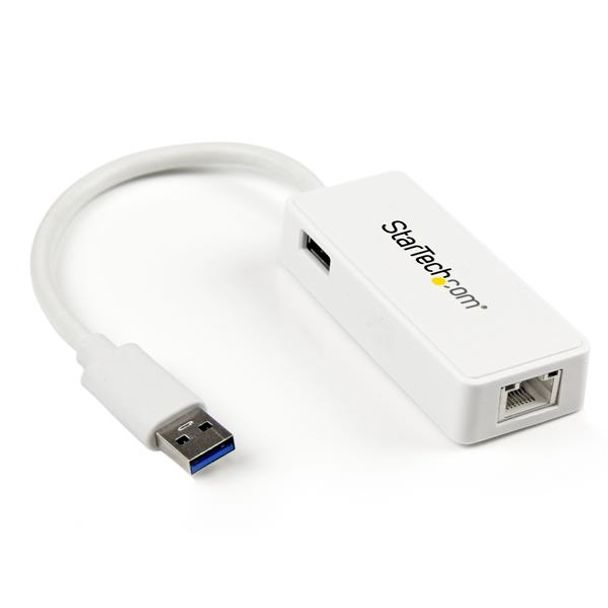

USB 3.0 to Gigabit Ethernet Adapter NIC with USB Port (White) - USB 3.0 NIC - 10/100/1000 Mbps USB 3.0 LAN Adapter - Gigabit External Network Card - USB Network Card

The USB31000SPTW USB 3.0 to Gigabit Ethernet Adapter lets you add a Gigabit network port to your Macbook® or Ultrabook™ computer through a USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with other peripherals. The RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.

An ideal replacement LAN adapter or laptop accessory, this compact USB 3.0 NIC leverages the 5 Gbps speed of USB 3.0 to provide full gigabit bandwidth and also offers backward compatibility with USB 2.0 systems (speed limited by USB bus).

The adapter supports features such as IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU. Jumbo Frames, full-duplex operation with 802.3x flow control and VLAN tagging are also supported, making this an efficient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Add Gigabit Ethernet capabilities to a desktop or laptop
  • Replacement for a failed built-in Gigabit Ethernet port on a laptop



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.0
  Chipset ID ASIX - AX88179
VIA/VLI - VL811
  Industry Standards IEEE802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3az
  Interface RJ45 (Gigabit Ethernet)
  Ports 1
  USB Pass-Through Yes
PERFORMANCE
  Auto MDIX Yes
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  Jumbo Frame Support 4K max.
  Max Distance 100 m / 330 ft
  Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
  Type and Rate USB 3.0 - 5 Gbit/s
CONNECTOR(S)
  Connector Type(s) 1 - RJ-45 Female
    1 - USB Type-A (9 pin) USB 3.0 Female
    1 - USB Type-A (9 pin) USB 3.0 Male
SOFTWARE
  OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.14 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements Available USB Port
INDICATORS
  LED Indicators 1 - 10/100 Link/Activity (Green)
    1 - Gigabit Link/Activity (Amber)
POWER
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity 5~85% RH
  Operating Temperature 0°C to 50°C (32°F to 122°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Cable Length 6.1 in [155 mm]
  Color White
  Enclosure Type Plastic
  Form Factor Attached Cable
  Product Height 0.7 in [17 mm]
  Product Length 5 in [126 mm]
  Product Weight 1.6 oz [44 g]
  Product Width 1.4 in [35 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 4.7 oz [132 g]
WHAT'S IN THE BOX
  Included in Package 1 - USB 3.0 Network Adapter
    1 - Driver CD
    1 - Instruction Manual
More Information
GTIN065030851909
