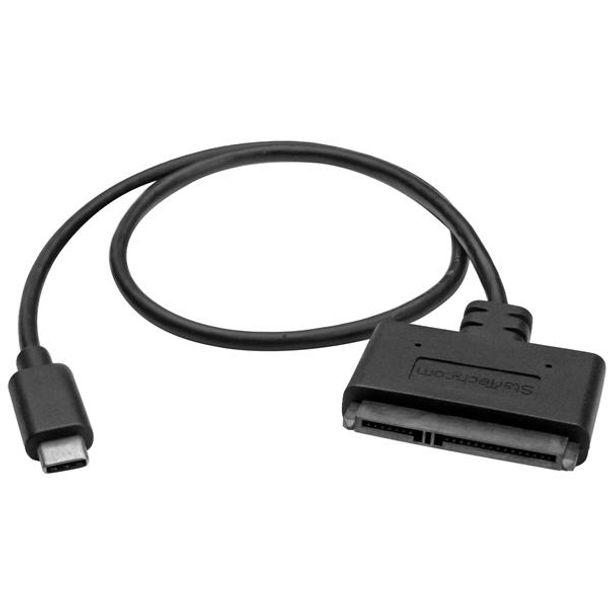

StarTech USB31CSAT3CB USB 3.1 Adapter Cable -2.5in SATA - USB-

Model
USB31CSAT3CB
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
In Stock
West Melbourne (Pickup)
In Stock
$39.00
USB 3.1 Gen 2 (10 Gbps) Adapter Cable for 2.5in SATA Drives with USB-C - SATA I/II/III and UASP Support - Ultra-Portable External Drive Adapter Cable for 2.5in SSD/HDDs - USB Powered

Take advantage of the USB-C™ port on the latest MacBook, Chromebook Pixel™ or other laptop to get quick access to your external drive. This cable-style adapter lets you use the USB Type-C™ port to connect your laptop directly to a 2.5” solid-state drive or hard drive, and access it through ultra-fast USB 3.1 Gen. 2 (10Gbps). It’s fast and easy to connect to your SATA drives, with no additional accessories required.

USB powered for easy portability, the cable-style adapter connects to your laptop's USB-C port letting you access files on a 2.5 inch SSD or HDD.

Ultra-portable with no external power required

You can quickly access your valuable data, wherever you go, using this cable-style adapter. It’s USB powered, so there’s no external adapter required, and features a compact, lightweight design that you can easily tuck into your laptop bag or carrying case.

Convenient drive access

The adapter cable lets you quickly swap HDDs or SSDs without having to install your drives into an enclosure. You can copy or retrieve data from a 2.5" SSD or HDD quickly. It gives you easy access to your drive for data migration, drive cloning and data backup applications, with the fast performance of USB 3.1 Gen 2.

Connect easily, with USB-C

The integrated, easy-to-use USB Type-C connector is small and reversible, which makes for easier insertions. You can connect the plug with either side facing up, which means less risk of damaging your ports, and less frustration.

Harness the speed of USB 3.1 Gen 2

USB File Transfer Rates diagram shows USB 3.1 Gen 2 at 10 Gbps is twice the speed of USB 3.0  at 5 Gbps

USB 3.1 Gen 2 gives you greater bandwidth and speed with file transfer rates of up to 10 Gbps - twice the speed of USB 3.0 (USB 3.1 Gen 1) technology. It lets you leverage the high performance of the latest SSDs and hard drives, while alleviating bottlenecks in your data transfers.

The USB31CSAT3CB is backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Mobile technicians who need a quick and easy way to access the data on 2.5” hard drives or solid-state drives
  • Access any 2.5" hard drive or solid-state drive from your USB-C enabled computer, for data migration or drive cloning
  • Retrieve data from an old SATA drive



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.1 Gen 2
  Chipset ID ASMedia - ASM1351
  Compatible Drive Types SATA
  Drive Size 2.5in
  Interface USB 3.1 Gen 2
  Number of 2.5 inch bays 1
  Number of Drives 1
PERFORMANCE
  4Kn Support Yes
  Hot Swap Capability Yes
  Max Drive Capacity Currently tested with hard drives up to 2TB at 7200 RPM
  Maximum Data Transfer Rate 10 Gbps
  TRIM Support Yes
  Type and Rate USB 3.1 Gen 2 - 10 Gbit/s
  UASP Support Yes
CONNECTOR(S)
  Drive Connectors 1 - SATA Data & Power Combo (7+15 pin) Receptacle
  Host Connectors 1 - USB Type-C (24 pin) USB 3.1 (10Gbps) Male
SOFTWARE
  OS Compatibility OS independent; No software or drivers required
ENVIRONMENTAL
  Humidity 40% ~ 50% RH
  Operating Temperature 0°C to 70°C (32°F to 158°F)
  Storage Temperature -10°C to 55°C (14°F to 131°F)
PHYSICAL CHARACTERISTICS
  Color Black
  Enclosure Type Plastic
  Product Height 0.2 in [5 mm]
  Product Length 20 in [508 mm]
  Product Weight 1 oz [29.2 g]
  Product Width 1.7 in [43 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 1.4 oz [41 g]
WHAT'S IN THE BOX
  Included in Package 1 - USB 3.1 to SATA 2.5" HDD adapter cable with USB-C
    1 - quick start guide
