StarTech USB32000SPT USB 3 Dual Port Gigabit Ethernet Adapter

Model
USB32000SPT
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$119.60
USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Port - USB 3.0 LAN Adapter - USB 3.0 2 Port Gigabit Network Adapter - USB 3 NIC

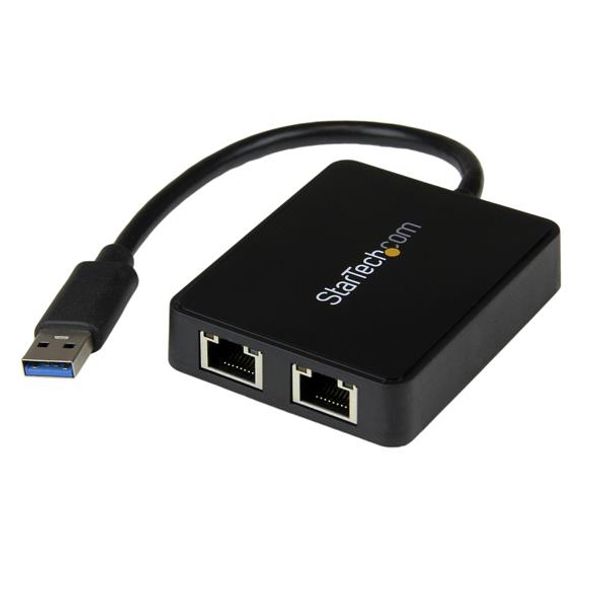

The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook™ computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.

This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.

The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

Applications

  • Business or IT professionals that need to connect to two separate networks simultaneously
  • Run a virtual machine(s) on a workstation, with access to separate physical network connections
  • Replacement for a failed built-in Gigabit Ethernet port on a laptop



Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Bus Type USB 3.0
  Chipset ID ASIX - AX88179
VIA/VLI - VL811
  Industry Standards IEEE802.3i
IEEE 802.3u
IEEE 802.3ab
IEEE 802.3az
IEEE 802.1q (VLAN Tagging Support)
  Interface RJ45 (Gigabit Ethernet)
  Ports 2
PERFORMANCE
  Auto MDIX Yes
  Compatible Networks 10/100/1000 Mbps
  Full Duplex Support Yes
  Jumbo Frame Support 4K max.
  Max Distance 100 m / 330 ft
  Maximum Data Transfer Rate 5 Gbps (USB 3.0)
2 Gbps (Ethernet - Full-Duplex)
  Type and Rate USB 3.0 - 5 Gbit/s
CONNECTOR(S)
  Connector Type(s) 1 - USB Type-A (9 pin) USB 3.0 Female
    1 - USB Type-A (9 pin) USB 3.0 Male
    2 - RJ-45 Female
SOFTWARE
  OS Compatibility Windows® XP, Vista, 7, 8, 8.1, 10
Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016
Mac OS® 10.6 to 10.14 - VLAN tagging is currently not supported in Mac OS
Linux Kernel 2.6.25 to 4.11.x LTS Versions only
SPECIAL NOTES / REQUIREMENTS
  System and Cable Requirements Available USB port
INDICATORS
  LED Indicators 1 - Gigabit Link/Activity (Amber)
    2 - 10/100 Link/Activity (Green)
POWER
  Power Source USB-Powered
ENVIRONMENTAL
  Humidity 5~85% RH
  Operating Temperature 0°C to 50°C (32°F to 122°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Cable Length 8 in [203.2 mm]
  Color Black
  Enclosure Type Plastic
  Form Factor Attached Cable
  Product Height 0.6 in [16 mm]
  Product Length 3 in [75 mm]
  Product Weight 2.1 oz [59 g]
  Product Width 2.4 in [60 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 5.4 oz [154 g]
WHAT'S IN THE BOX
  Included in Package 1 - USB 3.0 Dual Network Adapter
    1 - Driver CD
    1 - Instruction Manual
More Information
GTIN065030851428
