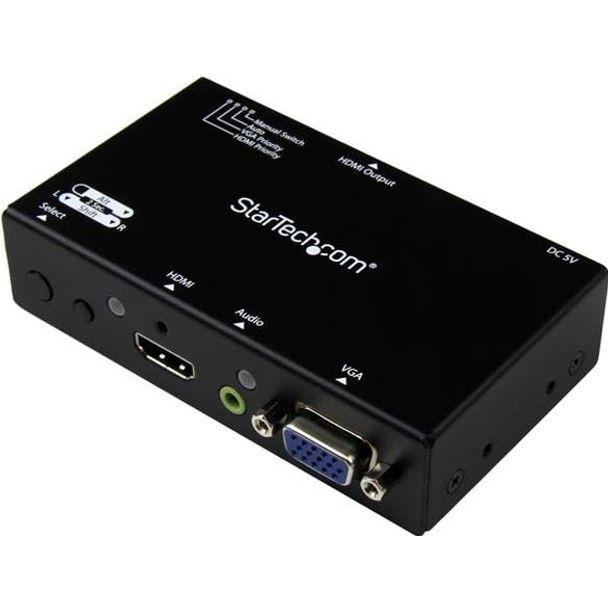

StarTech VS221VGA2HD 2x1 HDMI + VGA to HDMI Converter Switch

Model
VS221VGA2HD
LocationAvailability
Online (Delivery)
Available from Supplier (2 to 7 Working Days)
Notting Hill (Pickup)
Available from Supplier (2 to 7 Working Days)
Preston (Pickup)
Available from Supplier (2 to 7 Working Days)
West Melbourne (Pickup)
Available from Supplier (2 to 7 Working Days)
$174.20
2x1 HDMI + VGA to HDMI Converter Switch w/ Automatic and Priority Switching - Multi-format HDMI & VGA to HDMI Converter Switch w/ Automatic and Priority Port Selector - 1080p

The VS221VGA2HD HDMI & VGA Auto Switch lets you connect an HDMI and a VGA audio/video source to the same HDMI display or projector, and automatically or manually switch between which video source is displayed. The multi-input A/V switch supports video resolution up to 1920x1200 (1080p) and includes mounting hardware for a tidy professional installation.

One Switch for VGA and HDMI

The A/V switch features built-in VGA conversion, enabling you to connect an HDMI and a VGA video source to the same HDMI display without the use of additional adapters or scalers.

Effortless Control

The VS221VGA2HD ensures hassle-free operation with two different auto switching modes: automatic switching that detects and selects a newly connected device, as well as priority selection which lets you choose which port should be activated by default for automatic switching.

Focus on the Presentation, Not Boardroom Connections

This A/V switch has been designed with the boardroom and classroom in mind: the VS221VGA2HD features VGA and HDMI inputs to support a wide range of devices, and the built-in converter makes it easy to connect to the room’s display without the use of additional adapters. Plus, automatic switching encourages on-the-fly collaboration among students or co-workers, by making it easy to share your projector between multiple source devices.

Application Diagram



The VS221VGA2HD is TAA compliant and backed by a StarTech.com 2-year warranty, and free lifetime technical support.

Applications

  • Automatically switch between your set top box or computer in a home theatre environment
  • Share a classroom or conference room projector with VGA and HDMI video sources
  • Connect and switch between VGA and HDMI video sources on a test bench, for troubleshooting computers
  • Switch between VGA and HDMI video sources on your digital signage display in hospitals, shopping centers, or schools


Technical Specifications

WARRANTY INFORMATION
  Warranty 2 Years
HARDWARE
  Audio Yes
  AV Input HDMI
    VGA
  AV Output HDMI
  Ports 2
PERFORMANCE
  Audio Specifications 2-channel 3.5mm stereo audio (VGA)
7.1 surround sound (HDMI)
  Maximum Analog Resolutions 1920x1200
  Maximum Digital Resolutions 1920x1200
  Supported Resolutions Supports resolutions up to 1920x1200 / 1080p
  Wide Screen Supported Yes
CONNECTOR(S)
  Connector A 1 - HDMI (19 pin) Female
    1 - VGA (15 pin, High Density D-Sub) Female
  Connector B 1 - HDMI (19 pin) Female
INDICATORS
  LED Indicators 1 - VGA Port Selected
    1 - HDMI Port Selected
POWER
  Input Current 0.4 A
  Input Voltage 100 ~ 240 AC
  Output Current 1 A
  Output Voltage 5 DC
  Power Consumption (In Watts) 5
  Power Source AC Adapter Included
ENVIRONMENTAL
  Humidity 0%~80%
  Operating Temperature 0°C to 40°C (32°F to 104°F)
  Storage Temperature -20°C to 60°C (-4°F to 140°F)
PHYSICAL CHARACTERISTICS
  Product Height 1.1 in [29 mm]
  Product Length 4 in [102 mm]
  Product Weight 8 oz [226 g]
  Product Width 2.1 in [54 mm]
PACKAGING INFORMATION
  Shipping (Package) Weight 23.2 oz [657 g]
WHAT'S IN THE BOX
  Included in Package 1 - VGA+HDMI to HDMI converter switch
    1 - mounting kit
    1 - universal power adapter (NA, EU, UK, ANZ)
    1 - instruction manual
