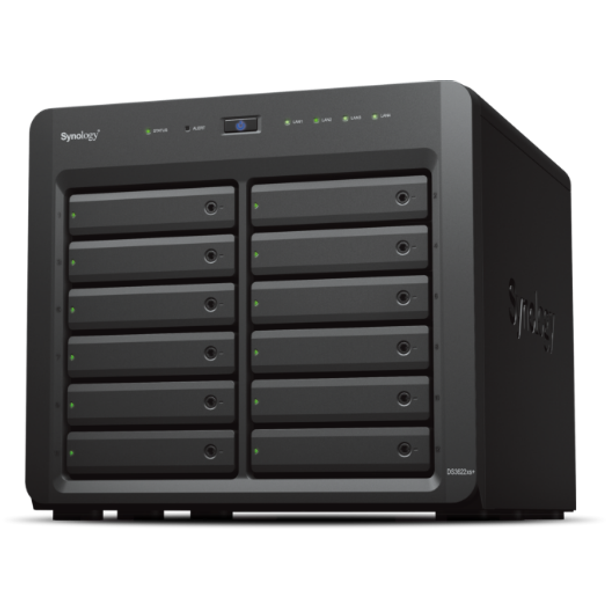

Synology DS3622xs+ DiskStation 12-Bay NAS
Model
DS3622xs+
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |
$5,399.00
Synology DS3622xs+ DiskStation 12-Bay NAS
Synology DS3622xs+ DiskStation 12-Bay NAS
Dependable storage for many scenarios
Synology NAS is a versatile storage platform that fits perfectly in file server, block storage, or application server roles that require high availability, reliability, and leading-edge storage technology.
Multi-purpose NAS storage
Keep digital assets accessible locally or remotely with easy-to-maintain shared file storage, backed by fast SMB file serving, powerful RAID options, efficient backup tools, and granular permission management.
SAN infrastructure for SMBs
Deploy certified block storage with minimal disruption thanks to easy management plugins, and leverage free snapshots paired with built-in high-availability options to maximize service availability.
Versatile business applications
Host business solutions privately and on your own terms, including a powerful backup server to protect all business assets from a centralized platform or a full-fledged surveillance platform to safeguard physical premises with transparent licensing.
Faster performance
Enjoy a smooth experience even with multiple users running demanding applications. See the numbers that make the DS3622xs+ more efficient.
TECH SPECS
| CPU | CPU Model | Intel Xeon D-1531 |
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 6-core 2.2 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
| Memory | System Memory | 16 GB DDR4 ECC SODIMM |
| Memory Module Pre-installed | 16 GB (8 GB x 2) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 48 GB (8 GB x 2 + 16 GB x 2) | |
| Notes | Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. | |
| Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. | ||
| Storage | Drive Bays | 12 |
| Maximum Drive Bays with Expansion Unit | 36 (DX1222 x 2) | |
| Compatible Drive Type | 3.5" SATA HDD | |
| 2.5" SATA HDD | ||
| 2.5" SATA SSD | ||
| Maximum Single Volume Size* | 200 TB (32 GB memory required) | |
| 108 TB | ||
| Hot Swappable Drive | ||
| Notes | It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components. | |
| "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay. | ||
| Each internal volume (may consist of multiple drives) is expandable up to 108 TB (with memory less than 32 GB) or 200 TB (with memory equal to or greater than 32 GB). | ||
| External Ports | RJ-45 1GbE LAN Port* | 2 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| Management LAN Port | 1 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Expansion Port | 2 | |
| Notes | This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes. | |
| The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019. | ||
| PCIe | PCIe Expansion | 1 x Gen3 x8 slot (x8 link) |
| File System | Internal Drives | Btrfs |
| EXT4 | ||
| External Drives | Btrfs | |
| EXT4 | ||
| EXT3 | ||
| FAT | ||
| NTFS | ||
| HFS+ | ||
| exFAT | ||
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
| Appearance | Size (Height x Width x Depth) | 270 mm x 300 mm x 340 mm |
| Weight | 9.8 kg | |
| Others | System Fan | 120 mm x 120 mm x 2 pcs |
| Fan Speed Mode | Full-Speed Mode | |
| Cool Mode | ||
| Quiet Mode | ||
| Easy Replacement System Fan | ||
| Power Recovery | ||
| Noise Level* | 25 dB(A) | |
| Scheduled Power On / Off | ||
| Wake on LAN / WAN | ||
| Power Supply Unit / Adapter | 550 W | |
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 94.42 W (Access) | |
| 54.33 W (HDD Hibernation) | ||
| British Thermal Unit | 322.39 BTU/hr (Access) | |
| 185.51 BTU/hr (HDD Hibernation) | ||
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
| Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | ||
| Temperature | Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification | FCC | |
| CE | ||
| BSMI | ||
| VCCI | ||
| RCM | ||
| UKCA | ||
| EAC | ||
| KC | ||
| UL | ||
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
| Environment | RoHS Compliant | |
| Packaging Content | Main Unit X 1 | |
| Accessory Pack X 1 | ||
| AC Power Cord X 1 | ||
| RJ-45 LAN Cable X 2 | ||
| Quick Installation Guide X 1 | ||
