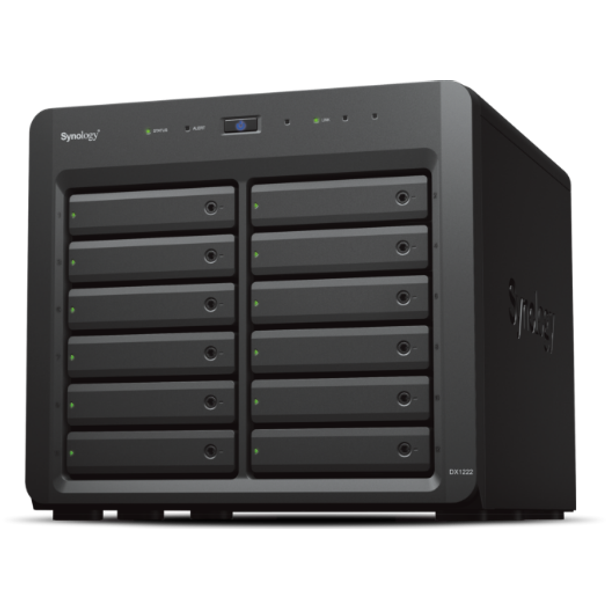

Synology DX1222 DiskStation Expansion 12 Bays

Name: Synology DX1222 DiskStation Expansion 12 Bays
Brand: Synology
SKU: NAS-SYN-DX1222
Price: 2199 AUD
Availability: InStock

Model

DX1222

Be the first to review this product

Location	Availability
Online (Delivery)	Available from Supplier (2 to 3 Working Days)
Notting Hill (Pickup)	Available from Supplier (2 to 3 Working Days)
Preston (Pickup)	Available from Supplier (2 to 3 Working Days)
West Melbourne (Pickup)	Available from Supplier (2 to 3 Working Days)

$2,199.00

Synology DX1222 DiskStation Expansion 12 Bays

Details

Easily double or triple the storage capacity of your Synology DiskStation.

Add 12 bays to your DiskStation on the fly
Use Synology Expansion Unit DX1222 to add 12 additional bays to your deployment while keeping your storage and services online and uninterrupted.

Fast setup
Your additional storage will be ready to use in a matter of moments after you connect it to your host NAS.1 Online volume expansion enables you add a new volume or expand RAID volumes without reformatting drives through DiskStation Manager (DSM).

Optimize with Synology drives
Ensure high reliability and performance on your expansion unit with Synology drives that are designed to be a perfect fit.

Centrally manage all your drives
Benefit from unified drive management after connecting the DX1222 to your primary NAS. Maintenance, monitoring, and administration of drives on both units is simple with Synology DSM.

Hardware Specifications
Applied Models	Supports creating volumes across different units	22 series:DS3622xs+, DS2422+
	Notes	To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage	Drive Bays	12
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Maximum Internal Raw Capacity	192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
	Hot Swappable Drive
	RAID Management through Synology DSM
External Ports	Expansion Port	1
Appearance	Size (Height x Width x Depth)	270 mm x 300 mm x 340 mm
	Weight	9.02 kg
Power	Power Recovery	Synchronized with the Synology DiskStation
	Power Supply Unit / Adapter	550 W
	AC Input Power Voltage	100V to 240V AC
	Power Frequency	50/60 Hz, Single Phase
	Power Consumption*	57.71 W (Access) 16.25 W (HDD Hibernation)
	British Thermal Unit	194.96 BTU/hr (Access) 55.48 BTU/hr (HDD Hibernation)
	Notes	Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature	Operating Temperature	0°C to 40°C (32°F to 104°F)
	Storage Temperature	-20°C to 60°C (-5°F to 140°F)
	Relative Humidity	5% to 95% RH
Others	System Fan	120 mm x 120 mm x 2 pcs
	Easy Replacement System Fan
	Noise Level*	24.6 dB(A)
	Notes	Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.
Certification	UL FCC CE BSMI UKCA EAC VCCI RCM KC
Warranty	5 Years
	Notes	The warranty period starts from the purchase date as stated on your purchase receipt.
Environment & Packaging
Environment	RoHS Compliant
Packaging Content	Main Unit X 1 Accessory Pack X 1 AC Power Cord X 1 Expansion Cable: MiniSAS-HD X 1 Quick Installation Guide X 1
Optional Accessories	3.5" SATA HDD: HAT5300 2.5" SATA SSD: SAT5210

More Information

More Information
GTIN	4711174724192
