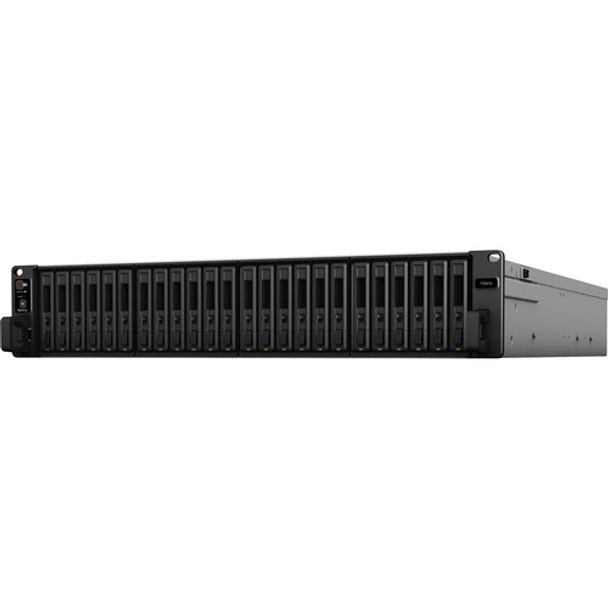

Synology FlashStation FS3410 2U Rackmount 24 Bay NAS Enclosure
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
Harness all-flash storage to speed up business workflows
With 24 all-flash bays in a 2U rackmount enclosure, the Synology FlashStation FS3410 is the ideal solution for SMBs, enterprise offices, and data centers requiring high sustained I/O performance for applications such as video post-production, virtual machines (VMs), enterprise email servers, and online transaction processing.
Storage
Supports 24 x 2.5” SATA SSDs
Throughput
Over 356,500/129,400 iSCSI 4K random read/write IOPS1
Memory
16 GB DDR4 ECC RDIMM, up to 128 GB
Expandability
Optional 25/40GbE through PCIe 3.0 expansion
Powerful flash storage server
Combine all-flash performance with Synology systems’ ease of use and reliability. The FS3410 is designed to tackle scenarios that require high throughput and low latency.
Built for high reliability
The FS3410 is built to keep mission-critical data and services always accessible, enabling businesses to continue to perform even when disaster strikes.
Out-of-band (OOB) management
Simplify troubleshooting by managing powered-down devices remotely and accessing critical logs through a dedicated interface.
Dual power supply
Redundant PSU units reduce the possibility of power disruptions on a single distribution channel or PDU adversely impacting data and service availability.
Failover cluster
Pair two FS3410 units with Synology High Availability to enable automatic minute-level failover in the event of server failure or to minimize downtime when performing system updates or upgrades.
Powerful networking options
The FS3410 supports a wide range of networking interfaces, protocols, and configurations, whether you need fast sequential transfer, support for simultaneous connections, or high network redundancy.
Built-in fast connectivity
Two 10GbE RJ-45 ports and four Gigabit Ethernet ports allow for rapid transfer speeds right out of the box.
Support for 10/25/40GbE
Add up to 2 x 10/25/40GbE network interface cards using the 2 x PCIe 3.0 slots to enable lightning fast networking in minutes.2
Failover and network balancing
Bond multiple network interfaces with Link Aggregation to enable automatic network failover and load balancing.
Specifications
| CPU | CPU Model | Intel Xeon D-1541 |
|---|---|---|
| CPU Quantity | 1 | |
| CPU Architecture | 64-bit | |
| CPU Frequency | 8-core 2.1 (base) / 2.7 (turbo) GHz | |
| Hardware Encryption Engine (AES-NI) | ||
| Memory | System Memory | 16 GB DDR4 ECC RDIMM |
| Memory Module Pre-installed | 16 GB (16 GB x 1) | |
| Total Memory Slots | 4 | |
| Maximum Memory Capacity | 128 GB (32 GB x 4) | |
| Notes |
|
|
| Storage | Drive Bays | 24 |
| Compatible Drive Type* (See all supported drives) | 2.5" SATA SSD | |
| Hot Swappable Drive | ||
| Notes |
|
|
| External Ports | RJ-45 1GbE LAN Port* | 4 (with Link Aggregation / Failover support) |
| RJ-45 10GbE LAN Port | 2 (with Link Aggregation / Failover support) | |
| Management LAN Port | 1 | |
| Max. number of LAN ports | 15 | |
| USB 3.2 Gen 1 Port* | 2 | |
| Notes |
|
|
| PCIe | PCIe Expansion | 2 x Gen3 x8 slots (x8 link) |
| File System | Internal Drives |
|
| External Drives |
|
|
| Notes | exFAT Access can be installed for free from Package Center in DSM 7.0. In DSM 6.2 or earlier versions, exFAT Access needs to be purchased in Package Center. | |
| Appearance | Form Factor (RU) | 2U |
| Size (Height x Width x Depth) | 88 mm x 482 mm x 724 mm | |
| Weight | 15.0 kg | |
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS-02) | |
| Notes | The rail kit is sold separately | |
| Others | System Fan | 80 mm x 80 mm x 4 pcs |
| Fan Speed Mode |
|
|
| Easy Replacement System Fan | ✓ | |
| Power Recovery | ✓ | |
| Noise Level* | 46.1 dB(A) | |
| Scheduled Power On / Off | ✓ | |
| Wake on LAN / WAN | ✓ | |
| Power Supply Unit / Adapter | 550 W | |
| Redundant Power Supply | ✓ | |
| AC Input Power Voltage | 100V to 240V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 113.84 W (Access) | |
| British Thermal Unit | 388.70 BTU/hr (Access) | |
| Notes |
|
|
| Temperature | Operating Temperature | 0°C to 35°C (32°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Certification |
|
|
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more) | |
| Environment | RoHS Compliant | |
| Packaging Content |
|
|
| Optional Accessories |
|
|
| Notes | Installing memory modules with differing capacities is not recommended. Check the Hardware Installation Guide of your Synology product for recommended memory configurations. | |
| GTIN | 4711174724796 |
|---|
