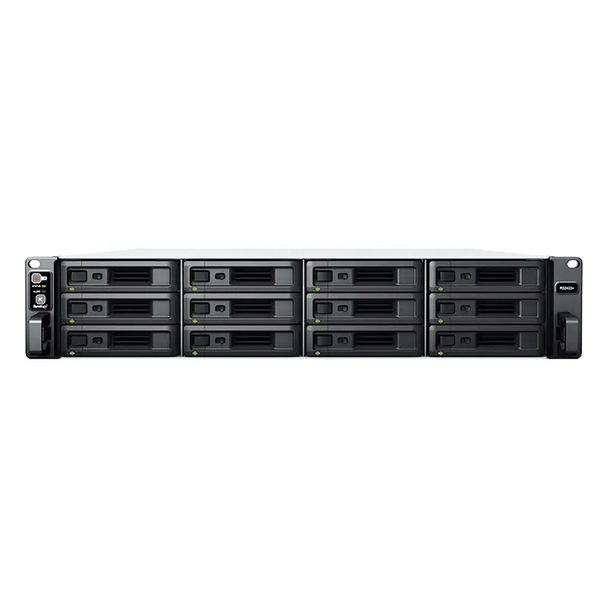

Synology RackStation RS2423+ 12-Bay 2U Scalable NAS Ryzen CPU 8GB RAM

CPU

CPU Model

AMD Ryzen V1780B

CPU Quantity

1

CPU Architecture

64-bit

CPU Frequency

4-core 3.35 (base) / 3.6 (turbo) GHz

Hardware Encryption Engine (AES-NI)

✓

MEMORY

System Memory

8 GB DDR4 ECC UDIMM

Memory Module Pre-installed

8 GB (8 GB x 1)

Total Memory Slots

2

Maximum Memory Capacity

32 GB (16 GB x 2)

Notes

• Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance.
• Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

STORAGE

Drive Bays

12

Maximum Drive Bays with Expansion Unit

24 (RX1223RP x 1)

Compatible Drive Type*

• 3.5" SATA HDD
• 2.5" SATA SSD

Hot Swappable Drive*

✓

Notes

• It is strongly recommended that you only install drives listed on your device's compatibility list. Storage pool and volume creation processes may fail when using unverified drives. Synology is unable to provide technical support for devices using unsupported components.
• "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

EXTERNAL PORTS

RJ-45 1GbE LAN Port*

2 (with Link Aggregation / Failover support)

RJ-45 10GbE LAN Port

1

USB 3.2 Gen 1 Port*

2

Expansion Port

1

Notes

• This device's 1GbE LAN ports have a maximum transmission unit (MTU) size of 1,500 bytes.
• The USB 3.0 standard was renamed to USB 3.2 Gen 1 by the USB Implementers Forum (USB-IF) in 2019.

PCIE

PCIe Expansion

1 x Gen3 x8 slot (x4 link)

FILE SYSTEM

Internal Drives

External Drives

APPEARANCE

Form Factor (RU)

2U

Size (Height x Width x Depth)

RS2423+ :88 mm x 482 mm x 552 mm

Weight

RS2423+ :11.5 kg

Rack Installation Support*

4-post 19" rack (Synology Rail Kit - RKS-02)

Notes

The rail kit is sold separately

OTHERS

System Fan

60 mm x 60 mm x 3 pcs

Fan Speed Mode

• Full-Speed Mode
• Cool Mode
• Quiet Mode

Easy Replacement System Fan

✓

Power Recovery

✓

Noise Level*

RS2423+ :52.3 dB(A)

Scheduled Power On / Off

✓

Wake on LAN / WAN

✓

Power Supply Unit / Adapter

RS2423+ :500 W

Redundant Power Supply

RS2423+ :-

AC Input Power Voltage

100 V to 240 V AC

Power Frequency

50/60 Hz, Single Phase

Power Consumption

RS2423+ :119.95 W (Access) 46.21 W (HDD   Hibernation)

British Thermal Unit

RS2423+ :409.56 BTU/hr (Access) 157.78 BTU/hr (HDD Hibernation)

Notes

• Noise Level Testing Environment: A Synology NAS loaded with Synology 480GB SAT5200-480G solid-state drive(s) in idle state. Each G.R.A.S. type 40AE microphone is placed at a 1-meter distance from the front and rear of a Synology NAS. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Operating Temperature

0°C to 35°C (32°F to 95°F)

Storage Temperature

-20°C to 60°C (-5°F to 140°F)

Relative Humidity

5% to 95% RH

Certification

FCC

CE

BSMI

VCCI

RCM

UKCA

EAC

CCC

KC

UL

Environment

RoHS Compliant

Packaging Content

Main Unit X 1

Accessory Pack X 1

AC Power Cord X 1

Quick Installation Guide X 1
