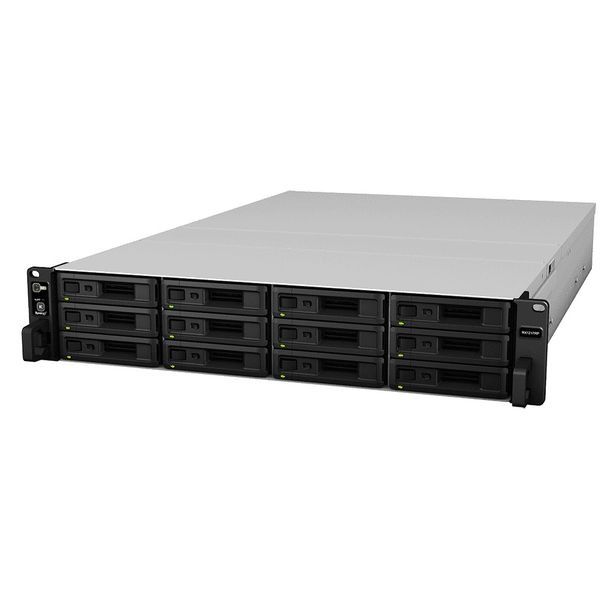

Synology RX1217RP Synology Expansion Unit 12-Bay 3.5' Diskless NAS
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
Volume expansion & backup
When drive capacity is running low on a Synology RackStation, Synology RX1217/RX1217RP offers an easy way to immediately expand storage by providing 12 additional drive slots. The RAID volume on the Synology RackStation can be expanded directly without having to reformat the existing hard drives, ensuring service continuity during the expansion process. To ensure 24/7 service uptime, Synology RX1217RP is equipped with redundant power supplies, allowing automatic failover support if one of the PSUs fail.
When created as a separate volume, Synology RX1217/RX1217RP also serves as an additional local backup destination for Synology RackStations.
Reliable plug-and-use design
Synology RX1217/RX1217RP securely connects to Synology RackStation servers with a high-bandwidth expansion cable, ensuring maximum data throughput and smooth operation — as if they are part of the internal drives of Synology RackStation. SATA 6Gb/s interface ensures the installed drives provide high quality, outstanding data processing performance.
Green & easy to manage
Hibernation mode can be manually configured to start automatically when the system has been inactive for a period of time. This not only saves energy but also extends the lifespan of hard drives. RX1217/RX1217RP will also smartly power on/off with the attached RackStation, so no user intervention is needed to keep this system running smartly and efficiently.
Specifications
| Hardware Specifications | ||
| Applied Models | Supports creating volumes across different units | 19 series:RS1619xs+ |
| 18 series:RS3618xs, RS2818RP+, RS2418RP+, RS2418+ | ||
| 17 series:RS4017xs+, RS3617xs+, RS3617RPxs, RS3617xs | ||
| 16 series:RS2416RP+, RS2416+ | ||
| 14 series:RS3614xs+, RS3614RPxs, RS3614xs, RS2414RP+, RS2414+ | ||
| 13 series:RS3413xs+ | ||
| 12 series:RS3412RPxs, RS3412xs, RS2212RP+, RS2212+ | ||
| 11 series:RS3411RPxs, RS3411xs, RS2211RP+, RS2211+ | ||
| Notes | To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit. | |
| DSM version requirement: 6.0.1-7393 or later version | ||
| Storage | Drive Bays | 12 |
| Compatible Drive Type* | 3.5" SATA HDD | |
| 2.5" SATA HDD | ||
| 2.5" SATA SSD | ||
| Maximum Internal Raw Capacity | 192 TB (16 TB drive x 12) (Capacity may vary by RAID types) | |
| Hot Swappable Drive | Yes | |
| RAID Management through Synology DSM | Yes | |
| External Ports | Expansion Port | 1 |
| Appearance | Size (Height x Width x Depth) | 88 mm x 430.5 mm x 664 mm |
| 88 mm x 430.5 mm x 692 mm (for RP model) | ||
| Size (Height x Width x Depth) (with server ears) | 88 mm x 482 mm x 696 mm | |
| 88 mm x 482 mm x 724 mm (for RP model) | ||
| Weight | 12.7 kg | |
| 13.4 kg (for RP model) | ||
| Rack Installation Support* | 4-post 19" rack (Synology Rail Kit - RKS1317) | |
| Notes | The rail kit is sold separately | |
| Power | Power Recovery | Synchronized with the Synology RackStation |
| Power Supply Unit / Adapter | 500 W | |
| AC Input Power Voltage | 100 V to 240 V AC | |
| Power Frequency | 50/60 Hz, Single Phase | |
| Power Consumption* | 68.60 W (Access) | |
| 27.45 W (HDD Hibernation) | ||
| 71.3 W (Access) (for RP model) | ||
| 31.2 W (HDD Hibernation) (for RP model) | ||
| British Thermal Unit | 234.23 BTU/hr (Access) | |
| 93.73 BTU/hr (HDD Hibernation) | ||
| 243.52 BTU/hr (Access) (for RP model) | ||
| 106.53 BTU/hr (HDD Hibernation) (for RP model) | ||
| Redundant Power Supply (for RP model) | Yes | |
| Notes | Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). | |
| Temperature | Operating Temperature | 5°C to 35°C (40°F to 95°F) |
| Storage Temperature | -20°C to 60°C (-5°F to 140°F) | |
| Relative Humidity | 5% to 95% RH | |
| Others | System Fan | 80 mm x 80 mm x 3 pcs |
| Easy Replacement System Fan | Yes | |
| Noise Level* | 54.6 dB(A) | |
| 54.2 dB(A) (for RP model) | ||
| Notes | Noise Level Testing Environment: Fully loaded with Seagate 1TB ST31000520AS hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% | |
| Certification | FCC | |
| CE | ||
| BSMI | ||
| EAC | ||
| RCM | ||
| KC | ||
| Warranty | 5 Years | |
| Notes | The warranty period starts from the purchase date as stated on your purchase receipt. | |
| Environment & Packaging | ||
| Environment | RoHS Compliant | |
| Packaging Content | Main Unit X 1 | |
| Accessory Pack X 1 | ||
| AC Power Cord X 1 | ||
| AC Power Cord X 2 (for RP model) | ||
| Expansion Cable: Infiniband X 1 | ||
| Quick Installation Guide X 1 | ||
| Optional Accessories | 2.5" SATA SSD: SAT5200 | |
| Rail Kit Sliding: RKS1317 |
| GTIN | 4711174722310 |
|---|
