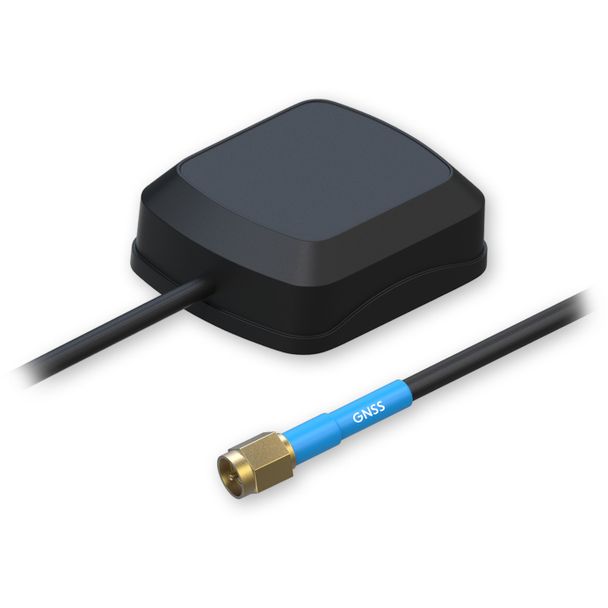

Teltonika PR1KSG30 GNSS Adhesive SMA Antenna
Model
PR1KSG30
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
$19.00
Frequency range
1575 ~ 1602 MHz
Polarization
RHCP
Gain
2.0 dBi
VSWR
2.0
Impedance
50 Ω
Axial ratio
3 dB
LNA Gain
26 ± 2 dB
LNA noise figure
1.5 dB
Supply voltage
2.2 – 5.0 VDC
Current consumption
5 – 15 mA
LNA VSWR
2.0
Cable
RG174, 3000 mm
Connector type
SMA Male
Mounting method
Adhesive
Operating temperature
–40 ~ +85
Operating relative humidity
95 %
RoHS compliant
✓
| GTIN | 4779051840397 |
|---|
