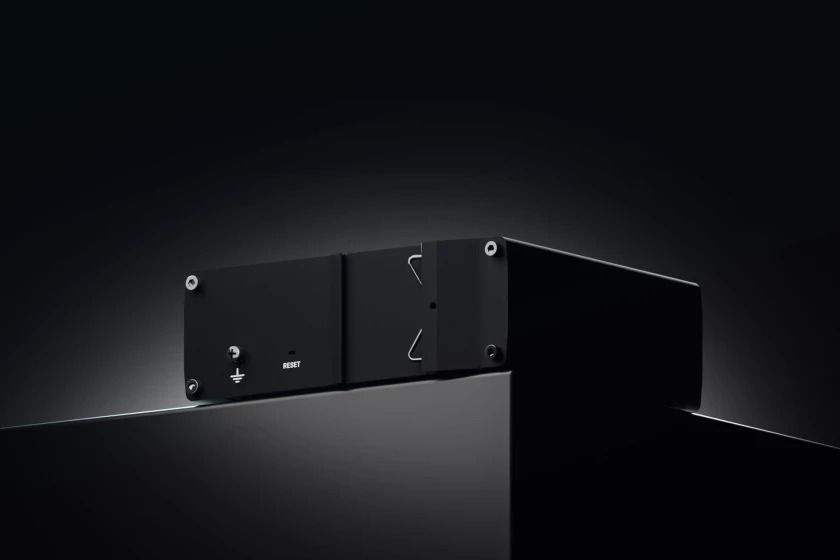

Teltonika TSW212 Managed Ethernet Switch
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
-
ETH
Multi-layer managed 8 x ETH ports, 10/100/1000 Mbps supports auto MDI/MDIX crossover
-
Fibre
2 x SFP ports
-
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3z
-
EtherNet/IP
Yes
-
PROFINET (class B)
Yes
-
SNMP V2, V3
Yes
-
LLDP
Yes
-
Network Management
802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN
-
MRP
MRP client role, MRP manager role
-
L2 features
Loop protection, Forwarding table, VLAN, STP/RSTP
-
DHCP
DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards
-
Port Settings
Enable/disable, link speed control, port isolation, EEE (802.3az) management, Port Mirroring
-
L3 Features
Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address
-
Authentication
PAM — preshared key, Radius & TACACS+, IP & login attempts block
-
QOS
Port priority, DSCP priority, 802.1p priority, TOS
-
Scheduling method
SP/WFQ/WRR
-
Bandwidth control
Rate limiting, storm control
-
Traffic Shaper
Port-based shaping
-
Tools
Cable diagnostic, ping, traceroute, nslookup
-
Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation
-
RAM
128MB, DDR3
-
FLASH storage
16 MB serial flash
-
WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
-
FOTA
Update FW
-
RMS
Update FW/configuration for multiple devices at once
-
Keep settings
Update FW without losing current configuration
-
Operating system
TSWOS (OpenWrt based Linux OS)
-
Supported languages
Busybox shell, Lua, C, C++
-
Development tools
SDK package with build environment provided
-
Bandwidth (Non-blocking)
20 Gbps
-
Forwarding rate
14.88 Mpps
-
Packet buffer
512 KB
-
MAC address table size
8K entries
-
Jumbo frame support
10000 bytes
-
Connector
2-pin industrial DC power socket
-
Input voltage range
7 – 57 VDC
-
Power consumption
Idle: < 2.5 W / Max: 6 W
-

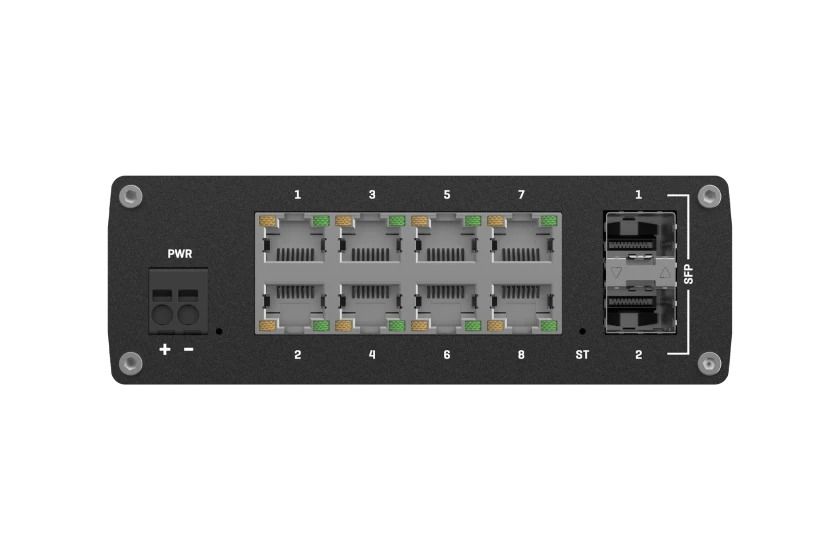

Ethernet
8 x RJ45 ports, 10/100/1000 Mbps
-
Fibre
2 x SFP ports
-
Status LEDs
1 x Power LED, 1 x Aux LED, 16 x ETH status LEDs, 2 x SFP status LEDs
-
Power
1 x 2-pin industrial DC power socket
-
Reset
Software reset button
-
Other
Â1 x Grounding screw
-
Casing material
Anodized aluminum housing and panels
-
Dimensions (W x H x D)
132 x 44.2Â x 122.2 mm
-
Weight
615 g
-
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
-
Operating temperature
-40 °C to 75 °C
-
Operating humidity
5% to 95% non-condensing
-
Ingress Protection Rating
IP30
-
Regulatory
CE, UKCA, RCM, ANRT, FCC, IC, CB, WEEE, RoHS, REACH, SDPPI (POSTEL)
-
Standards
EN 55032:2015 + A11:2020 + A1:2020
EN 55035:2017 + A11:2020
EN IEC 61000-3-2: 2019 + A1:2021
EN 61000-3-3: 2013 + A1:2019 + A2:2021
-
ESD
EN 61000-4-2:2009
-
Radiated Immunity
EN IEC 61000-4-3:2020
-
EFT
EN 61000-4-4:2012
-
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
-
CS
EN 61000-4-6:2014
-
DIP
EN 61000-4-11:2020
-
Standards
CE: EN IEC 62368-1:2020 + A11:2020
RCM: AS/NZS 62368.1:2022
CB: IEC 62368-1:2018
| GTIN | 4779051841370 |
|---|
