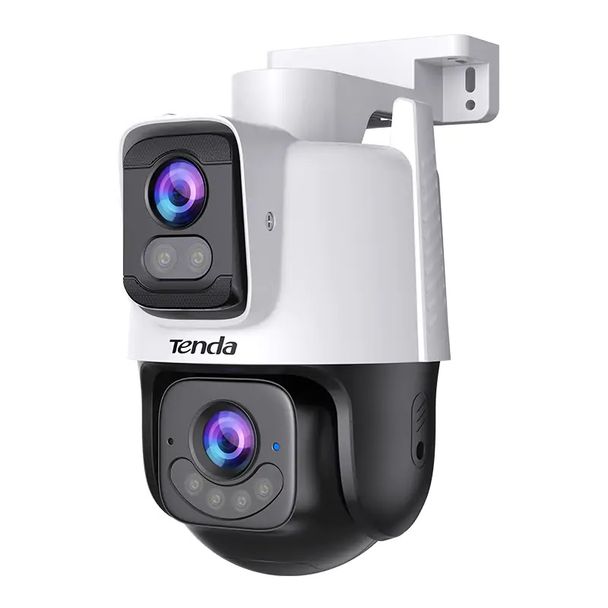

Tenda RH9-WCA 6MP Dual-lens Linkage Outdoor Wi-Fi Pan/Tilt Camera
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
SPECIFICATIONS
|
CAMERA |
|
|
Image Sensor |
1/3 Progressive Scan CMOS sensor |
|
Day and Night |
ICR type |
|
Bracket Angle Adjustment |
Pan：0°to 260° |
|
LENS |
|
|
Focal Length |
Fixed Lens：4mm PT Lens：6mm |
|
Aperture |
Fixed Lens：F1.6 PT Lens：F1.6 |
|
FOV |
Fixed Lens：Horizontal FOV: 82.3°, Vertical FOV: 44.7°, Diagonal FOV: 97.4° PT Lens：Horizontal FOV: 51.8°, Vertical FOV: 28.2°, Diagonal FOV: 60.4° |
|
ILLUMINATOR |
|
|
Supplementary Light |
6 IR Lights, 6 Spotlights |
|
Supplementary Light Distance |
Up to 30 m/100 ft (depending on environment) |
|
IR Wavelength |
850nm |
|
Night Vision Mode |
Smart Mode, Full Color Mode, Black & White Mode |
|
Video |
|
|
Video Encoding Format |
Fixed Lens：H.265, H.264 PT Lens：H.265, H.264 |
|
Main Stream Resolution |
Fixed Lens：2304 ×1296, 1920 × 1080, 1280 × 720 PT Lens：2304 ×1296, 1920 × 1080, 1280 × 720 |
|
Sub Stream Resolution |
Fixed Lens：640 × 360 PT Lens：640 × 360 |
|
Frame Rate |
Fixed Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps PT Lens：1-25fps (2304 × 1296 1-18fps), Default 18fps |
|
Bit Rate |
Fixed Lens：512kbps -- 4096kbps PT Lens：512kbps -- 4096kbps |
|
Bit Rate Control |
Fixed Lens：CBR,VBR PT Lens：CBR,VBR |
|
AUDIO |
|
|
Audio Encoding Format |
G.711A, G.711U, AAC |
|
Audio Sampling Rate |
8 kHz |
|
Audio Communication |
Two-way Audio, Voice Input |
|
IMAGE |
|
|
Image Enhancement |
DWDR, BLC, HLC, 3D DNR |
|
Privacy Mask |
4 Areas |
|
NETWORK |
|
|
Ethernet Port |
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
|
ONVIF |
Support |
|
Protocols |
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP, WebSockets |
|
Web Browser |
Plug-in free live view: Chrome, Edge, Opera |
|
PAN&TILT |
|
|
Pan Movement Range |
0°--355° |
|
Tilt Movement Range |
0°--90° |
|
Preset |
6 |
|
Patrol |
Panoramic Patrol, Preset Patrol |
|
WI-FI |
|
|
Antenna |
Internal antenna |
|
Wireless Standard |
IEEE 802.11 b/g/n/ax |
|
Transmission Rate |
Up to 287Mbps |
|
Channel Width |
20/40 MHz |
|
Modulation |
DSSS/OFDM/OFDMA |
|
Frequency Band |
2.4GHz: 2412MHz-2472MHz(CH1-CH13) |
|
Transmit Power |
2.4GHz: <0.1W(EIRP) |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
ALARM |
|
|
Smart Detection |
Both fixed lens and PT lens are supported motion detection, human detection, vehicle detection, line crossing Detection, intrusion detection |
|
Smart Linkage |
Sound&light Alert, Dual-lens Linkage Tracking |
|
DIY Audio |
3 Customized Audios |
|
INTERFACE |
|
|
Audio Input |
Built-in MIC, adjustable microphone volume |
|
Audio Output |
Built-in Speaker, 76 dBA (Alarm sound at 1 meter), adjustable sound level |
|
Storage |
Built-in Micro SD Card Slot, Up to 512 GB |
|
Reset Button |
Support |
|
LED Indicator |
Dual Color(red & blue) LED Indicator |
|
GENERAL |
|
|
Material |
Plastic12V DC,1A,Ø5.5mm&Ø2.1mm Power Plug |
|
Product Dimension |
203mm x 122mm x 162mm(8.0" × 4.8" × 6.4") |
|
Package Dimension |
240mm x 145mm x 193mm(9.4'' × 5.7'' × 7.6'') |
|
Product Weight |
527g(1.16lb) |
|
With Package Weight |
802g(1.77lb) |
|
Protection Level |
IP65 |
|
Installation Method |
Wall Mounting, Ceiling Mounting, Pole Mounting |
|
Certification |
CE, RoHS, FCC, RCM, UKCA |
|
Temperature |
Operating Temperature: -30°C ~ 60°C (-22°F ~ 140°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
|
Humidity |
Operating Humidity: 10% ~ 95% RH (non-condensing) Storage Humidity: 3% ~ 95% RH (non-condensing) |
|
Package Contents |
Camera Power Adapter (cord length: 3m) Installation Template Mounting Bracket Mounting Accessories Kit Waterproof Kit Quick Installation Guide |
