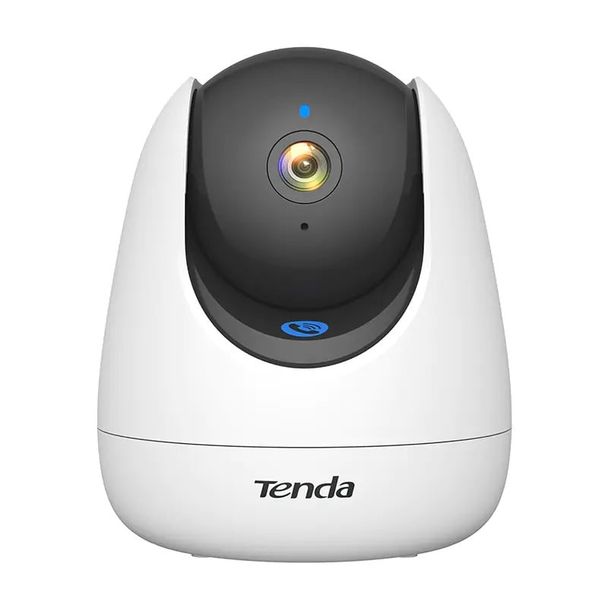

Tenda RP7 V2.0 5MP Super HD Wireless Security Pan/Tilt Camera
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
SPECIFICATIONS
|
CAMERA |
|
|
Image Sensor |
1/3 Progressive Scan CMOS sensor |
|
Day and Night |
ICR type |
|
LENS |
|
|
Focal Length |
4mm |
|
Aperture |
F2.0 |
|
FOV |
Horizontal : 83.3°, Vertical : 51.3°, Diagonal : 90.6° |
|
ILLUMINATOR |
|
|
Supplementary Light |
2 IR Lights |
|
Supplementary Light Distance |
Up to 10 m/32 ft (depending on environment) |
|
IR Wavelength |
850nm |
|
Night Vision Mode |
Black & White Mode |
|
VIDEO |
|
|
Video Encoding Format |
H.265, H.264 |
|
Main Stream Resolution |
2880 x 1620，2560 x 1442304 × 1296, 1920 × 1080, 1280 × 720 |
|
Sub Stream Resolution |
640 x 360 , 352 x 288 , 320x240 |
|
Frame Rate |
1-30fps,Default 20fps |
|
Bit Rate |
512kbps -- 4096kbps |
|
Bit Rate Control |
CBR,VBR |
|
AUDIO |
|
|
Audio Encoding Format |
G.711A, G.711U, AAC |
|
Audio Sampling Rate |
8 kHz |
|
Audio Communication |
Two-way Audio, One-touch Call |
|
IMAGE |
|
|
Image Enhancement |
DWDR, BLC, HLC, 3D DNR |
|
Privacy Mask |
4 Areas |
|
NETWORK |
|
|
Ethernet Port |
1 RJ45, 10Mbps/100Mbps auto-negotiation Ethernet port |
|
ONVIF |
Support |
|
Protocols |
TCP/IP, UDP, ICMP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, ARP |
|
Client |
TDSEE (mobile phone), TDSEE STUDIO (PC) |
|
Web Browser |
Chrome, Edge, Opera |
|
PAN&TILT |
|
|
Pan Movement Range |
0°--355° |
|
Tilt Movement Range |
-65°--90° |
|
Preset |
6 |
|
Patrol |
Panoramic Patrol, Preset Patrol |
|
WI-FI |
|
|
Antenna |
Internal antenna |
|
Wireless Standard |
IEEE 802.11 b/g/n/ax |
|
Transmission Rate |
Up to 287Mbps |
|
Channel Width |
20/40 MHz |
|
Modulation |
DSSS/OFDM/OFDMA |
|
Frequency Band |
2.4GHz: 2412MHz-2472MHz(CH1-CH13) |
|
Transmit Power |
2.4GHz: <0.1W(EIRP) |
|
Security |
64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK |
|
ALARM |
|
|
Smart Detection |
Motion Detection, Tampering Detection, Human Detection, Cry Detection |
|
Smart Linkage |
Sound&light Alert, Human Tracking |
|
DIY Audio |
3 Customized Audios |
|
INTERFACE |
|
|
Audio Input |
Built-in MIC, adjustable microphone volume |
|
Audio Output |
Built-in Speaker, 73 dBA (Alarm sound at 1 meter), adjustable sound level |
|
Storage |
Built-in Micro SD Card Slot, Up to 512GB |
|
Reset Button |
Support |
|
LED Indicator |
Dual Color (red & blue) LED Indicator |
|
GENERAL |
|
|
Power |
5 V 1A, Type-C Power Plug |
|
Material |
Plastic |
|
Smart Integration |
Amazon Alexa |
|
Product Dimension |
103mm x 88mm x 88mm (4.1'' ×3.5'' × 3.5'') |
|
Package Dimension |
100mm x 100mm x 165mm (4.0'' ×4.0'' × 6.5'') |
|
Product Weight |
200g (0.44lb) |
|
With Package Weight |
370g (0.82lb) |
|
Installation Method |
Desktop, Ceiling Mounting |
|
Certification |
CE, RoHS, FCC, RCM, UKCA |
|
Temperature |
Operating Temperature: -10°C ~ 45°C (14°F ~ 113°F) Storage Temperature: -40°C ~ 70°C (-40°F ~ 158°F) |
|
Humidity |
Operating Humidity: 10% ~ 95% RH (non-condensing) Storage Humidity: 3% ~ 95% RH (non-condensing) |
|
Package Contents |
Camera Power Adapter (cord length: 1.5m) Installation Template Mounting Bracket Mounting Accessories Kit Quick Installation Guide |
