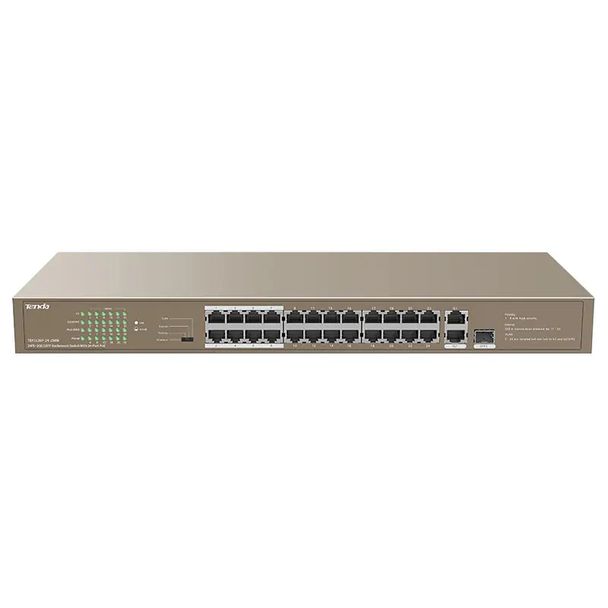

Tenda TEF1126P-24-250W 24-Port 10/100Mbps 1-Port Gigabit PoE Switch with SFP

Network standards

IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z, IEEE802.3x, IEEE802.3af/at

LED Indicator

24 * Link/Act LEDs

1 * G1 LED

1 * G2/SFP2 LED

1 * PoE-MAX LED

1 * Power LED

Interfaces

24 * 10/100 Base-TX Ethernet ports (Data/Power)

2 * 10/100/1000 Base-T Ethernet ports (Data)

1 * 1000 Base-X SFP port (Combo)

Transmission media

Recommended: CAT5/5e UTP or better

Fan quantity

1

Dimension

440.0mmx178.8mmx44.0mm

Level of protection

Lightning protection for ports: 6kV

Lightning protection for power: 6kV

ESD:

Air discharge: ±10kV

Contact discharge: ±8kV

Forwarding mode

Store-and-forward

Switch capacity

8.8 Gbps

Packet forwarding rate

6.55 Mpps

Buffer

4M

MAC address table

16K

Jumbo frame

N/A

PoE budget

Single port: AF: 15.4W, AT: 30W

Whole device: 230W

Power consumption

/

Input voltage

100-240V AC 50/60Hz

Mounting

Desktop mounting: support

Wall mounting: support

Rack mounting : support

Environment

Operating Temperature: 0℃~45℃

Storage Temperature: -40℃~70℃

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Certification

FCC、CE、RoHS
