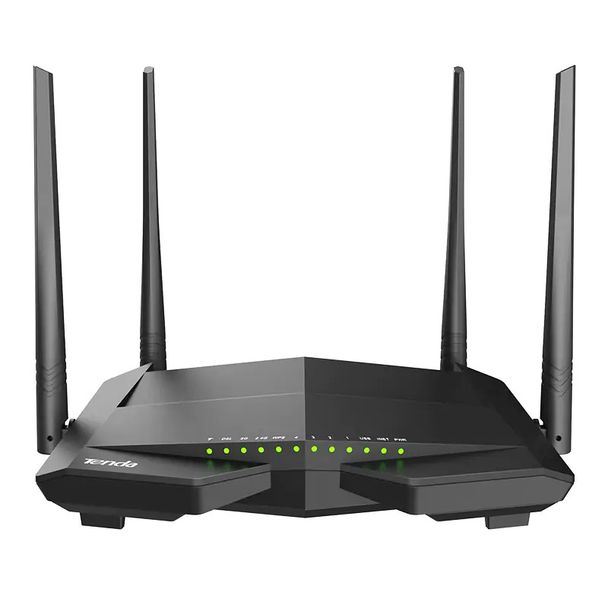

Tenda V15 AX1500 Dual-band Wi-Fi 6 Gigabit VDSL/ADSL Modem Router
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 7 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
SPECIFICATIONS
|
HARDWARE |
|
|
Interfaces |
3 *10/100/1000 RJ45 LAN Ports 1 *10/100/1000 RJ45 LAN/WAN Port 1 *RJ11 Port 1 * USB 2.0 Port |
|
Button |
WPS&Wi-Fi RST Power |
|
External Power Supply |
12V 1.5A |
|
IEEE Standards |
IEEE802.11b/g/n, IEEE802.11ac, IEEE802.11ax, IEEE 802.3, 802.3u, IEEE 802.1Q |
|
VDSL2 Standards |
ITU G.993.2, Up to 17a /30a/35b profile ITU-T G.993.5 (G.vector) ITU-T G.998.4 (G.INP) |
|
ADSL Standards |
Full-rate ANSI T1.413 Issue 2 ITU-T G.992.1(G.DMT) ITU-T G.992.2(G.Lite) ITU-T G.994.1 (G.hs) |
|
ADSL2 Standards |
ITU-T G.992.3 (G.dmt.bis) |
|
ADSL2+ Standards |
ITU-T G.992.5 |
|
Dimensions ( Wx D x H) |
220x141.6x59mm |
|
Antenna Type |
4 * 5 dBi Antenna |
|
WIRELESS |
|
|
Wireless Standards |
IEEE 802.11a/n/ac/ax 5GHz IEEE 802.11b/g/n 2.4GHz |
|
Frequency |
20M/40M/80M |
|
Signal Rate |
300Mbps at 2.4GHz 1201Mbps at 5GHz |
|
Wireless Functions |
Enable/Disable Wireless Radio Guest network Access Control WPS MESH |
|
Wireless Security |
None, WPA, WPA2, WPA/WPA2, WPA3 |
|
Transmission Power |
2.4GHz <20dBm(EIRP) 5GHz <23dBm(EIRP) |
|
Wireless Schedule |
Support |
|
SOFTWARE |
|
|
Advanced Features |
PVC Configuration DSL Settings Routing QoS( Based IP ) |
|
Security |
MAC Filtering IP/Port Filtering URL Blocking DOS |
|
Operating Modes |
VDSL/ADSL Modem Router Wireless Router |
|
Management |
Web Based Conguration(HTTP) Remote management command Line Interface SSL for TR-069 SNMP v1/2c Web Based Firmware Upgrade Diagnostic Tools |
|
DHCP |
DHCP Server Client List Address Reservation |
|
Port Forwarding |
Port Forwarding, UPnP, DMZ |
|
Dynamic DNS |
Support |
|
VPN |
PPTP L2TP IPsec |
|
Protocols |
Supports IPv4 and IPv6 |
|
ATM/PPP Protocols |
ATM Forum UNI3.1/4.0 PPP over ATM (RFC 2364) PPP over Ethernet (RFC2516) IPoA (RFC1577/2225) MER\IPoE (RFC 1483 Routed) Bridge (RFC1483 Bridge) PVC – Up to 8 PVCs |
|
Guest Network |
Support |
|
CERTIFICATIONS |
|
|
Certifications |
CE、RoHS |
|
ENVIRONMENT |
|
|
Storage Temperature |
-40℃ ~ 70℃ |
|
Operation Temperature |
0℃~40℃(32℉ ~104℉) |
|
Operating Humidity |
10% ~ 90% (Non-condensing) |
|
Storage Humidity |
5% ~ 90% (Non-condensing) |
|
PACKAGE CONTENTS |
|
|
Package Contents |
AX1500 Dualband Wi-Fi 6 Gigabit VDSL Modem Router*1 External Splitter*1 Power Adapter*1 RJ11 DSL Cable*2 RJ45 Ethernet Cable*1 Quick Installation Guide*1 |
