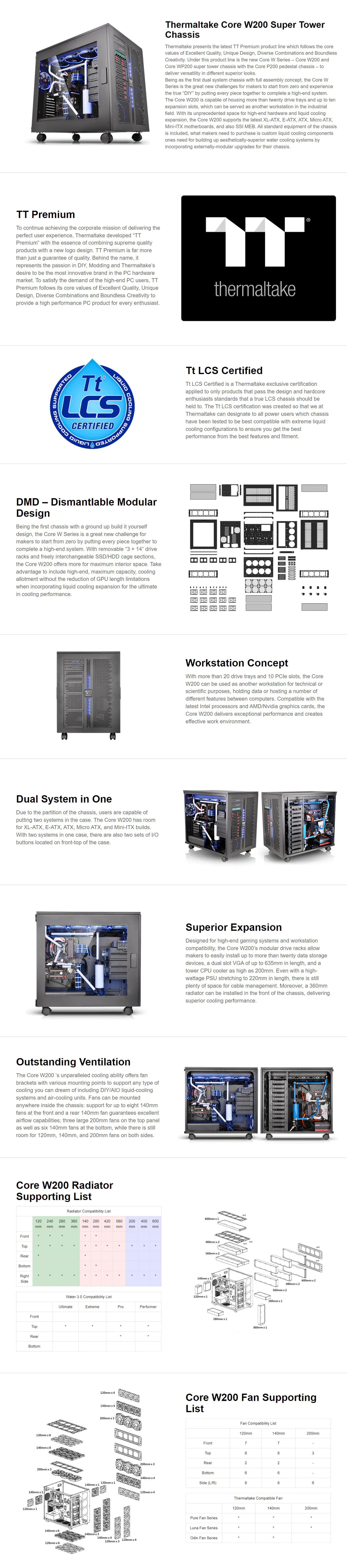

Thermaltake CA-1F5-00F1WN-00 Core W200 Dual Motherboard XL-ATX Super Tower Case

Series

Core

Case type

Super Tower

Dimension (H X W X D)

677 x 475 x 678 mm
(26.7 x 18.7 x 26.7 inch)

Net weight

28.9 kg / 63.7 lb

Panel

Transparent Window

Color

Exterior & Interior : Black

Material

SPCC

Drive bays
-Accessible
-Hidden

-Accessible
3 x 5.25’’
-Hidden
10 x 3.5’’ or 2.5’’ (HDD Cage)
4 x 3.5’’ or 2.5’’ (Behind the M/B tray)

Expansion slots

10

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX),
12” x 13” (E-ATX), 13.6” x 10.4” (XL-ATX)

LCS upgradable

Supports 1/2”、3/8”、1/4” water tube

I/O port

USB 3.0 x 8, HD Audio x 2

PSU

Standard PS2 PSU x 2 (optional)

Fan support

Front:
7 x 120mm , 7 x 140mm
Top:
8 x 120mm , 8 x 140mm , 3 x 200mm
Rear:
2 x 120mm , 2 x 140mm
Bottom:
6 x 120mm , 6 x 140mm
Right Side:
8 x 120mm , 8 x 140mm , 6 x 200mm

Radiator support

Front:
1 x 360mm
Top:
2 x 480mm , 2 x 560mm , 1 x 600mm
Rear:
1 x 120mm , 1 x 140mm
Bottom:
2 x 280mm
Right:
2 x 480mm , 2 x 560mm , 2 x 600mm

Clearance

CPU cooler height limitation:
200mm
VGA length limitation:
470mm(with HDD rack)
635mm(without HDD rack)
PSU length limitation:
180mm (With Three Bottom Fan)
220mm (With Two Bottom Fan)
