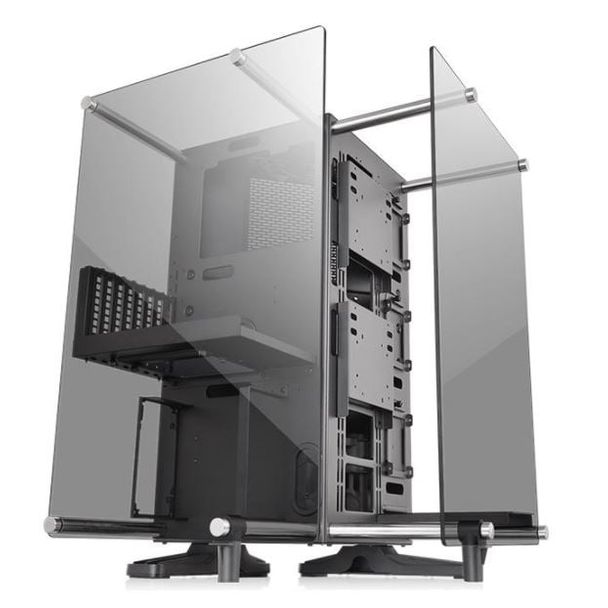

Thermaltake CA-1J8-00M1WN-00 Core P90 Tempered Glass Edition Mid Tower Chassis
Location | Availability |
---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
The Core P90 is the latest evolution of the award-winning Core P series of open-frame chassis. The P90 combines the jaw-dropping looks of our previous open-frame chassis, with an all new structure that’s more versatile than ever before.
From awesome GPUs to intricate LCS systems, the P90 is designed to show off your hardware at any angle.
*A 300mm PCI Express Extender Cable is included.

*The image is for reference only.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiast standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

The Core P90 is split into three areas, with motherboard and GPU on one side, cooling on the other, and a third internal area for storage. This brand new design puts every element of your build on display behind two pieces of 5mm thick tempered glass.
The Core P90 is designed to stand upright or lay flat, giving you more options to show off your build. Whether it’s on your gaming desk or in its own RGB shelf, the P90 is made to be seen.
The fully modular concept minimizes the hassle of system installation and removal. The P90 is designed to be totally customised time and time again. The open frame makes it easy to install and remove parts, while keeping your components open and cool.

The Core P90 supports motherboards up to standard ATX, a tower CPU cooler with maximum height 180mm, a VGA of up to 320mm in length and a PSU with up to 220mm length.
For storage, the P90 also supports up to two 3.5” and three 2.5” storage devices or up to five 2.5” inside the right panel and two 3.5” or 2.5” behind M/B tray at the same time.
Whether you’re cooling one CPU, or adding two GPUs to your loop, the Core P90 has you covered.
With space for up to a 480mm radiator, full-sized reservoir and vertical GPU placement, the Core P90 is the ultimate showcase for LCS systems.
* Built-in PCI Express Extender Cable

*The image is for reference only.
To help you get the most out of your build, the Core P90 comes with a PCI-E express extender cable, meaning you can display your GPU vertically out of the box. Using our included PSU mounts, you can also display your RGB power supply vertically for the ultimate RGB experience.
Thermaltake TT Premium PCI-E 3.0 Extender (Optional) – Supports a wide range of GPU solutions including multiple GPU systems. Available in 300mm, 600mm and 1000mm length.
*Thermaltake makes no representation or warranty that the included standard riser cable will be suitable for any specified computer system without further testing. If you need any technique supports, please contact Thermaltake Global Service Center.
Radiator Supporting List
|
|
Fan Supporting List
|
|
P/N | CA-1J8-00M1WN-00 |
Case Type | Mid Tower |
Dimension (H x W x D) | 470 x 470 x 615 mm (18.5 x 18.5 x 24.2 inch) |
Net Weight | 17.2 kg / 37.9 lb |
Side Panel | 5mm Tempered Glass x 2 (Left & Right) |
Color | Black |
Material | SPCC |
Cooling System | - |
Drive Bays -Accessible -Hidden |
3 x 2.5’’ (HDD Bracket) ; 2 x 3.5” or 2 x 2.5” (Optional) 2 x 3.5’’ or 2 x 2.5’’ (Behind the M/B tray) |
Expansion Slots | 8 |
Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
I/O Ports | USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1 |
PSU | Standard PS2 PSU (optional) |
LCS Upgradable | - |
Fan Support | Right Side: 4 x 120mm 3 x 140mm |
Radiator Support | Right Side: 1 x 480mm 1 x 420mm |
Clearance | CPU cooler height limitation: 180mm VGA length limitation: 320mm PSU length limitation: 220mm |
* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
