Thermaltake CA-1M7-00M1WN-00 Level 20 ARGB Window Black ATX Case
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | Available in 24 Hours |

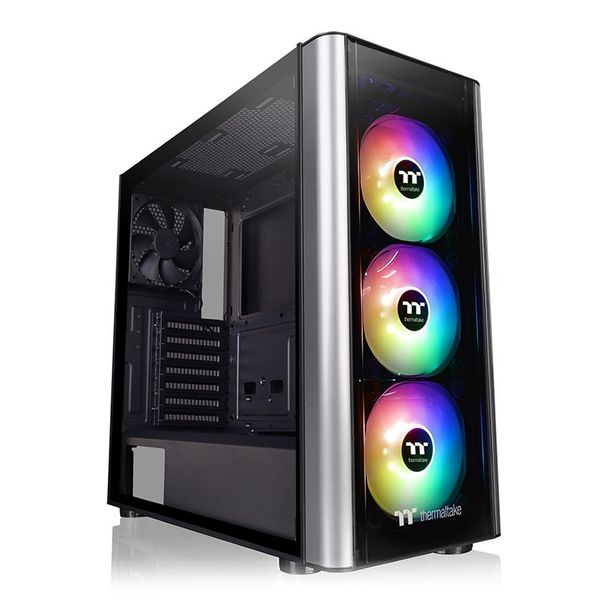

Thermaltake Level 20 MT ARGB is the premium mid tower synchronized with motherboard in the level 20 family. Level 20 MT ARGB features enlarged side panel window, ATX motherboard support and a power cover.
The Level 20 MT ARGB comes preinstalled with three 120mm 5V ARGB LED front fans and one 120mm rear fan. The front fans are addressable to deliver 16.8 million-color RGB illumination and unparalleled ventilation. This model comes ready to sync with RGB capable motherboards from Asus, Gigabyte, MSI and AsRock.
The Level 20 MT ARGB takes our latest case innovations and wraps them in an ultra-modern style that’s utterly unique in the case market today. Stand out from the crowd with the Level 20.
*The image is for reference only.
*Three 120mm 5V addressable ARGB LED front fans and one 120mm rear fan are included.
To continue achieving the corporate mission of delivering the perfect user experience, Thermaltake developed “TT Premium” with the essence of combining supreme quality products with a new logo design. TT Premium is far more than just a guarantee of quality. Behind the name, it represents the passion in DIY, Modding and Thermaltake’s desire to be the most innovative brand in the PC hardware market. To satisfy the demand of the high-end PC users, TT Premium follows its core values of Excellent Quality, Unique Design, Diverse Combinations and Boundless Creativity to provide a high performance PC product for every enthusiast.
Preinstalled with three 120mm 5V ARGB LED front fans featuring hydraulic bearing, 9 addressable LEDs and 16.8 million-color illumination to guarantee high airflow and custom system designs to show off your PC design skills.
The 5V ARGB LED fans can be controlled using a simple interface built into the I/O panel that cycles through 7 different lighting modes and a range of different color options.
*Long press on RGB button for 3 seconds , fans will blink twice which now are controlled by MB software, and vice versa.
*The image is for reference only.
*Three 120mm 5V addressable ARGB LED front fans and one 120mm rear fan are included.
Sync with Motherboard RGB Software
Designed to synchronize with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and AsRock Polychrome. It supports motherboards that have a 5V addressable RGB header, allowing you to control the lights directly from the above-mentioned software without installing any extra lighting software or controllers. For more details, please visit ASUS, GIGABYTE, MSI and AsRock official websites.
Aura Addressable Header
AsusDigital Pin Header
GIGABYTEJRAINBOW Header
MSIAddressable RGB LED Header
ASRock
*Caution: the motherboard signal connector only supports 5V header.
Thanks to the built-in 5V RGB switch board, the Level 20 MT ARGB is able to deliver the addressable RGB lighting customization through the I/O port RGB button or the synchronization with ASUS Aura Sync, GIGABYTE RGB Fusion, MSI Mystic Light Sync and ASRock Polychrome motherboards.
The Level 20 MT ARGB is designed with a power cover, which can be used to organize unused cables to make for a tidy-looking system.
*The image is for reference only.
*Three 120mm 5V addressable ARGB LED front fans and one 120mm rear fan are included.
Fitted with a superb top filter, side filter and bottom PSU filter. Providing excellent protection and reduction against dirt and dust.
Top Filter
Bottom PSU Filter
Side Filter
The left side of the Level 20 MT ARGB features a full length 4mm thick tempered glass panel, which is more durable and less prone to scratches and dust than acrylic panels.
*The image is for reference only.
*Three 120mm 5V addressable ARGB LED front fans and one 120mm rear fan are included.
The Level 20 MT ARGB supports up to ATX motherboards, CPU coolers up to 170mm in height, VGA lengths up to 366mm without radiator on the right side and PSU sizes up to 170mm in length.
*The image is for reference only.
*Three 120mm 5V addressable ARGB LED front fans and one 120mm rear fan are included.
Preinstalled with three 120mm ARGB fans and one 120mm rear fan for optimal cooling performance, this case can house up to three 120mm front fans, one 140mm or two 120mm fans on the top and a radiator size up to 360mm. This allows the user at the same time to build a complete high-end system to suit their needs.
*The image is for reference only.
*Two 200mm 5V addressable ARGB LED front fans and one 140mm rear fan are included.
|
||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||
| P/N | CA-1M7-00M1WN-00 |
| Case Type | Mid Tower |
| Dimension (H x W x D) | 455 x 204 x 471mm (17.9 x 8.0 x 18.54 inch) |
| Net Weight | 6.75 kg / 14.88 lb |
| Side Panel | 4mm Tempered Glass x 2 (Left & Front) |
| Color | Exterior & Interior : Black |
| Material | SPCC |
| Cooling System | Front (Intake): 120 x 120 x 25mm Addressable RGB fan (1000rpm, 27.2 dBA) x 3 Rear (exhaust): 120 x 120 x 25 mm fan (1000rpm, 26 dBA) x 1 |
| Drive Bays -Accessible -Hidden |
1 x 2.5’’(HDD Bracket); 2 x 2.5” 2 x 3.5’’ or 2.5”(HDD Cage); 1 x 2.5”(HDD Bracket) |
| Expansion Slots | 7 |
| Motherboards | 6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX) |
| I/O Ports | USB 3.0 x 2, HD Audio x 1, RGB Switch x 1 |
| PSU | Standard PS2 PSU (optional) |
| Fan Support | Front: 3 x 120mm Top: 2 x 120mm, 1 x 140mm Rear: 1 x 120mm Right Side(In front of M/B Tray): 2 x 120mm Bottom(On the power cover): 2 x 120mm |
| Radiator Support | Front: 1 x 360mm Rear: 1 x 120mm Right Side(In front of M/B Tray): 1 x 240mm |
| Clearance | CPU cooler height limitation: 170mm PSD length limitation: 170mm VGA length limitation: 260mm(With radiator on the right side) 366mm(Without radiator on the right side) |
* Specifications are subject to change without notice.
* The product picture(s) is only for your reference, it may differ from the actual product.
| GTIN | 841163006481 |
|---|
