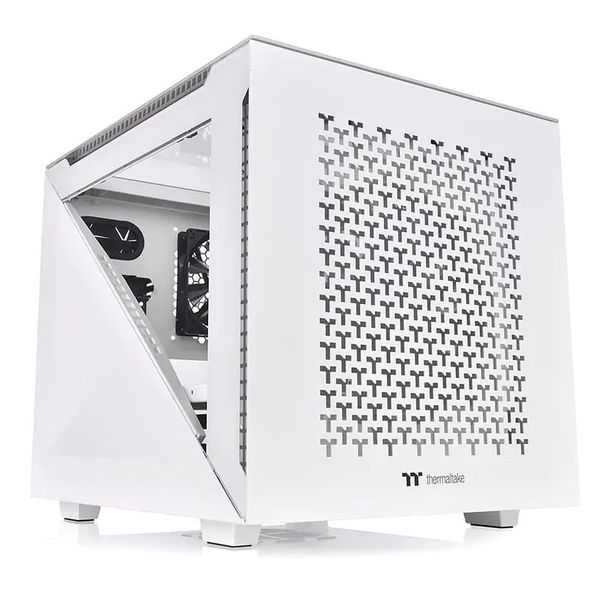

Thermaltake CA-1V1-00S6WN-01 Divider 200 Air Tempered Glass mATX Case Snow Edition

Case type

Micro Case

Dimension (H X W X D)

364.7 x 333.2 x 425.7 mm
(14.4 x 13.1 x 16.8 inch)

Net weight

8.97 kg / 19.78 lbs.

Side panel

3mm Tempered Glass x 2

Color

White

Material

SPCC

Cooling system

Front (intake):
200 x 200 x 30 mm standard fan (800rpm, 13dBA) x 1
Rear(exhaust):
120 x 120 x 25 mm fan (1000rpm, 16 dBA) x 1

Drive bays
-Accessible
-Hidden

3 x 3.5’’, 3 x 2.5’’
or 6 x 2.5”

Expansion slots

5

Motherboards

6.7” x 6.7” (Mini ITX) , 9.6” x 9.6” (Micro ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:
  2 x 120mm, 1 x 120mm
  2 x 140mm, 1 x 140mm
1 x 200mm
Right:
2 x 120mm, 1 x 120mm
2 x 140mm, 1 x 140mm
Rear:
1 x 120mm, 1 x 140mm
Bottom:
2 x 120mm, 1 x 120mm

Radiator support

Front:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Right:
1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm
Rear:
1 x 120mm

Clearance

CPU cooler height limitation:
185mm
VGA length limitation:
310mm (With 27mm radiator)
340mm (Without radiator)
PSU length limitation:
180mm (With Bottom Fan)
200mm (Without Bottom Fan)
