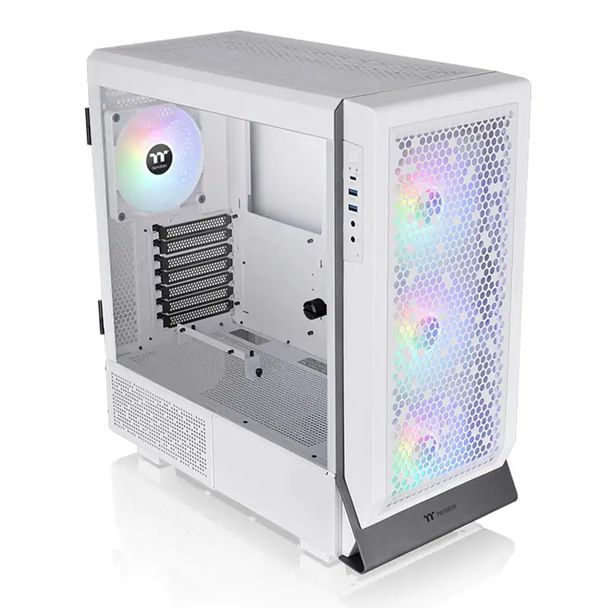

Thermaltake CA-1X5-00M6WN-00 Ceres 500 Tempered Glass ARGB Mid Tower E-ATX Case Snow Edition

Dimension (H X W X D)

525 x 245 x 507.7 mm
(20.7 x 9.6 x 20 inch)

Net weight

10.5 kg / 23.15 lbs.

Side panel

3mm Tempered Glass x 1

Colour

White

Material

SPCC

Cooling system

Front(intake):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 3

Rear(exhaust):
140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Drive bays
-accessible
-hidden

2 x 3.5”, 6 x 2.5”
or 8 x 2.5”

Expansion slots

7 (Rotatable Patented Design)

Motherboards

6.7" x 6.7" (Mini ITX), 9.6" x   9.6" (Micro ATX),
12" x 9.6" (ATX), 12" x 13" (E-ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2,   HD Audio x 1

PSU

Standard PS2 PSU (optional)

Fan support

Front:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm

Top:
3 x 120mm, 2 x 120mm, 1 x 120mm
3 x 140mm, 2 x 140mm, 1 x 140mm

Rear:
1 x 120mm, 1 x 140mm

Radiator support

Front:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 420mm, 1 x 280mm, 1 x 140mm

Top:
1 x 360mm, 1 x 240mm, 1 x 120mm
1 x 280mm, 1 x 140mm

Rear:
1 x 120mm

Clearance

CPU cooler max height: 185mm

VGA max length:
395mm (with radiator)
425mm (without radiator)

PSU max length: 220mm
