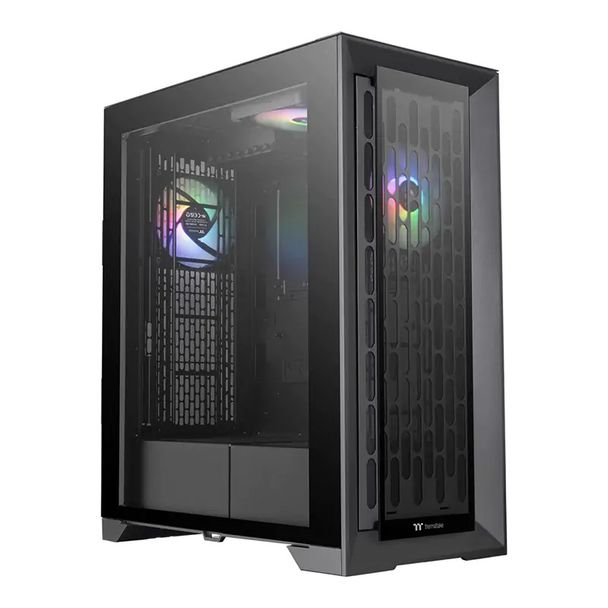

Thermaltake CA-1X8-00F1WN-01 CTE T500 ARGB Tempered Glass Full Tower E-ATX Case Black Edition

Case type

Full Tower

Dimension (H X W X D)

615x 275 x 516 mm

(24.21 x 10.83 x 20.31 inch)

Net weight

15.3 kg / 33.73 lbs.

Panel

4mm Tempered Glass x 2

Colour

Black

Material

SPCC / ABS

Cooling system

Front(intake):

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Top(exhaust):

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Rear(intake):

140 x 140 x 25 mm CT140 ARGB fan (1500rpm, 30.5 dBA) x 1

Expansion slots

7

Motherboards

6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX),

12” x 9.6” (ATX), 12” x 13” (E-ATX)

I/O port

USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1

PSU

Standard PS2 PSU (not included)

Fan support

Front:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Top:

2 x 120mm, 1 x 120mm

2 x 140mm, 1 x 140mm

Right:

1 x 120mm, 1 x 140mm

Rear:

3 x 120mm, 2 x 120mm, 1 x 120mm

3 x 140mm, 2 x 140mm, 1 x 140mm

Bottom:

1 x 120mm, 1 x 140mm

PSU Cover:

1 x 120mm, 1 x 140mm

Radiator support

Front:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 420mm(AIO only), 1 x 280mm, 1 x 140mm

Top:

1 x 120mm(AIO only)

Rear:

1 x 360mm, 1 x 240mm, 1 x 120mm

1 x 280mm, 1 x 140mm

Clearance

CPU cooler max height: 195mm

VGA max length: 385mm

PSU max length: 180mm

Package contents

CTE T500 TG ARGB Full Tower Chassis

3 x 140mm CT140 ARGB fans

4 x Screw #6-32 x 6mm

40 x Screw M3 x 5mm

4 x Stand-off #6-32 x 8mm

20 x Screw #6-32 x 6mm

1 x Nut Setter

2 x Thumb Screw #6-32 x 9mm

4 x Screw Ø 5 x 10mm

4 x Fan Screw #6-32 x 30mm

8 x HDD Rubber

1 x Buzzer

10 x Zip Ties

1 x Bump Bracket

1 x DIY Cover

1 x Top Cover Clip

1 x Bezel Clip
