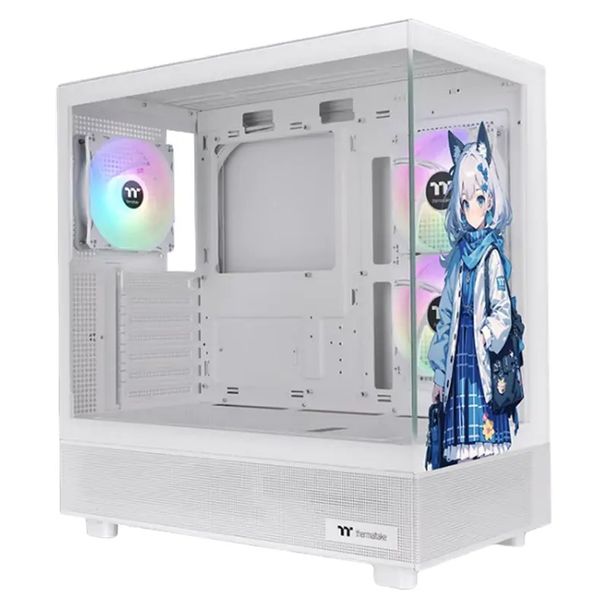

Thermaltake CA-1Y7-00M6WN-02 View 270 SP Edition Tempered Glass Mid-Tower E-ATX Case Snow
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
SPECIFICATIONS
|
Series |
View |
|
Model |
View 270 SP Edition |
|
Case Type |
Mid Tower |
|
Dimension (H x W x D) |
456 x 230 x 454 mm (18 x 9.1 x 17.9 inch) |
|
Net Weight |
6.35 kg / 14 lbs. |
|
Panel |
Tempered Glass x 2 |
|
Color |
White |
|
Material |
SPCC |
|
Cooling System |
Right(intake): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 2
Rear(exhaust): 120 x 120 x 25 mm ARGB Lite fan (1000rpm, 22.3 dBA) x 1 |
|
Drive Bays -Accessible -Hidden |
2 x 3.5”, 1 x 2.5” or 2 x 2.5” |
|
Expansion Slots |
7 |
|
Motherboards |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX), 12” x 13” (E-ATX) |
|
I/O Port |
USB 3.2 (Gen 2) Type-C x 1, USB 3.0 x 2, HD Audio x 1 |
|
PSU |
Standard PS2 PSU (optional) |
|
Fan Support |
Top: 3 x 120mm, 2 x 120mm, 1 x 120mm 2 x 140mm, 1 x 140mm Right (M/B Side): 2 x 120mm, 1 x 120mm Rear: 1 x 120mm, 1 x 140mm Power Cover: 3 x 120mm, 2 x 120mm, 1 x 120mm |
|
Radiator Support |
Top: 1 x 360mm, 1 x 240mm, 1 x 120mm Rear: 1 x 120mm |
|
Clearance |
CPU cooler max height: 180mm VGA max length: 420mm PSU max length: 220mm |
| GTIN | 841163095201 |
|---|
