Thermaltake PS-SPD-0550MNFABA-3 Smart BM3 550W 80+ Bronze PCIe Gen5 ATX 3.0 Semi-Modular Power Supply
Model
PS-SPD-0550MNFABA-3
| Location | Availability |
|---|---|
Online (Delivery) | End of Life |
Notting Hill (Pickup) | End of Life |
Preston (Pickup) | End of Life |
West Melbourne (Pickup) | End of Life |
$69.00

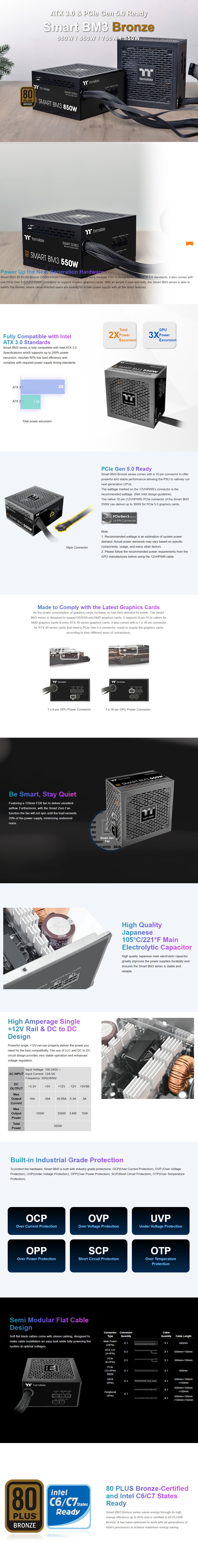

Thermaltake PS-SPD-0550MNFABA-3 Smart BM3 550W 80+ Bronze PCIe Gen5 ATX 3.0 Semi-Modular Power Supply
80 PLUS Bronze certified semi modular PSU, compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5.0 connector, it can power up next-gen entry level GPU with one 12VHPWR cable.
Specifications
| P/N | PS-SPD-0550MNFABx-3 |
|---|---|
| WATTS | 550W |
| MODEL | SPD-550AH2CLB |
| MAX. OUTPUT CAPACITY | 550W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 150mm(W)x86mm(H)x140mm(D) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-150 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 12A-5A |
| INPUT FREQUENCY RANGE | 50Hz/60Hz |
| INPUT VOLTAGE | 100-240V～ |
| OPERATING TEMPERATURE | 5°C to + 45°C |
| OPERATING HUMIDITY | 20% to 85%, non-condensing |
| STORAGE TEMPERATURE | -40°C to + 55°C |
| STORAGE HUMIDITY | 10% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Bronze at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/UKCA/LVD/UKCA/FCC/ICES/TUV/CB/cTUVus/BSMI/CCC |
| PCI-E 6+2PIN | 2 |
| PCIE 12+4PIN | 1(300w) |
| PROTECTION | OCP/OVP/UVP/OPP/OTP/SCP |
| GTIN | 841163089491 |
|---|
