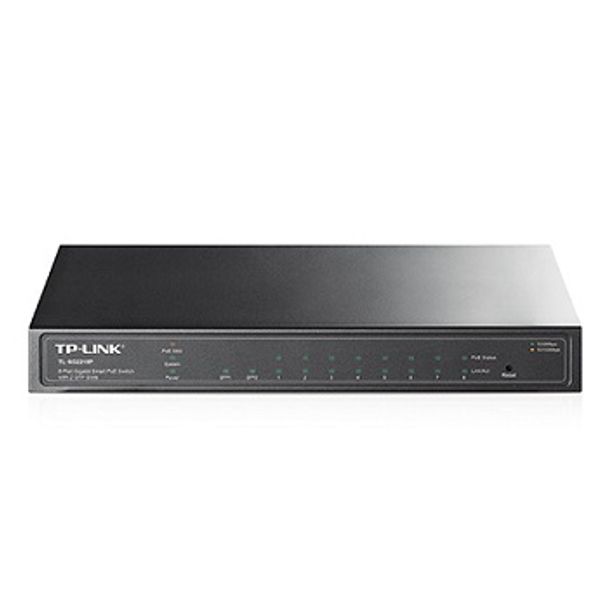

TP-Link TL-SG2210P JetStream 8-Port Gigabit Smart PoE+ Switch
Location | Availability |
---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |
Highlights:
- Features 8 PoE ports, with total PoE power budget of 53W and useful PoE power management features
- Gigabit Ethernet connections on all ports provide full speed of data transferring
- Integrated security strategy including 802.1Q VLAN, ACL, Port Security and Storm control help protect LAN area investment
- L2/L3/L4 QoS and IGMP snooping optimize voice and video applications
- WEB/CLI managed modes, SNMP, RMON bring abundant management features
- Innovative energy-efficient technology saves up to 50% of power consumption
What This Product Does
IEEE 802.3af-compliant Power over Ethernet
The TL-SG2210P supports 8 ports of IEEE 802.3af-compliant PoE and has a total power supply of 53W to power any 802.3af compliant power device. It’s an efficient and cost-effective choice to work with wireless access points, surveillance cameras, IP phones and other PoE supported devices, while getting rid of cables or power lines running around. Compact and flexible, the TL-SG2210P is ideal to flexibly use PoE to deploy wireless access points or IP-based network surveillance cameras for projects or small business networks.
Advanced QoS Features
To integrate voice, data and video service on one network, the switch applies rich QoS policies. Administrator can designate the priority of the traffic based on a variety of means including Port Priority, 802.1P Priority and DSCP Priority, to ensure that voice and video are always clear, smooth and jitter free.In conjunction with the Voice VLAN the switch supports, the voice applications will operate with much smoother performance.
Abundant Layer 2 Features
For more application of layer 2 switches, TL-SG2210P supports a complete lineup of layer 2 features, including 802.1Q tag VLAN, Port Isolation, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol and 802.3x Flow Control function. Any more, the switches provide advanced features for network maintenance such as Loop Back Detection, Cable Diagnostics and IGMP Snooping. IGMP Snooping ensures the switch intelligently forward the multicast stream only to the appropriate subscribers while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access.
Enterprise Level Management Features
TL-SG2210P is easy to use and manage. It supports various user-friendly standard management features, such as intuitive web-based Graphical User Interface(GUI) or industry-standard Command Line Interface(CLI). SNMP (v1/2/3) and RMON support enables the switch to be polled for valuable status information and send traps on abnormal events.
- Standard: 802.3af compliant
- PoE Ports: 8 Ports
- Power Supply: 53W
Layer 2 Features
- Static Link Aggregation/ Link Aggregation Control Protocol (LACP)
- Up to 512 VLANs simultaneously(out of 4K VLAN IDs)
- STP/RSTP/MSTP
- IGMP Snooping
- LLDP(LLDP-MED)
Quality of Service
- 4 priority queues
- Support IEEE 802.1P
- DSCP QoS
- Rate limit feature
Security Strategies
- Access Control List (L2~L4 ACL)
- Port Security
- Storm Control
- SSL and SSH encryptions
Management
- Web-based GUI
- Command Line Interface(Telnet)
- SNMP v1/v2c/v3
- RMON (1, 2, 3, 9 group)
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ad, IEE 802.3af, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p |
Interface | 8 10/100/1000Mbps RJ45 Ports 2 1000Mbps SFP Slots (Auto-Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m) 100BASE-FX: MMF, SMF 1000BASE-X: MMF, SMF |
PoE Ports (RJ45) | Standard: 802.3af compliant PoE Ports: 8 Ports Power Supply: 53W |
Dimensions (W X D X H) | 8.2 x 4.9 x 1.0 in (209 x 126 x 26mm) |
Fan Quantity | Fanless |
Power Consumption | Maximum (PoE on): 63.4W (220V/50Hz) Maximum (PoE off): 10.4W (220V/50Hz) |
Power Supply | 100~240VAC, 50/60Hz |
PERFORMANCE | |
---|---|
Bandwidth/Backplane | 20Gbps |
MAC Address Table | 8k |
Packet Buffer Memory | 512KB |
Packet Forwarding Rate | 14.9Mpps |
Jumbo Frame | 9216 Bytes |
SOFTWARE FEATURES | |
---|---|
L2 Switching Features | IGMP Snooping V1/V2/V3 802.3ad LACP (Up to 6 aggregation groups, containing 4 ports per group) Spanning Tree STP/RSTP/MSTP BPDU Filtering/Guard TC/Root Protect Loop back detection 802.3x Flow Control LLDP(LLDP-MED) |
Quality of Service | Support 802.1p CoS/DSCP priority Support 4 priority queues Queue scheduling: SP, WRR, SP+WRR Port/Flow- based Rate Limiting Voice VLAN |
VLAN | Supports up to 512 VLANs simultaneously (out of 4K VLAN IDs) |
Access Control List | L2~L4 package filtering based on source and destination MAC address, IP address, TCP/UDP ports, 802.1p, DSCP, protocol and VLAN ID Time Range Based |
Security | SSH v1/v2 SSL v2/v3/TLSv1 Port Security Broadcast/Multicast/Unknown unicast Storm Control |
Management | Web-based GUI and CLI management SNMP v1/v2c/v3, compatible with public MIBs and TP-LINK private MIBs RMON (1, 2, 3, 9 groups) CPU Monitoring Port Mirroring Time Setting: SNTP Firmware Upgrade: TFTP & Web System Diagnose: VCT SYSLOG & Public MIBS |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |
Package Contents | TL-SG2210P Power Adapter Quick Installation Guide Resource CD Rubber Feet |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉); Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
