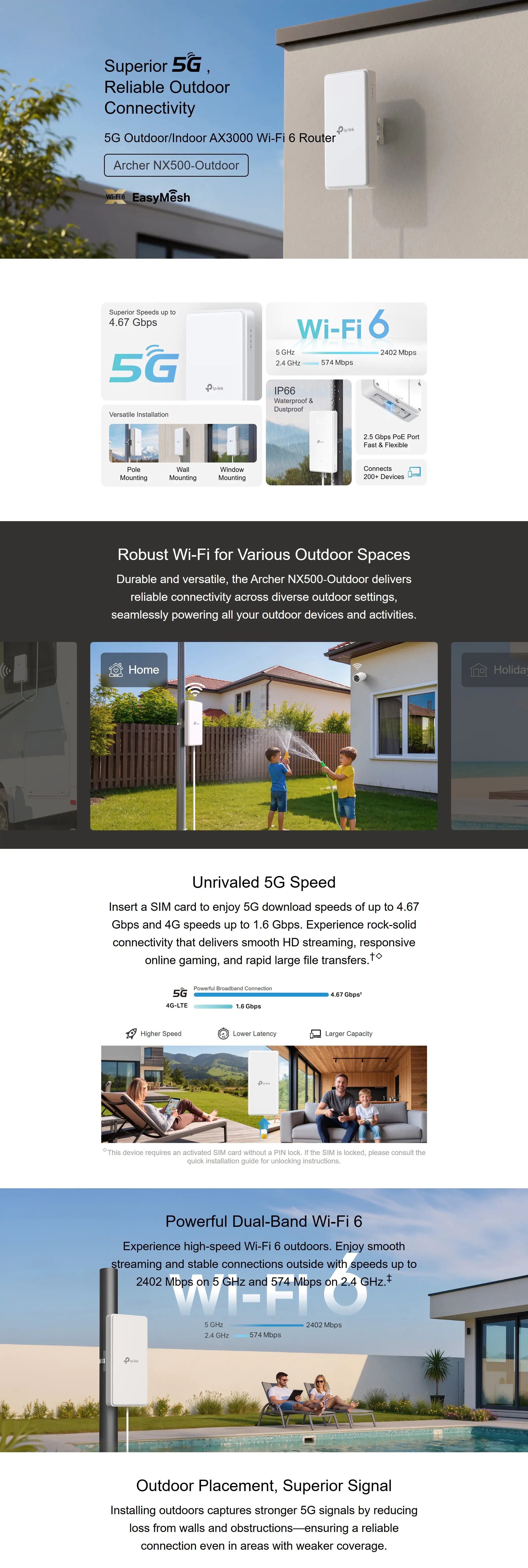

TP-Link Archer NX500-Outdoor 5G AX3000 Wi-Fi 6 Outdoor Router

5G/4G/3G

Network Type

5G:

]N1/N3/N5/N7/N8/N20/N28/N38/N40/N41/N75/N76/N77/N78 (2100/1800/850/2600/900/800/700/2600/2300/2500/1500/1500/3700/3500 MHz)

4G:

FDD-LTE: B1/B3/B5/B7/B8/B20/B28/B32(2100/1800/850/2600/900/800/700/1500 MHz)

TDD-LTE: B38/B40/B41/B42/B43(2600/2300/2500/3500/3700 MHz)

3G:

DC-HSPA+/HSPA/UMTS:B1/B5/B8(2100/850/900 MHz)

Speed

5G:

Download Speed 4.67 Gbps

Upload Speed 1.25 Gbps

4G LTE Cat19:

Download Speed 1.6 Gbps

Upload Speed 211 Mbps

HARDWARE FEATURES

Interface

1 × 2.5Gbps WAN/LAN Port (PoE In)

1 × Nano SIM Card Slot

1 × Type-C Port (only for debug)

Button

RESET Button

External Power Supply

Power: 48V/0.5A

802.3at PoE: 42-57V/0.6A

Dimensions ( W x D x H )

9.2 x 4.3 x 1.4 in (233x 110x 37 mm)

Antenna

Internal NR/LTE Antennas + Internal Wi-Fi Antennas

SOFTWARE FEATURES

Quality of Service

Bandwidth Control

Operating Modes

3G/4G/5G Router, Wireless Router

WAN Type

Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual Access)

Management Features

Access Control, Local Management, Remote Management, reboot schedule

DHCP

Server, DHCP Client List, Address Reservation

Port Forwarding

ALG, Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

TP-Link, DynDns, NO-IP

Firewall Security

DoS, IPv4 SPI Firewall, IPv6 Firewall, IP and MAC Address Binding, Access Control

Protocols

IPv4, IPv6

Guest Network

2.4 GHz guest network x 1, 5 GHz guest network x 1

VPN Server

PPTP VPN, IPSec VPN, OpenVPN

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/n/ac/ax 5 GHz, IEEE 802.11b/g/n/ax 2.4 GHz

Frequency

2.4 GHz and 5 GHz

Signal Rate

574 Mbps at 2.4 GHz, 2402 Mbps at 5 GHz

Reception Sensitivity

• 5 GHz:

11ax HE20: -64 dBm, 11ax HE20 MCS11 -64 dBm, 11ax HE20 MCS0 -94 dBm

11ax HE40: -61 dBm, 11ax HE40 MCS11: -61 dBm, 11ax HE40 MCS0 -91 dBm

11ax HE80: -59 dBm, 11ax HE80 MCS11: -59 dBm, 11ax HE80 MCS0 -89 dBm

11ac VHT20: -70 dBm, 11ac VHT20 MCS8: -70 dBm

11ac VHT40: -67 dBm, 11ac VHT40 MCS9: -67 dBm

11ac VHT80: -64 dBm, 11ac VHT80 MCS9: -64 dBm

• 2.4 GHz:

11ax HE20: -66 dBm, 11ax HE20 MCS11: -66 dBm, 11ax HE20 MCS0 -94 dBm

11ax HE40: -62 dBm, 11ax HE40 MCS11: -62 dBm, 11ax HE40 MCS0 -91 dBm

11ac VHT20: -71 dBm, 11ac VHT20 MCS8: -71 dBm

11ac VHT40: -67 dBm, 11ac VHT40 MCS9: -67 dBm

Wireless Security

WPA/WPA2, WPA-PSK/WPA2-PSK, WPA3 encryptions

Wireless Function

Enable/Disable Wireless Radio, Wireless Schedule, WMM, Wireless Statistics

EIRP (CE)

≤20dbm(2.4GHz)

≤23dbm(5G band1/band2)

≤30dbm(5G band3)

OTHERS

Certification

CE, RoHS

Package Content

• 5G AX3000 Wi-Fi 6 Outdoor Router Archer NX500-Outdoor

• 10-meter Flat RJ45 Ethernet Cable

• PoE Adapter

• AC Power Cord

• Grounding Terminal

• Quick Installation Guide

• Window/Pole/Wall Mounting Kits

Requirements

• Edge, Firefox, Chrome, Safari, or other JavaScript-enabled browser

*You are recommended to use the latest version

• Nano SIM Card

Environment

• Operating Temperature: -30℃~60℃ (-22°F~140°F)

• Storage Temperature: -40°C~70°C (-40 °F~158 °F)

• Operating Humidity: 5%~90% RH

• Storage Humidity: 5%~90% RH
