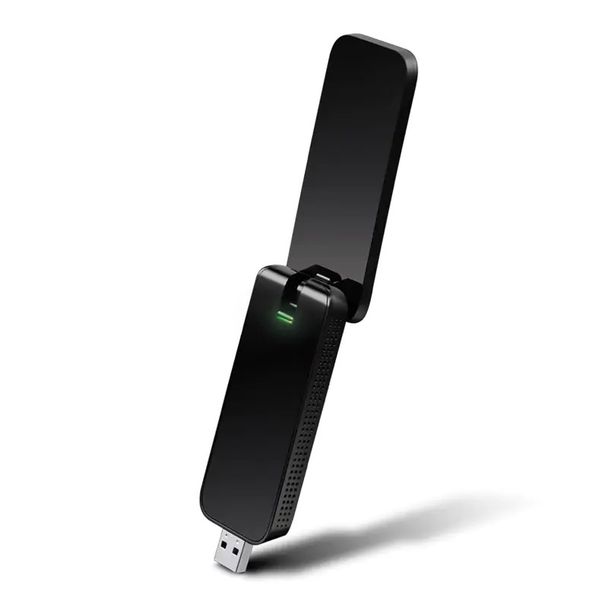

TP-Link Archer T4U AC1300 Wireless Dual Band USB Adapter

HARDWARE FEATURES

Interface

USB 3.0

Button

WPS button

Dimensions ( W X D X H )

3.64×1.24×0.55 in. (92.47×31.55×13.9mm)

Antenna

2 High Gain External Antennas

Antenna type

Omni Directional

WIRELESS FEATURES

Wireless standards

IEEE 802.11ac, IEEE 802.11a,
IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency

5GHz
2.4GHz

Signal rate

5GHz
11ac: Up to 867Mbps(dynamic)
11n: Up to 300Mbps(dynamic)
11a: Up to 54Mbps(dynamic)

2.4GHz
11n: Up to 400Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)

Reception sensitivity

5GHz：
11a 6Mbps: -91dBm
11a 54Mbps: -77dBm
11nHT20：-74dBm
11nHT40：-71dBm
11ac HT20: -70dBm
11ac HT40: -66dBm
11ac HT80: -62dBm

2.4GHz:
11b 11Mbps: -86dBm
11g 54Mbps: -74dBm
11n HT20: -72dBm
11n HT40: -70dBm

Transmit power

<20dBm (EIRP)

Wireless modes

Ad-Hoc / Infrastructure mode

Wireless security

Support 64/128 bit WEP, WPA-PSK/WPA2-PSK

Modulation technology

DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM

OTHERS

Certification

CE, FCC, RoHS

Package contents

AC1300 High Gain Wireless MU-MIMO USB Adapter Archer T4U
Quick Installation Guide
Resource CD

System requirements

Windows 10/8.1/8/7/XP, Mac OS X 10.9-10.13

Environment

Operating Temperature: 0℃~40℃   (32℉~104℉)
Storage Temperature: -40℃~70℃   (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
