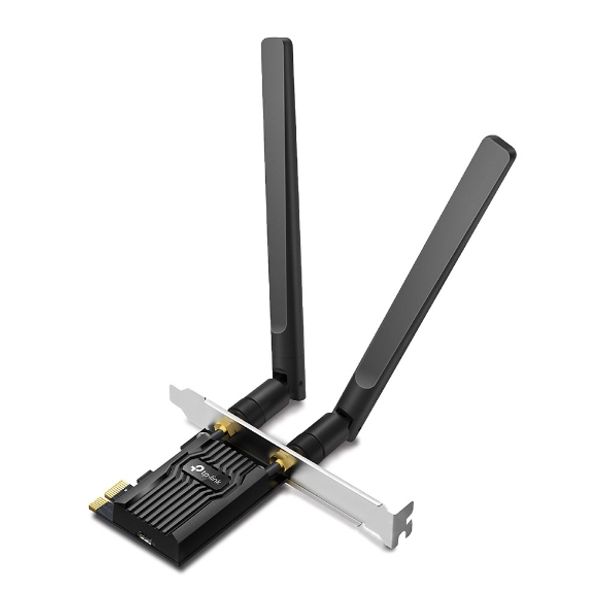

TP-Link Archer TX20E AX1800 Dual-Band WiFi 6 Bluetooth PCIe Adapter

SKU
NET-TPL-TX20E
Model
ARCHER TX20E
Add to Compare
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
In Stock
$49.00
TP-Link Archer TX20E AX1800 Dual-Band WiFi 6 Bluetooth PCIe Adapter
TP-Link
4897098688809
Add to Wish List
  • Unrivalled Wi-Fi 6 Speed—Breaks the gigabit barrier with speed up to 1201 Mbps (5 GHz) + 574 Mbps (2.4 GHz)
  • Wider Signal Coverage— Connect to your Wi-Fi in more parts of your home with two external high-gain antennas ensuring greater coverage and enhanced stability
  • Bluetooth 5.2—The latest Bluetooth technology achieves 2× Faster Speed and 4× Broader Coverage than BT 4.2
  • Improved Security—The latest security enhancements WPA3 provides enhanced protection in personal password safety
  • Backward Compatibility – Full support for 802.11ax/ac/a/b/g/n standards

ARCHER TX20E

Specifications

HARDWARE FEATURES
Dimensions 4.76 × 3.09 × 0.82 in
(120.8 × 78.5 × 20.9 mm)
Antenna Type Two High-Gain Dual Band Antennas
Chipset Realtek Wi-Fi 6 Chipset
WIRELESS FEATURES
Wireless Standards IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/g/b 2.4 GHz
Bluetooth 5.2
WLAN Signal Rate 5 GHz
11ax: Up to 1201 Mbps(dynamic)
11ac: Up to 867 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11a: Up to 54 Mbps(dynamic)

2.4 GHz
11ax: Up to 574 Mbps(dynamic)
11n: Up to 300 Mbps(dynamic)
11g: Up to 54 Mbps(dynamic)
11b: Up to 11 Mbps(dynamic)
WLAN Reception Sensitivity 5 GHz :
11ax HE80: -57.0dBm
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11ac VHT80: -59.5dBm
11ac VHT40: -62.5dBm
11ac VHT20: -67.5dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11a 54Mbps: -74.0dBm
11a 6Mbps: -94.5dBm

2.4GHz :
11ax HE40: -60.0dBm
11ax HE20: -63.0dBm
11n HT40: -69.5dBm
11n HT20: -72.5dBm
11g 54Mbps: -74.0dBm
11b 11Mbps: -88.0dBm
WLAN Transmit Power 5 GHz : 27dBm(FCC) / 23dBm(CE) (EIRP)
2.4 GHz : 25dBm(FCC) / 20dBm(CE) (EIRP)
WLAN Modes Infrastructure mode
Wireless Security Support 64/128 bit WEP, WPA/WAP2/WPA3, WPA-PSK/WPA2-PSK, 802.1x
Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM, 1024QAM
OTHERS
Certification CE, FCC, RoHS
Package Contents Archer TX20E
Two High-Gain Dual Band Antennas
Low-Profile Bracket
Bluetooth Header Cable
Quick Installation Guide
Resource CD
System Requirements Windows 11/10(64-bit) only
Environment Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
