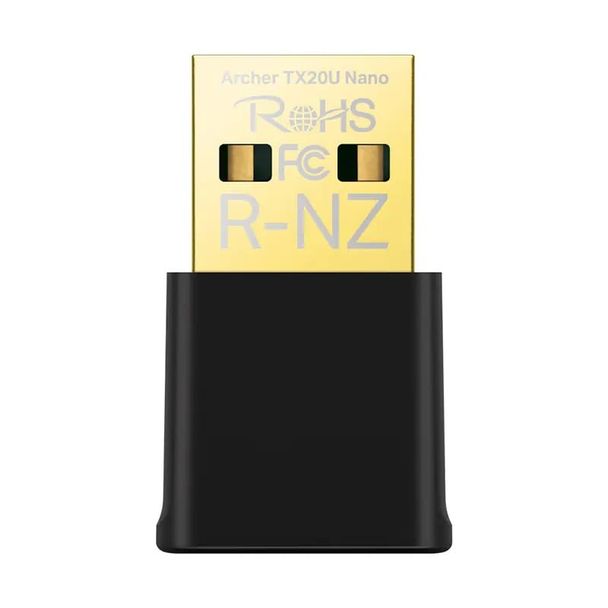

TP-Link Archer TX20U Nano AX1800 Nano Wi-Fi 6 Wireless USB Adapter

Interface

USB 2.0

LED

Status

Dimensions

26.8 × 15.7 × 7.5 mm (1.06 × 0.62 × 0.30 in)

Antenna

2× Dual-Band Antennas

WIRELESS FEATURES

Wireless Standards

IEEE 802.11a/b/g/n/ac/ax

Signal Rate

5 GHz:

11ax: Up to 1201 Mbps(dynamic)

11ac: Up to 867 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz:

11ax: Up to 574 Mbps(dynamic)

11n: Up to 400 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)

Transmit Power

5 GHz: 10dBm(FCC)

2.4 GHz : 10dBm(FCC)

Wireless Modes

Infrastructure mode

Wireless Security

WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK

OTHERS

Certification

FCC, CE, RoHS

Package Contents

AX1800 Nano Wi-Fi 6 Wireless USB Adapter TX20U Nano

Quick Installation Guide

System Requirements

Supported operating systems include Windows 10, 11

Environment

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing

Notes

*Models' appearances and specifications are not determined and will be updated accordingly. Please use the product images only for reference.

**Some features may require software upgrades or subscriptions.

****Use of Wi-Fi 6 and other features, including OFDMA and MU-MIMO, require your APs to also support the corresponding features.

Actual network speed may be limited by the rate of the product's Ethernet WAN or LAN port, the rate supported by the network cable, Internet service provider factors and other environmental conditions.
