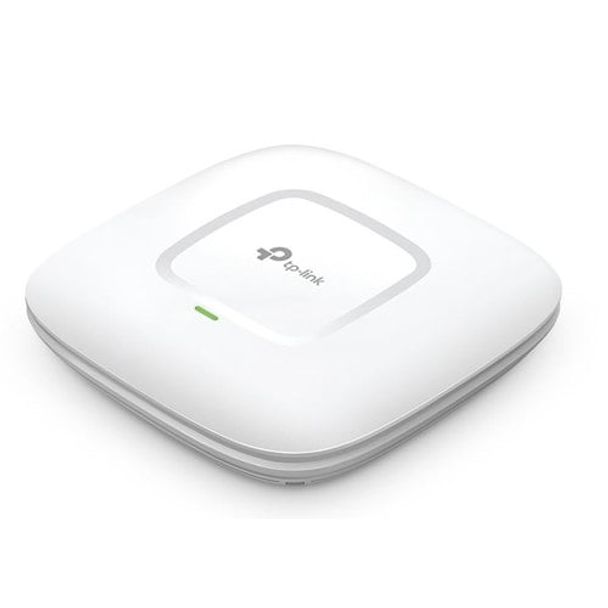

TP-Link EAP245 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point

Model
EAP245
LocationAvailability
Online (Delivery)
In Stock
Notting Hill (Pickup)
In Stock
Preston (Pickup)
Available in 24 Hours
West Melbourne (Pickup)
Available in 24 Hours
$135.00
TP-Link EAP245 AC1750 Wireless Dual Band Gigabit Ceiling Mount Access Point
  • Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
  • Free EAP Controller Software lets administrators easily manage hundreds of EAPs
  • Support Power over Ethernet(802.3at) for convenient and affordable installation
  • Captive portal provides a convenient method for guest authentication
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • Load balance ensures large numbers of users have smooth network experiences in high density business networks



Superior Wi-Fi Speeds with 3x3 11ac MIMO technology

The latest generation of 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands.

The EAP245 achieves Wi-Fi speeds of up to 1.75Gbps, with 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band.

The EAP225 provides speeds of up to 867Mbps and 300Mbps on the 5GHz and 2.4GHz respectively.

Easy for Centralized Management

Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Auranet Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There's no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication

Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can Control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons.

Flexible Deployment

The EAP's low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment

The Auranet business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It's the perfect fit for motels, salons, chain-stores, schools, and restaurants.



  • 1750Mbps wireless data rate for uninterrupted wireless connection
  • Free Controller Software for easy centralized management of hundreds of EAPs
  • Power over Ethernet(802.3at) Support for convenient and affordable installation
  • Captive portal provides one convenient method of authentication for Wi-Fi guests
  • Simple mounting design makes easy to install on any wall or ceiling surface
  • Rate limit on per SSID to restrict the bandwidth of each client
  • Load balance ensures large numbers of users have smooth network experiences in high density business networks
  • Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
  • Access Control restricts or only allows the client to access the specified network segment
  • Reboot Schedule enables all the APs to reboot automatically at a specified time
  • WPA/WPA2-enterprise, 802.1X with RADIUS secure authentication and rogue access point detection ensure the security of WLAN
  • Multi-SSID divides multiple wireless network for different users
  • Compatible with 802.11 a/b/g/n/ac products
  • Adopts Low Smoke Zero Halogen (LSOH) materials for UL2043 compliance
  • Multiple operating modes including managed AP and standalone AP satisfy different application conditions
  • Qos function gives video and voice streams higher priority to promote smoother performance for video and voice services



HARDWARE FEATURES

  • Interface: Gigabit Ethernet (RJ-45) Port *1(Support IEEE802.3at PoE)
  • Button: Reset
  • Power Supply: PoE or External 12VDC / 1.5A Power Supply
  • Power Consumption: 12.7 W
  • Dimensions (W x D x H): 7.1 x 7.1 x 1.9in. (180*180*47.5mm)
  • Antenna Type
    • Internal Omni
    • 2.4GHz: 3* 4dBi
    • 5GHz: 3*4dBi
  • Mounting: Ceiling /Wall Mounting (Kits included)
  • Physical Security Lock: Kensington Lock Slot
  • Watch Dog: Yes

WIRELESS FEATURES

  • Wireless Standards: IEEE 802.11ac/n/g/b/a
  • Frequency: 2.4GHz and 5GHz
  • Signal Rate
    • 5GHz:Up to 1300Mbps
    • 2.4GHz:Up to 450Mbps
  • Wireless Functions
    • Multiple SSIDs(Up to 16 SSIDs, 8 for each band)
    • Enable/Disable Wireless Radio
    • Automatic Channel Assignment
    • Transmit Power Control (Adjust Transmit Power on dBm)
    • QoS(WMM)
    • Band Steering
    • Load Balance
    • Rate Limit
    • Reboot Schedule
    • Wireless Schedule
    • Wireless Statistics based on SSID/AP/Client
  • Wireless Security
    • Captive Portal Authentication
    • Access Control
    • Wireless Mac Address Filtering
    • Wireless Isolation Between Clients
    • SSID to VLAN Mapping
    • Rogue AP Detection
    • 802.1X Support
    • 64/128/152-bit WEP / WPA / WPA2-Enterprise,
    • WPA-PSK / WPA2-PSK
  • Transmission Power
    • CE:
    • <20dBm(2.4GHz)
    • <23dBm(5GHz)
    • FCC:
    • <27dBm(2.4GHz & 5GHz)

MANAGEMENT

  • EAP Controller Software: Yes
  • Email Alerts: Yes
  • LED ON/OFF Control: Yes
  • Management MAC Access Control: Yes
  • SNMP: Yes
  • System Logging Local/Remote Syslog: Local/Remote Syslog
  • Telnet: Yes
  • Web-based Management: HTTP/HTTPS
  • L3 Management: Yes
  • Multi-site Management: Yes
  • Management VLAN: Yes



OTHERS

  • Certification: CE, FCC, RoHS
  • Package Contents
    • AC1750 Wireless Dual Band Gigabit Access Point EAP245
    • Power Adapter
    • Mounting Kits
    • Installation Guide
  • System Requirements
    • Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
  • Environment
    • Operating Temperature: 0C~40C (32F~104F)
    • Storage Temperature: -40C~70C (-40F~158F)
    • Operating Humidity: 10%~90% non-condensing
    • Storage Humidity: 5%~90% non-condensing
