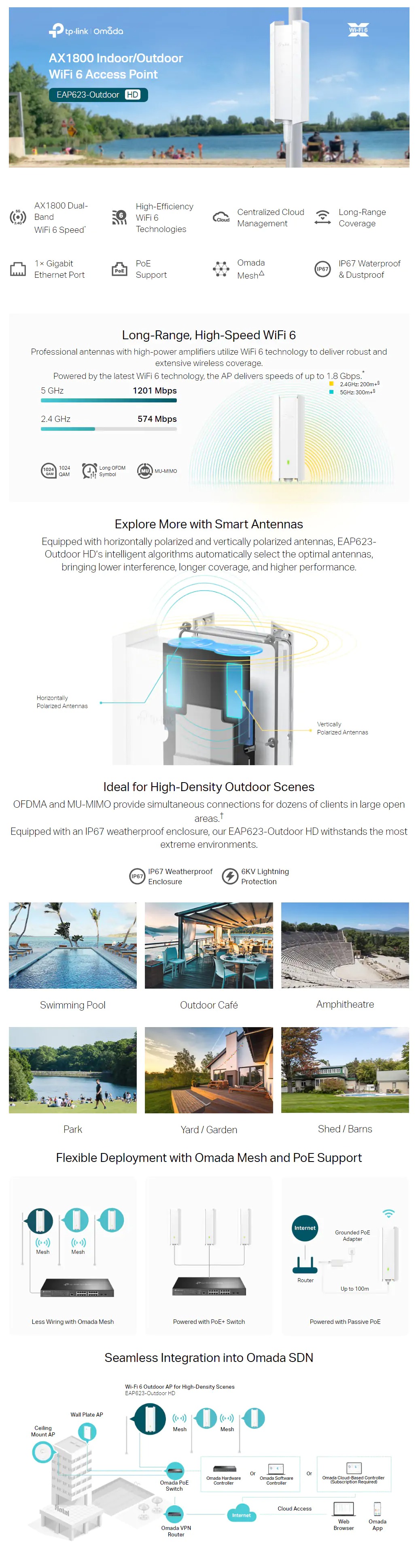

TP-Link EAP623-Outdoor HD AX1800 Indoor/Outdoor Wi-Fi 6 Access Point

HARDWARE FEATURES

Interface

1x Gigabit Ethernet Port

Button

Reset

Power Supply

• 802.3at PoE

• 48V Passive PoE

Note: PoE adapter is not included.

Dimensions ( W x D x H )

11.0 x 4.2 x 2.2 in (280.4 × 106.5 × 56.8 mm)

Antenna Type

2× Internal Dual-Band Omni Antennas

• 2.4 GHz: 4.0 dBi;

• 5 GHz: 5.0 dBi

Mounting

Ceiling / Wall Mounting (Kits Included)

WIRELESS FEATURES

Concurrent Clients

1,000+**

Wireless Standards

IEEE 802.11 a/b/g/n/ac/ax

Frequency

5 GHz, and 2.4 GHz

Signal Rate

• 5 GHz: Up to 1201 Mbps

• 2.4 GHz: Up to 574 Mbps

Wireless Functions

• Mesh△

• Seamless Roaming△

• Automatic Channel Assignment

• Load Balance

• Band Steering

• Beamforming

• Airtime Fairness

• Multiple SSIDs:16 (8 for each band)

• Wireless Statistics

• Wireless Schedule

• Reboot Schedule

• RADIUS Accounting

• MAC Authentication

• Static IP/Dynamic IP

Wireless Security

• VLAN

• Access Control

• Rogue AP Detection

• Captive Portal Authentication△

• Maximum number of MAC Filter: 4,000

• Wireless Isolation between Clients

• WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise

• 802.1X Support

Transmission Power

• CE: < 20 dBm (2.4 GHz, EIRP), < 30 dBm (5 GHz, EIRP);

• FCC: < 25 dBm (2.4 GHz), < 25 dBm (5 GHz)

MANAGEMENT

Omada App

Yes

Restore & Backup

Yes

Firmware update via Web

Yes

NTP

Yes

Centralized Management

• Omada Hardware Controller (OC300)

• Omada Hardware Controller (OC200)

• Omada Software Controller

• Omada Cloud-Based Controller

Cloud Access

Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.

Email Alerts

Yes

LED ON/OFF Control

Yes

Management MAC Access Control

Yes

SNMP

v1, v2c, v3

SSH

Yes

Web-based Management

Yes

OTHERS

Certification

CE, FCC, RoHS

Package Contents

• EAP623-Outdoor HD

• Installation Guide

• Mounting Kit

• Waterproof Kit

Environment

• Operating Temperature: -30 °C–70 °C (-22 °F–158 °F);

• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);

• Operating Humidity: 10%–90% non-condensing;

• Storage Humidity: 5%–90% non-condensing

Notes

*Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range, coverage, and maximum quantity of connected devices are based on test results under normal usage conditions. Actual wireless data throughput, wireless coverage, and quantity of connected devices are not guaranteed and will vary as a result of 1) environmental factors, including building materials, physical objects, and obstacles; 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead; and 3) client limitations, including rated performance, location, connection quality, and client condition.

 Use of WiFi 6 (802.11ax) and its features, including OFDMA, HE160, and 1024-QAM, requires clients to support the corresponding features. The 160 MHz bandwidth is only available on the 5 GHz band and may be unavailable in some regions/countries due to regulatory restrictions. The double channel width refers to 160 MHz compared to 80 MHz for general WiFi 6 APs.
