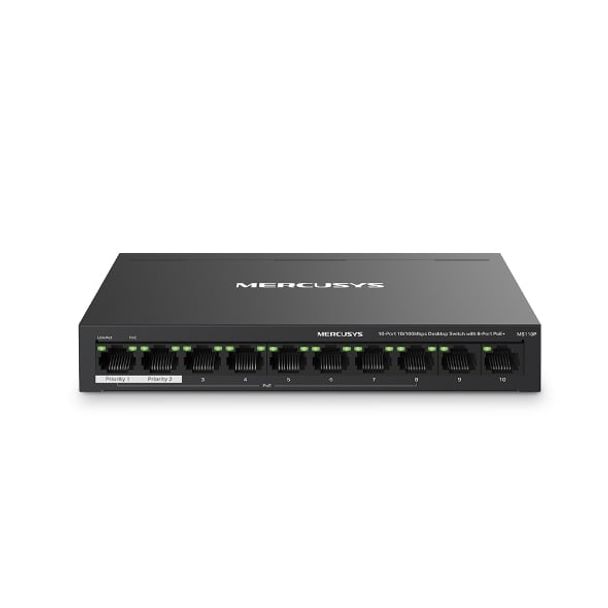

TP-Link Mercusys MS110P 10 Port 10/100 Mbps Desktop Switch with 8 Port PoE+

• 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
• Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Specifications

Hardware

Dimensions (W X D X H)



171*98*27 mm



PoE Ports



RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W



Interfaces



10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX



External Power Supply



External Power Adapter (Output: 53.5V/1.31A)



Standards and Protocols



IEEE 802.3x Flow Control



Data Rates



10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex



Jumbo Frame



 2 KB



Mac Address Table



2K



Max Power Consumption



10.064 BTH/h （no PD connected)

263.568 BTH/h（with 65W PD connected）

Others

Package Contents



• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110P)
• Power Adapter
• Quick Installation Guide



Environment



Operating Temperature: 0℃~40℃ (32℉~104℉)
Storage Temperature: -40℃~70℃ (-40℉~158℉)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
