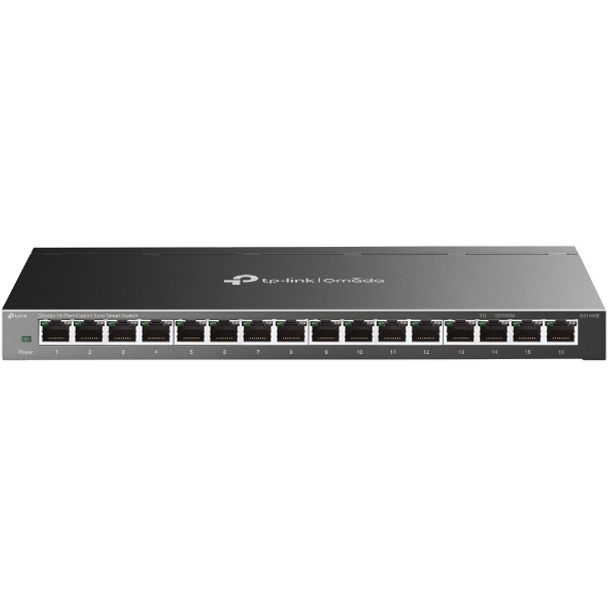

TP-Link Omada DS116GE 16-Port Gigabit Easy Smart Switch
Model
DS116GE
| Location | Availability |
|---|---|
Online (Delivery) | Preorder |
Notting Hill (Pickup) | Preorder |
Preston (Pickup) | Preorder |
West Melbourne (Pickup) | Preorder |
$144.00
- 16× 10/100/1000Mbps RJ45 ports
- Plug and play for instant connectivity
- Simple configuration via web-based user interface and management utility*
- Durable metal casing of superior quality and professional appearance
- Green technology reduces power consumption
- Note: This Omada Easy Smart switch does not support Omada SDN central management.
Specifications
| HARDWARE FEATURES | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p |
| Interface | • 16× 10/100/1000Mbps RJ45 Ports • AUTO Negotiation/AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) • 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Power Supply | External Power Adapter(Output: 12VDC/1.0A) |
| Dimensions ( W x D x H ) | 11.3 × 4.4 × 1.0 in. (286 × 111.7 × 25.4 mm) |
| Max Power Consumption | 9.19W(220V/50Hz) |
| Max Heat Dissipation | 31.36BTU/h |
| PERFORMANCE | |
|---|---|
| Switching Capacity | 32Gbps |
| Packet Forwarding Rate | 23.81Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4.1Mb |
| Jumbo Frame | 9KB |
| SOFTWARE FEATURES | |
|---|---|
| Quality of Service | • Port/802.1p/DSCP priority • Support 4 priority queues • Rate Limit • Storm Control |
| L2 Features | • IGMP Snooping • Static Link Aggregation • Port Mirroring • Cable Diagnostics • Loop Prevention |
| VLAN | • Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs) • MTU/Port/Tag VLAN |
| Transmission Method | Store-And-Forward |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • DS116GE • Power Cord • Installation Guide • Rubber Feet |
| System Requirements | Microsoft® Windows® for running Utility |
| Environment | • Operating Temperature: 0℃~40℃ (32℉~104℉) • Storage Temperature: -40℃~70℃ (-40℉~158℉) • Operating Humidity: 10%~90% non-condensing • Storage Humidity: 5%~90% non-condensing |
| GTIN | 840030712005 |
|---|
