TP-Link POE20E-Outdoor Omada PoE+ Extender
| Location | Availability |
|---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 3 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 3 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 3 Working Days) |

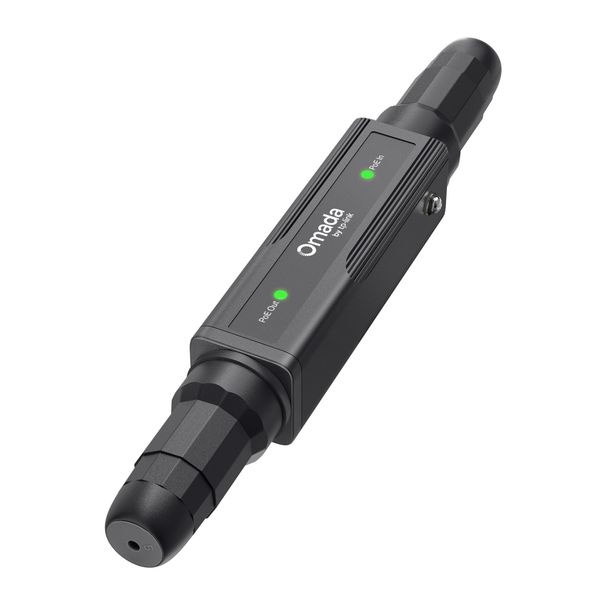

The POE20E-Outdoor is a rugged Gigabit PoE+ Extender engineered to overcome network distance limitations in demanding outdoor environments. It seamlessly extends both data and power an additional 100 meters at full Gigabit speeds, delivering up to 30W of 802.3af/at compliant PoE+ to power devices like IP cameras and access points. Built for ultimate reliability, its IP68-rated weatherproof enclosure and an wide operating temperature range of -40°C to 65°C ensure flawless performance in any weather. Offering simple Plug-and-Play installation and an extended range of up to 250m* for lower-speed applications, the POE20E-Outdoor is the ideal solution for deploying surveillance and network hardware in remote locations where power and distance are a challenge.
- 2× 10/100/1000 Mbps RJ45 ports
- Compliance with 802.3af/at devices
- Supplies up to 30 W, which meets the power consumption requirements of most IP cameras
- Extends a PoE/PoE+ network connection to 200 m (100 m+100 m)/500 m (250 m+250 m)* from the PoE power sourcing equipment
- Outdoor Weatherproof: IP68 dust &water proof; Wide operation temperatures of -40 to 65 °C and 6KV lightning protection further ensure stable operation against harsh outdoor conditions.
- Plug-and-Play, requires no configure
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at |
|---|---|
| Interface | • 1× 10/100/1000 Mbps Auto-Negotiation RJ45 • 1× 10/100/1000 Mbps Auto-Negotiation RJ45 |
| Network Media | •10BASE-T: 2-pair UTP/STP (≤250m) of Cat. 3 or above •100BASE-TX: 2-pair UTP/STP (≤100m) of Cat. 5 or above •1000BASE-T: 4-pair UTP/STP (≤100m) of Cat. 5e or above |
| Max. Power Consumption | • Output: 30W |
| LED | 2× Link/Act |
| Dimensions ( W x D x H ) | 221.7 × 31 × 31.5mm (8.73 × 1.22 × 1.24 in) |
| Weatherproof Enclosure | IP68 |
| OTHERS | |
|---|---|
| Certification | CE, FCC, BSMI, KC |
| Package Content | • POE20E-Outdoor • Waterproofing Components • Ground Wire • Installation Guide |
| Lightning Protection | 6kV |
| Environment | • Operating Temperature: -40°C to 65°C (-40°F to 149°F) • Storage Temperature: -40°C to 70°C (-40°F to 158°F) • Operating Humidity: 15% to 90% RH non-condensing • Storage Humidity: 15% to 90% RH non-condensing |
| GTIN | 1210002606479 |
|---|
