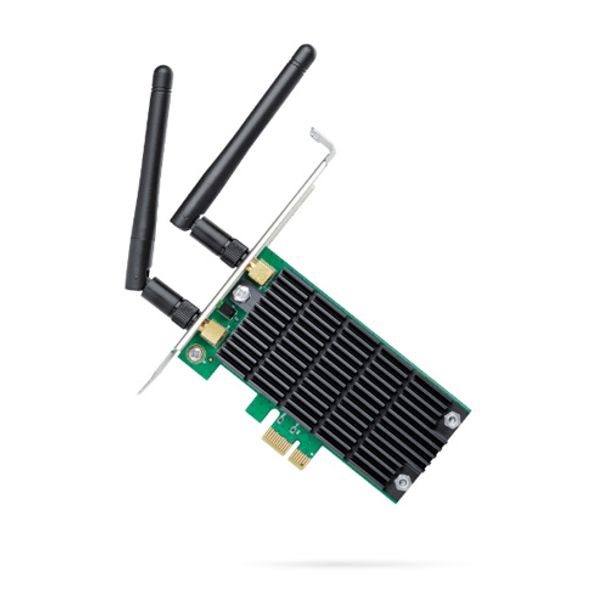

TP-Link Archer T4E AC1200 Wireless Dual Band PCI Express Adapter
Model
Archer T4E
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | In Stock |
West Melbourne (Pickup) | In Stock |
$31.00
TP-Link T4E AC1200 Wireless Dual Band PCI Express Adatper
AC1200 Wireless Dual Band PCI Express AdapterArcher T4E
- Easy Installation – Plug the adapter into an available PCI-E slot to upgrade your desktop
- High-Speed Wi-Fi – Up to 1200 Mbps Wi-Fi speeds (867 Mbps on 5 GHz band and 300 Mbps on 2.4 GHz band)
-
802.11ac Dual Band – 3 times faster than the 802.11n standard, perfect for high-intensity network usage
-
Beamforming – Wi-Fi signals are strengthened towards a certain direction where client exists
-
Multiple-Size Brackets – Low profile and full height brackets are both provided, suitable for all PCs
-
2×2 MIMO – Users can easily access a high-speed wireless connection
-
Broad Wireless Range – Two external antennas ensure greater Wi-Fi coverage and enhanced stability
| HARDWARE FEATURES | |
|---|---|
| Interface | PCI Express |
| Dimensions ( W x D x H ) | 4.8 x 4.5 x 0.85 in (120.8*115.2*21.5 mm) |
| Antenna Type | 2 Dual Band Detachable Antennas |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11ac/n/a 5 GHz IEEE 802.11n/g/b 2.4 GHz |
| Signal Rate | 5 GHz 11ac: Up to 867 Mbps(dynamic) 11n: Up to 300 Mbps(dynamic) 11a: Up to 54 Mbps(dynamic) 2.4 GHz 11n: Up to 300 Mbps(dynamic) 11g: Up to 54 Mbps(dynamic) 11b: Up to 11 Mbps(dynamic) |
| Reception Sensitivity | 5 GHz : 11ac HT80: -59.5 dBm 11ac HT40: -63 dBm 11ac HT20: -68 dBm 11n HT40: -70 dBm 11n HT20: -73 dBm 11a 54Mbps: -76 dBm 11a 6Mbps: -92 dBm 2.4GHz : 11n HT40: -67.5 dBm 11n HT20: -70 dBm 11g 54Mbps: -72 dBm 11b 11Mbps: -86.5 dBm |
| Transmit Power | 5 GHz : 24 dBm(FCC) / 23dBm(CE) (EIRP) 2.4 GHz : 25 dBm(FCC) / 20dBm(CE) (EIRP) |
| Wireless Modes | Ad-Hoc / Infrastructure mode |
| Wireless Security | Support 64/128 bit WEP, WPA/WAP2, WPA-PSK/WPA2-PSK, 802.1x |
| Modulation Technology | DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM, 256-QAM |
| OTHERS | |
|---|---|
| Certification | CE, FCC, RoHS |
| Package Contents | AC1200 Wireless Dual Band PCI Express Adapter Archer T4E Low-Profile Bracket Quick Installation Guide Resource CD |
| System Requirements | Windows 10/8.1/8/7/XP (32/64bit) |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
