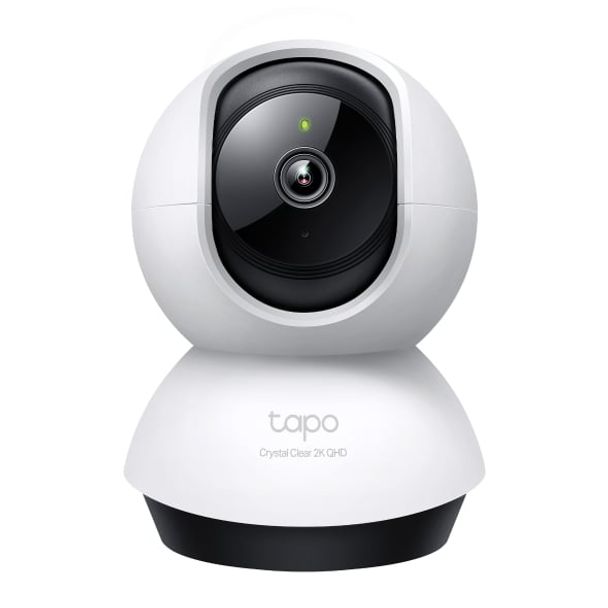

TP-Link Tapo C220 Tapo Pan/Tilt Home Security Wi-Fi Camera

CAMERA

Image Sensor 1/3” Lens Focal Length: 4.0mm±5%
F/NO: 2.0±10% Night Vision 850nm IR LED Night Vision up to 30ft Lighting / Hub Compatibility / Interface & Button 1× RESET Button
1× MicroSD Card Slot (Up to 512GB) Pan/Tilt Range Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 69° (110° Tilt Coverage) Resolution 2K 4MP QHD （2560 * 1440 px）

HUB
Device Compatibility	/
Connection Capacity	/
Interface & Button	/

VIDEO & AUDIO
Maximum Resolution	1× RESET Button 1× MicroSD Card Slot (Up to 512GB)
Frame Rate	15/20/25/30 fps (Default 15fps)
Digital Zoom	12x
Video Compression	H.264
Live View	Yes
Image Enhancement	3D DNR BLC
Audio Input & Output	Built-in Microphone and Speaker
Audio Communication	Two-Way Audio with Noise Cancellation
Siren Volume	99dB (Level measured at 4-inch/10-cm distance)

STORAGE
Local Storage	MicroSD Card Slot on Camera (Up to 512 GB) General Information about using MicroSD Cards >
Cloud Storage	Tapo Care Cloud Storage Services (Subscription required)

VIDEO
Frame Rate	2560×1440@30fps
Video Compression	H.264

DETECTION and NOTIFICATIONS
Sensor	/
AI Detection	Motion Detection Person Detection Line-Crossing Detection Tamper Detection BabyCry Detection Vehicle Detection Pet Detection Meow Detection Bark Detection Glass-Breaking Detection
Activity Zones	Yes
Output Notification	System Notification System Notification with Snapshot (Tapo Care Services)

AUDIO
Audio Communication	Two-Way Audio
Audio Input & Output:	Built-in microphone and speaker

NETWORK
Network Connectivity	Connect via Wi-Fi
Wireless Connectivity	IEEE 802.11b/g/n, 2.4 GHz Wi-Fi
Protocol	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wireless Rate	11Mbps(802.11b) 54Mbps(802.11g) 72.2Mbps(802.11n)
Ethernet Port	/
RTSP	Yes
ONVIF	Supported
Cloud	Supported
Security	128 bit AES encryption with SSL/TLS

SECURITY
Security	On-Device Machine Learning 128-bit AES Encryption with SSL/TLS WPA/WPA2-PSK

POWER
Power Source	9V DC Power Adapter
Input Voltage	100-240 V, 50/60 Hz
Output Voltage	9V, 0.6 A (DC Power)
Camera input	3 Meter Power Cable

ACTIVITY NOTIFICATIONS
Input Trigger	Motion detection、Person detection、line Crossing detection、Tamper detection、Baby Crying Detection、Vehicle Detection、Pet Detection、Meow Detection、Bark Detection、Glass Detection
Output Notification	Notification, Snapshot(Tapo care) Clips(Tapo care)

HARDWARE
Button	Reset Button
Indicator LED	System LED
Adapter Input	100-240VAC, 50/60Hz, 0.3A
Adapter Output	9.0V/0.6A
Product Dimensions (W x D x H)	3.4 x 3.3 x 4.6 in. (86.6 x 85 x 117.7 mm)

GENERAL
Smart Integration	Google Assistant, Amazon Alexa
Weather Resistance	/
Mounting Options	Tabletop Ceiling-Mounted
Operating Temperature	0℃~40℃
Storage Temperature	-20℃~70℃
Operating Humidity	10%~90% RH, Non-condensing
Storage Humidity	5%~90% RH, Non-condensing
Charging Temperature	/
Dimensions ( W x D x H )	3.36 × 3.42 × 4.63 in (85.4 × 86.8 × 117.7 mm)
Package Content	Tapo C220 Camera Power Adapter Quick Start Guide Mounting Screws Mounting Anchors 　 Mounting Template Camera Base
Certifications	CE, FCC, RCM, WEEE, EAC

Package Content
Package Content	Tapo Pan/Tilt Home Security Wi-Fi Camera Power Adapter Quick Start Guide Mounting Screws Mounting Plate Camera Base

ENVIRONMENT
Operating Temperature	0℃~40℃
Storage Temperature	-20℃~60℃
Operating Humidity	10%~90%RH, Non-condensing
Storage Humidity	5%~90%RH, Non-condensing
