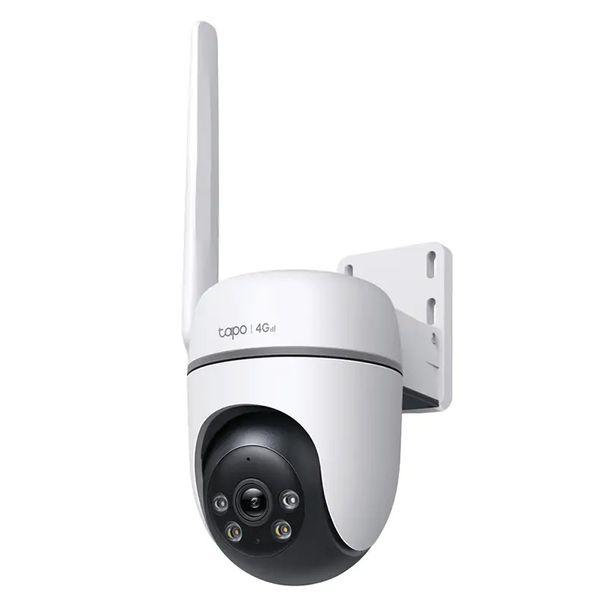

TP-Link TC40GW Outdoor Pan/Tilt 4G LTE Surveillance Camera

Image Sensor

1/2.9” CMOS Sensor

Lens

Focal Length: 3.17 mm

Aperture: F1.65

Field of View: 122° (Diagonal), 105°(Horizontal), 59°(Vertical)

Motion Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 60° (130° Tilt Coverage)

Night Vision

850 nm IR LED (98 ft / 29.9 m), starlight color night vision

Interface & Button

1× DC Port

1× Ethernet Port, PoE

1× RESET Button

1× MicroSD Card Slot (Up to 512GB)

1× Nano-SIM Card Slot

VIDEO & AUDIO

Maximum Resolution

1920 × 1080 px

Frame Rate

30 fps

Video Compression

H.264

Live View

Yes

Audio Input & Output

Built-in Microphone and Speaker

Audio Communication

Two-Way Audio with Noise Cancellation

Siren Volume

99 dB  (Level measured at   4-inch/10-cm distance)

STORAGE

Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

* microSD card needs to be purchased separately.

Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)

* Subscribe: https://www.tapo.com/tapocare/

DETECTION and NOTIFICATIONS

AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Tamper Detection

Line-Crossing Detection

Meow Detection

Bark Detection

Glass-Breaking Detection

Activity Zones

Yes

Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)

NETWORK

Network Connectivity

3G/4G LTE/LAN Cable

RTSP

Yes

ONVIF

Yes

4G

Frequency

LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41

POWER

Power Source

12V DC Power Adapter

PoE: 802.3 af/at

Input Voltage

100-240 V, 50/60 Hz

Output Voltage

DC Power:12V, 1A

GENERAL

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

IP66

System Requirements

Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher

Mounting Options

Ceiling-Mounted

Wall-Mounted

Pole-Mounted (Pole-Mounting loops required but not included)　

Operating Temperature

-30℃~60℃

Storage Temperature

-40℃~60℃

Operating Humidity

10%~90% RH, Non-condensing

Storage Humidity

0~90% RH, Non-condensing

Dimensions

Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm)

Camera Dimensions with included antennas and bracket:

5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm)

Package Contents

TC40GW Camera

Detachable Antenna

DC Power Adapter

Mounting Template

Mounting Bracket

Mounting Anchors

Bracket Screws

Mounting Screws

Waterproof Seal

Waterproof Cable Attachments

Quick Start Guide

Certifications

CE,NTRA,RCM,VCCI,NCC,BSMI,ROHS
