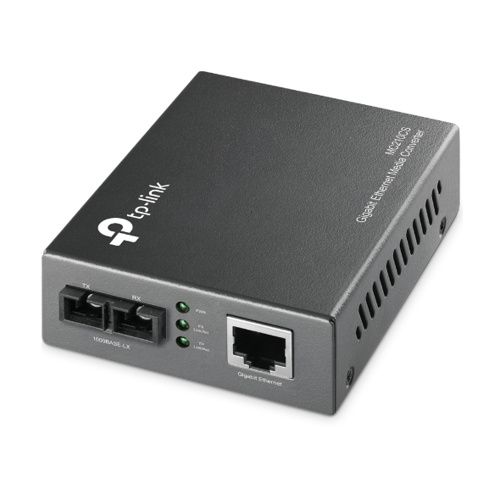

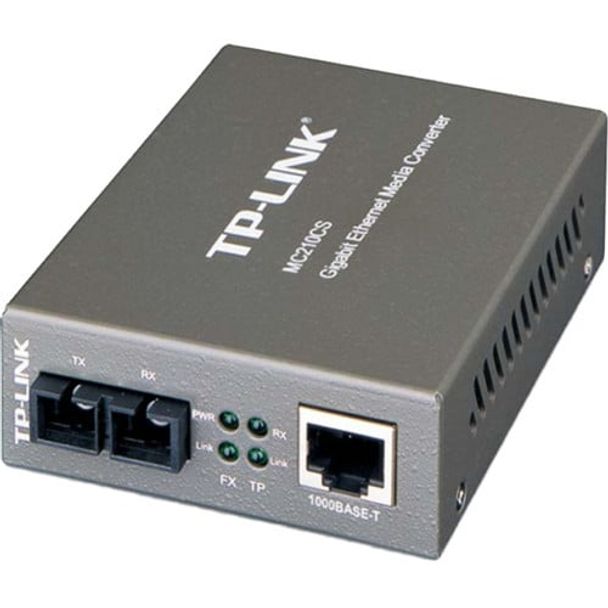

TP-Link TL-MC210CS Gigabit Single-Mode Media Converter
Model
TL-MC210CS
| Location | Availability |
|---|---|
Online (Delivery) | In Stock |
Notting Hill (Pickup) | In Stock |
Preston (Pickup) | Available in 24 Hours |
West Melbourne (Pickup) | In Stock |
$35.00
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa.
Gigabit Single-Mode Media Converter MC210CS
- 10/100/1000Mbps Auto-Negotiation RJ45 port supporting Auto-MDI/MDIX
- Complies with IEEE 802.3ab and IEEE 802.3z
- Extends fiber distance up to 15km(9.3 miles)
What This Product Does
The MC210CS is a media converter designed to convert 1000BASE-LX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data. Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers (9.3 miles).
| MEDIA CONVERTER & MODULE | |
|---|---|
| Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z |
| Basic Function | Extends fiber distance up to 15km (9.3 miles) |
| Ports | 1 x 1000M SC/UPC port 1 x 10/100/1000M RJ45 port (Auto MDI/MDIX) |
| Wave Length | 1310nm |
| Network Media 1000BASE-LX | Single-mode Fiber |
| Network Media 1000BASE-T | UTP category 5, 5e cable (maximum 100m) EIA/TIA-568 100Ω STP (maximum 100m) |
| LED Indicators | PWR, Link/Act |
| Dimensions (W*D*H) | 3.7 x 2.9 x 1.1 in. (95 x 73 x 27 mm) |
| Power Supply | External Power Adapter |
| Max Power Consumption | 1.8W |
| Safety & Emission | FCC, CE, RoHS |
| Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
