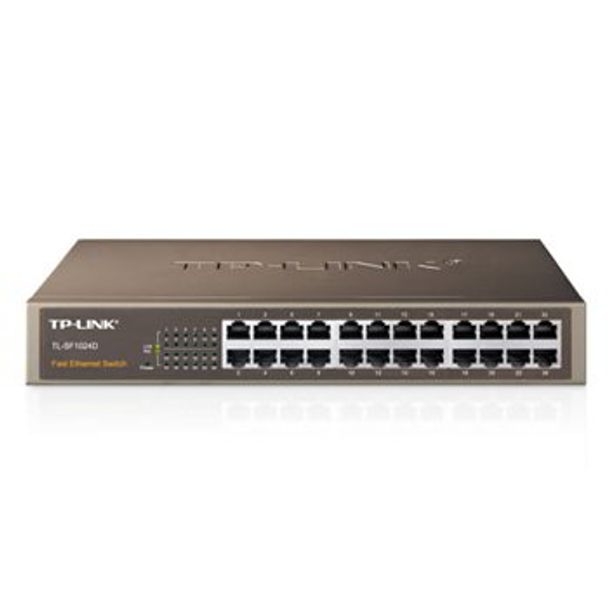

TP-Link TL-SF1024D 24 Port 10/100Mbps Rackmount Switch - TL-SF1024D
Location | Availability |
---|---|
Online (Delivery) | Available from Supplier (2 to 3 Working Days) |
Notting Hill (Pickup) | Available from Supplier (2 to 7 Working Days) |
Preston (Pickup) | Available from Supplier (2 to 7 Working Days) |
West Melbourne (Pickup) | Available from Supplier (2 to 7 Working Days) |
- 24 10/100M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 13-inch steel case.
What This Product Does
The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
High Performance
The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.
TP-LINK Green Technology
This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
Features
- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly without disturbing your family
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
Interface | 24 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX) |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m) |
Dimensions (W X D X H) | 11.6*7.1*1.7 in. (294*180*44 mm) |
Fan Quantity | Fanless |
Power Supply | 100-240VAC, 50/60Hz |
PERFORMANCE | |
---|---|
Switching Capacity | 4.8Gbps |
MAC Address Table | 8K |
Packet Forwarding Rate | 3.57Mpps |
Green Technology | Innovative energy-efficient technology saves power up to 40% |
Transfer Method | Store-and-Forward |
OTHERS | |
---|---|
Certification | FCC, CE, RoHS |
Package Contents | 24-Port 10/100Mbps Desktop/Rackmount Switch Power Cord Installation Guide Rackmount Kit Rubber Feet |
System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7 or Windows 8, MAC® OS, NetWare®, UNIX® or Linux. |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
